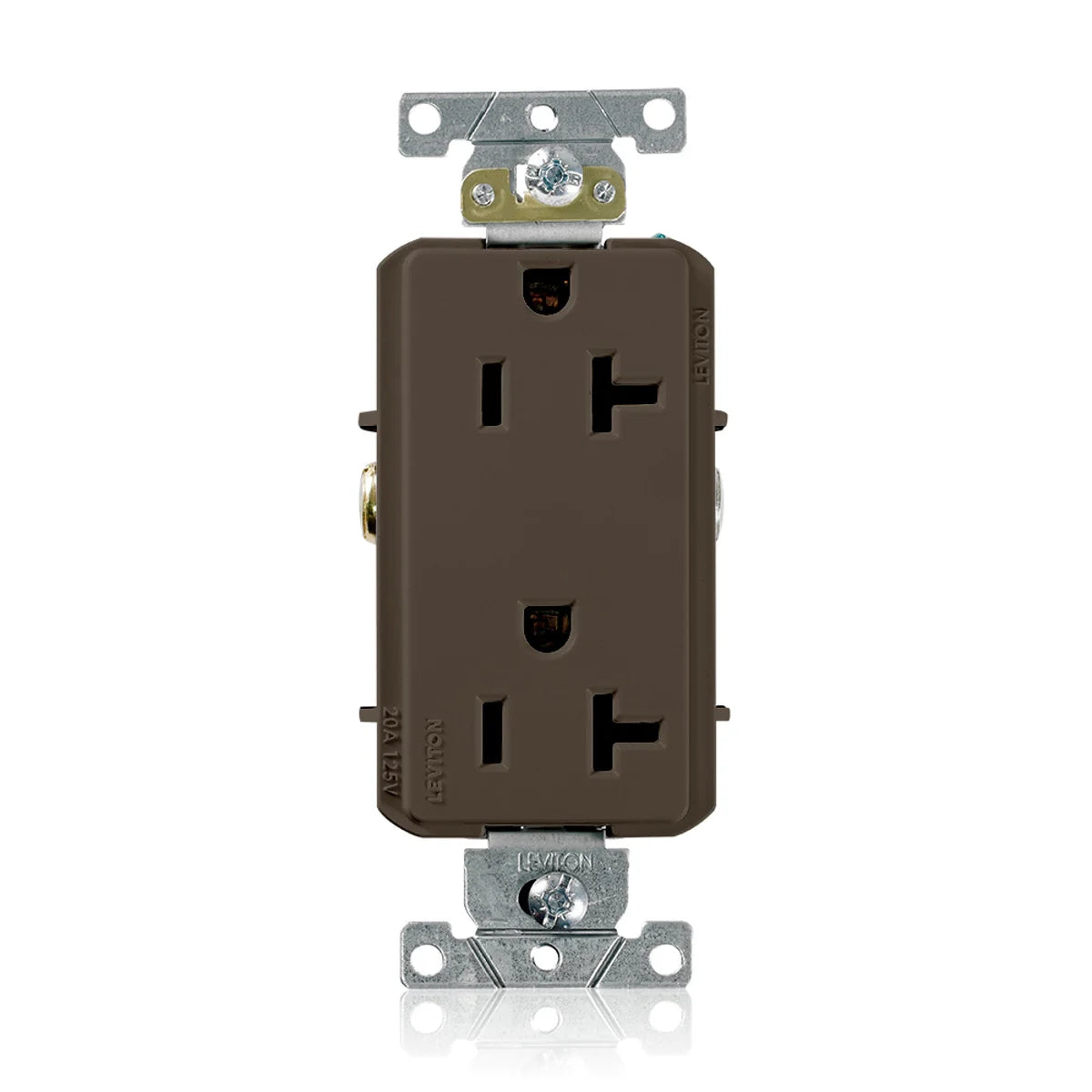

Leviton 16352 20 Amp 125 Volt NEMA 5-20R 2P 3W Decora Plus Duplex Receptacle

Product Description

The Leviton 16352 is a 20 Amp, 125 Volt Decora Plus Duplex Receptacle designed for commercial applications. It features a NEMA 5-20R configuration and is suitable for various environments. This receptacle is grounded and offers back and side wiring options for easy installation.

• 20 Amp service rating
• Made from durable thermoplastic
• Designed for wall mounting

Product Highlights

This receptacle is ideal for use in offices, schools, and hospitals. It is designed for easy wiring and robust performance, making it a reliable choice for electrical contractors.

Product Information

Standard Information

• Catalog Number: 16352
• Manufacturer: Leviton

Technical Specifications

• Amperage Rating: 20
• Voltage Rating: 125
• Color: Brown
• Number of Outlets: 2
• Number of Wires: 3
• Number of Poles: 2
• Material: Thermoplastic
• Connection Type: Back and Side Wired
• NEMA Rating: 5-20R
• Temperature Rating: -40 to +60 DEG C
• Size: 46 H x 1.31 W x 1.14 D inches
• Cross Reference Products: Bryant DRS20, Eaton WD 6352B, Hubbell Wiring DR20
