Leviton 16352-1PW Decora Plus Duplex Receptacle 20A 125V (Contractor Pack)

Brand: LEVITON
SKU: 16352-1PW
Availability: In Stock

Ships same day if ordered by 12 pm
$36.84
$36.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

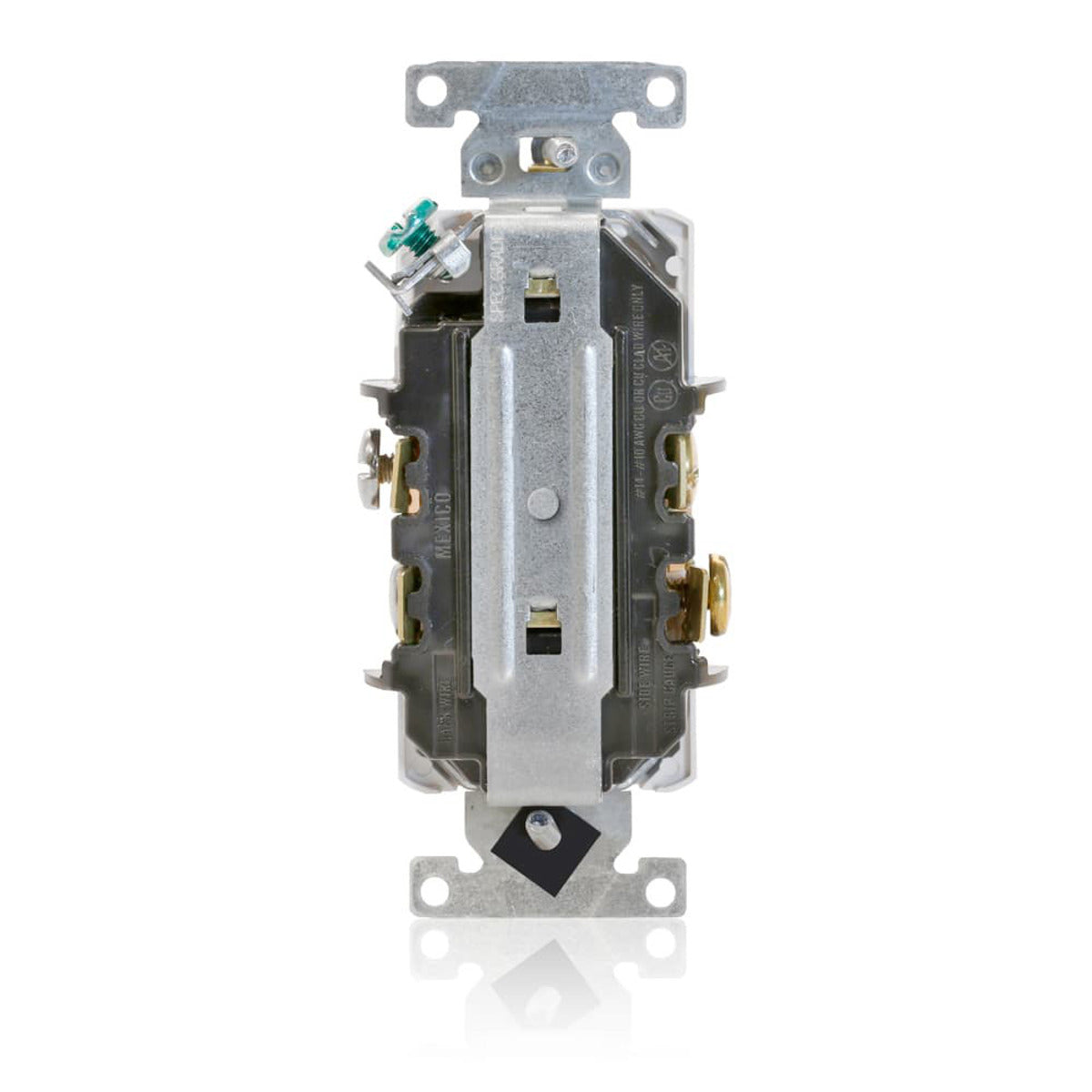

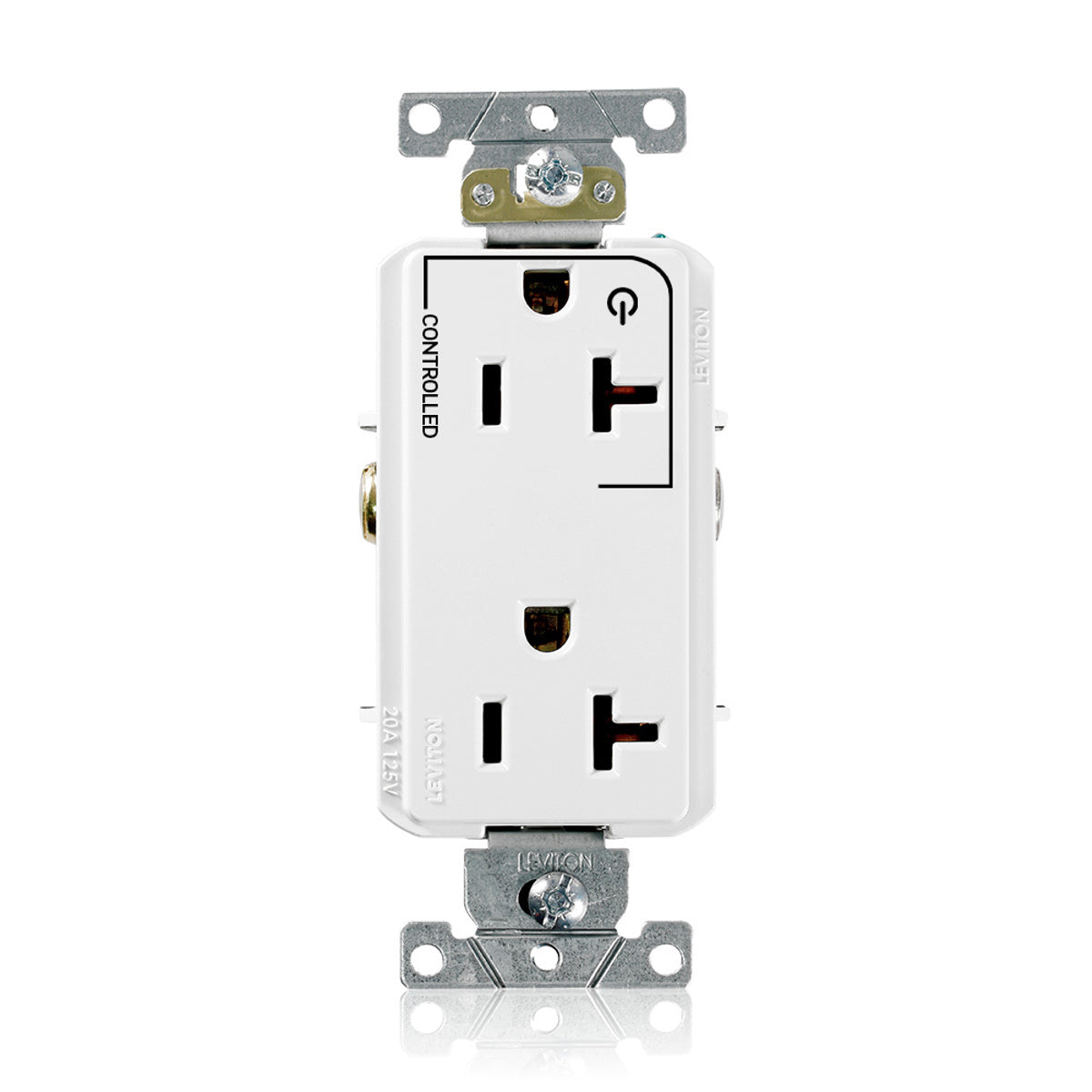

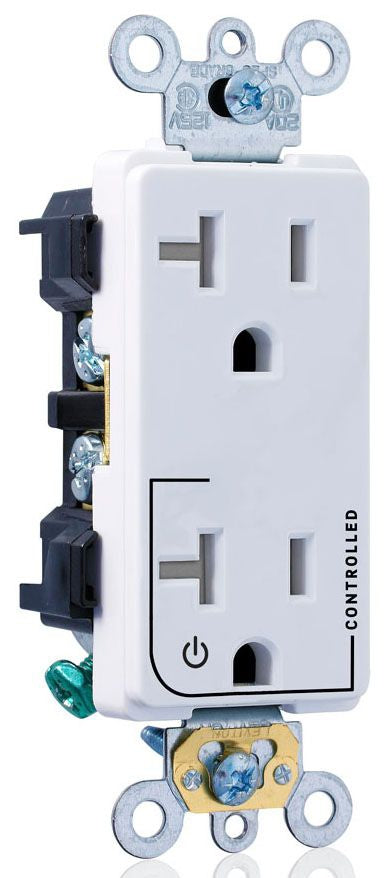

Leviton 16352-1PW is a Decora Plus commercial-grade duplex receptacle rated 20 A, 125 V (NEMA 5-20R) with a hot terminal split and one plug controlled. The device is self-grounding and supports back and side wiring for 2-pole, 3-wire circuits. Constructed of impact-resistant nylon, it meets UL, CSA, and NOM-ANCE standards and is intended for commercial plug load control and general power distribution.

  • 20 A, 125 V NEMA 5-20R duplex outlet with hot terminal split and one outlet marked controlled
  • Self-grounding design with back and side wiring; brass grounding and line components
  • Impact-resistant nylon body; commercial grade with operating temperature -40 to 75 deg C

Product Highlights

Commercial-grade Decora Plus duplex receptacle, 20A/125V, split hot terminal with one controlled outlet, self-grounding, back/side wired, UL/CSA/NOM-ANCE certified.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 16352-1PW
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
Leviton
Brand
Leviton
Manufacturer Part Number
16352-1PW
Amperage
20 A
Voltage
125 V
NEMA Configuration
5-20R
Poles
2
Wires
3
Number of Outlets
2
Features
Hot terminal split with one plug controlled; Smooth face Decora Plus design
Grounding
Self-grounding (brass self-grounding clip)
Wiring Type
Back and side wired
Material
Nylon (body and face); brass grounding and line components
Grade / Application
Commercial / Heavy-duty industrial specification grade
Operating Temperature
-40 to 75 deg C
Standards and Certifications
UL 498; CSA C22.2 No. 42; NOM-ANCE; ANSI C73; NEMA WD-1 & WD-6
Country of Origin
Mexico
UPC
078477704851
Dimensions
4.06 in H x 1.52 in W x 1.14 in D
Weight
0.22 lbs per each
Horsepower Rating
1 hp
Dielectric Strength
Withstands 2000 V per UL498
Terminal Accommodation
14-10 AWG
Termination
Back or side wire; terminal clamp allows solid or stranded building wire
Screw Terminal Torque
14-18 in-lbs
RoHS Compliant
Yes
