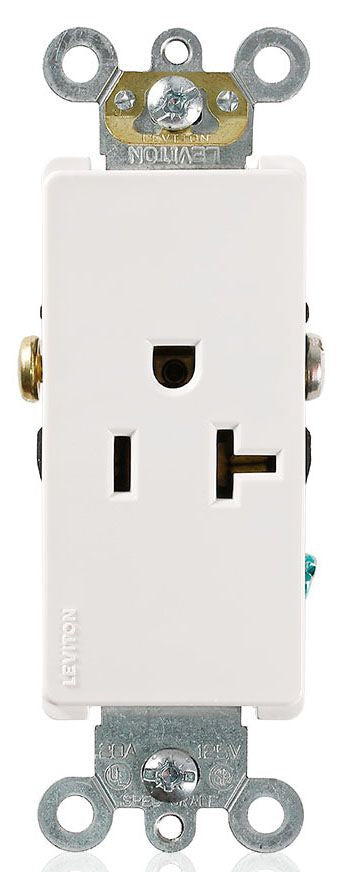

Leviton 16351-w 20A 125V Nema 5-20R Decorator Receptacle White

Product Description

The LEVITON 16351-w is a single Decorator-style straight-blade receptacle rated for 20 amps at 125 volts in a NEMA 5-20R configuration. Built from impact-resistant thermoplastic nylon, it is designed for commercial and heavy-duty applications where durability and code compliance matter. The 2-pole, 3-wire self-grounding design supports both back and side wiring, giving electricians flexibility during rough-in and finish work. Approvals include UL 498, CSA, and NOM 057. The brass contact material and zinc-plated steel strap contribute to long-term connection integrity under sustained load.

This receptacle is suited for commercial construction, light industrial settings, and heavy-duty residential installations where a 20-amp circuit is required. The Decorator form factor fits standard Decorator-style wallplates, making it a common choice for office buildouts, retail spaces, and anywhere a clean, modern outlet appearance is specified alongside a 20-amp circuit. Licensed electricians install this device during finish electrical work on 20-amp branch circuits per NEC requirements.

Key Features

• 20-amp, 125-volt rating with NEMA 5-20R straight-blade configuration
• Impact-resistant thermoplastic nylon body for commercial-grade durability
• Self-grounding design simplifies installation in metal device boxes
• Back and side wiring options accommodate varied rough-in conditions
• Brass contacts and zinc-plated steel strap for reliable, low-resistance connections
• UL 498, CSA, and NOM 057 listed for broad code compliance

Compatibility

Designed as a commercial-grade replacement or new-installation receptacle for standard 20-amp, 125-volt branch circuits using the NEMA 5-20R configuration. Fits standard Decorator-style wallplates.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify with a voltage tester before handling any wiring. The self-grounding feature is effective only when the device is installed in a properly grounded metal electrical box. Confirm circuit ampacity and wire gauge match the 20-amp rating of this receptacle before completing the installation.

Technical Specifications

• Configuration: NEMA 5-20R
• Voltage Rating: 125 volts
• Current Rating: 20 amps
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Self Grounding
• Wiring: Back and Side
• Material: Thermoplastic Nylon
• Contact Material: Brass
• Strap Material: Zinc Plated Steel
• Grade: Commercial, Heavy Duty
• Temperature Rating: -40 to 60 degrees C
• Power Rating: 1 HP
• Color: White
• Approvals: UL 498, CSA, NOM 057
• Applicable Standards: ANSI C73, NEMA WD-6

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16351-w
