Product Description

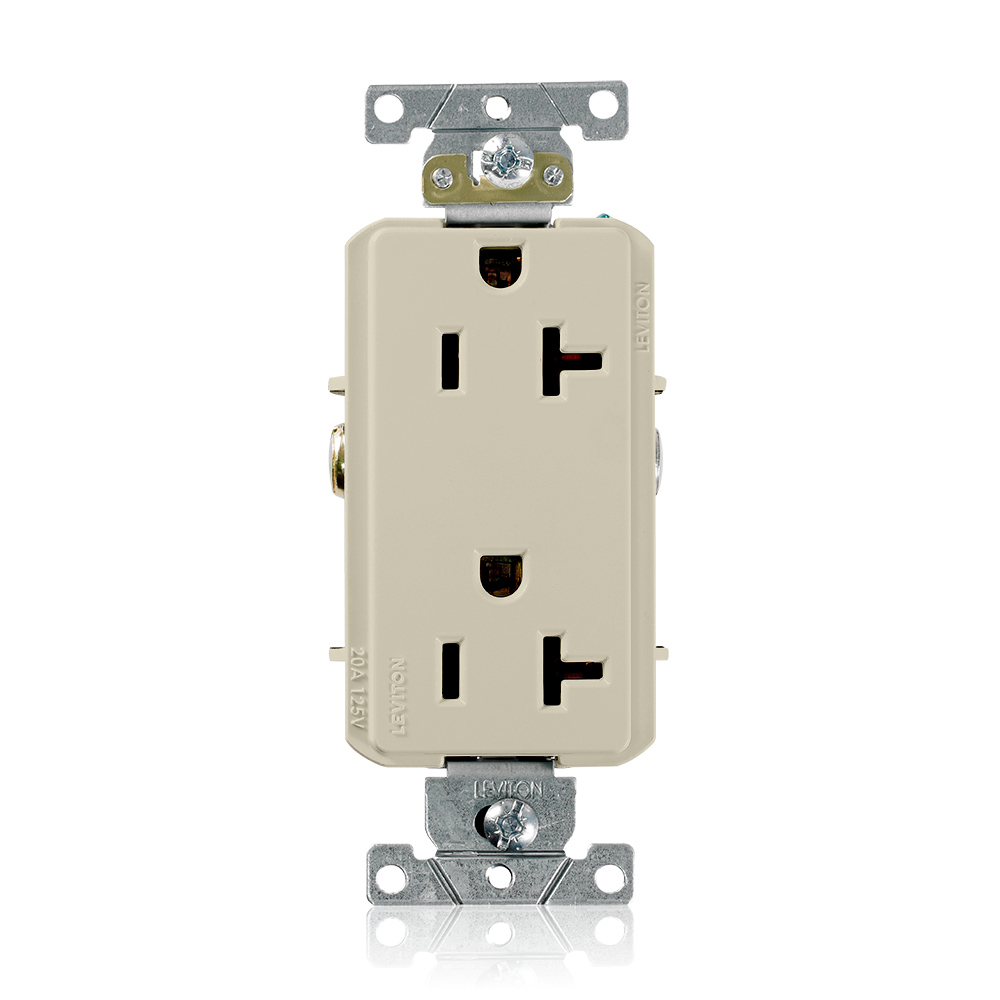

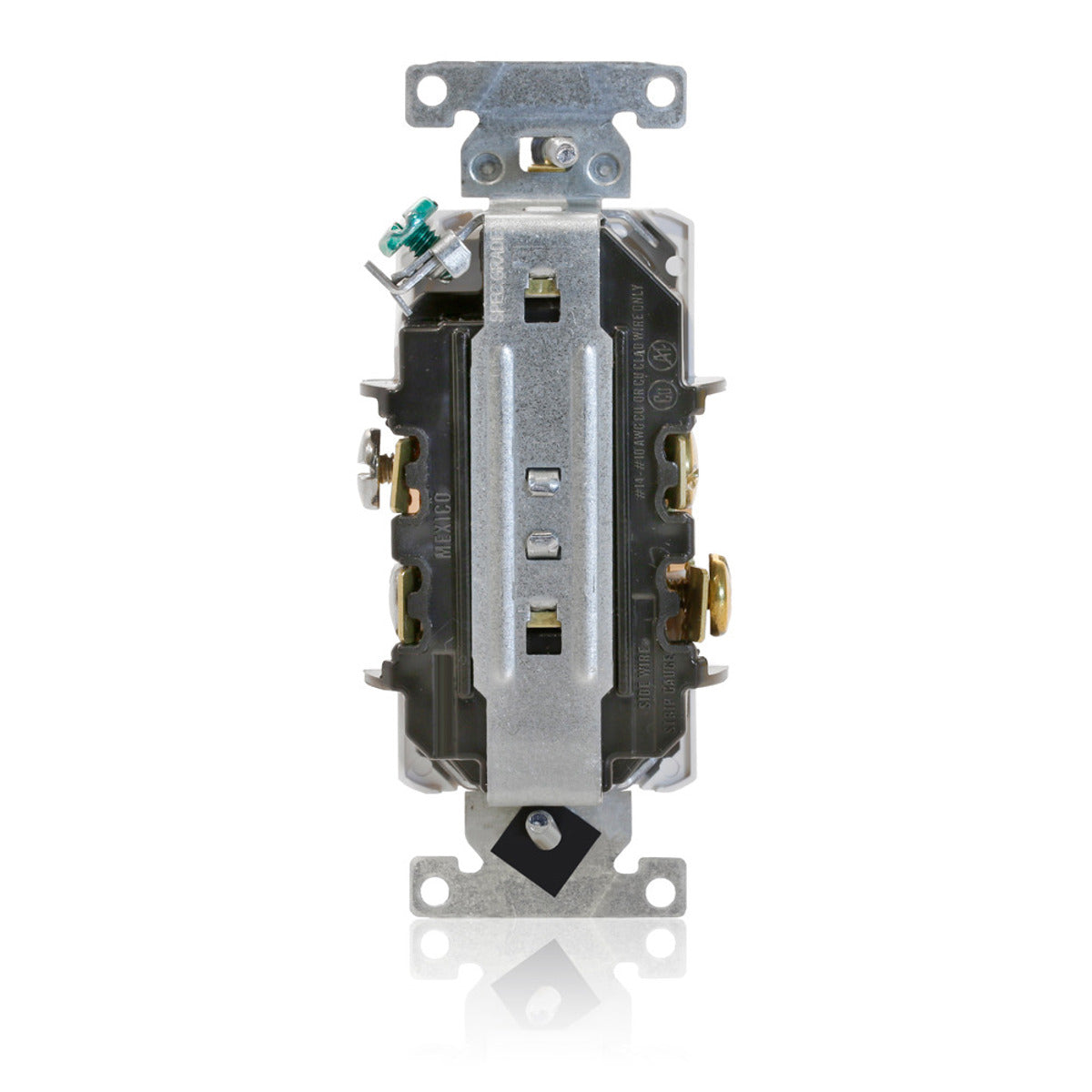

The Leviton 16342-I is a straight blade duplex receptacle designed for 125 volt and 20 amp applications. It features a NEMA 5-20R configuration and is suitable for heavy-duty use in commercial settings.
- Durable thermoplastic nylon construction
- Self-grounding design for safety
- Compatible with side wired installations
Product Highlights
The Leviton 16342-I provides reliable performance in demanding environments.
Product Information
Standard Information
-
Brand: Leviton
-
Catalog Number: 16342-I
Technical Specifications
-
Voltage Rating: 125 Volt
-
Amperage Rating: 20 Amp
-
Number of Poles: 2
-
Number of Wires: 3
-
NEMA Rating: 5-20R
-
Horsepower: 1 hp
-
Temperature Rating: -40 to 60 degrees C
-
Size: 46 H x 1.52 W x 1.14 D inches
-
Material: Thermoplastic
-
Country of Origin: Mexico
-
Standards: UL Listed, ANSI C-73, CSA C22.2 No. 42
-
Warranty Length: 10 years
-
Environmental Conditions: Rated V-2 per UL94
