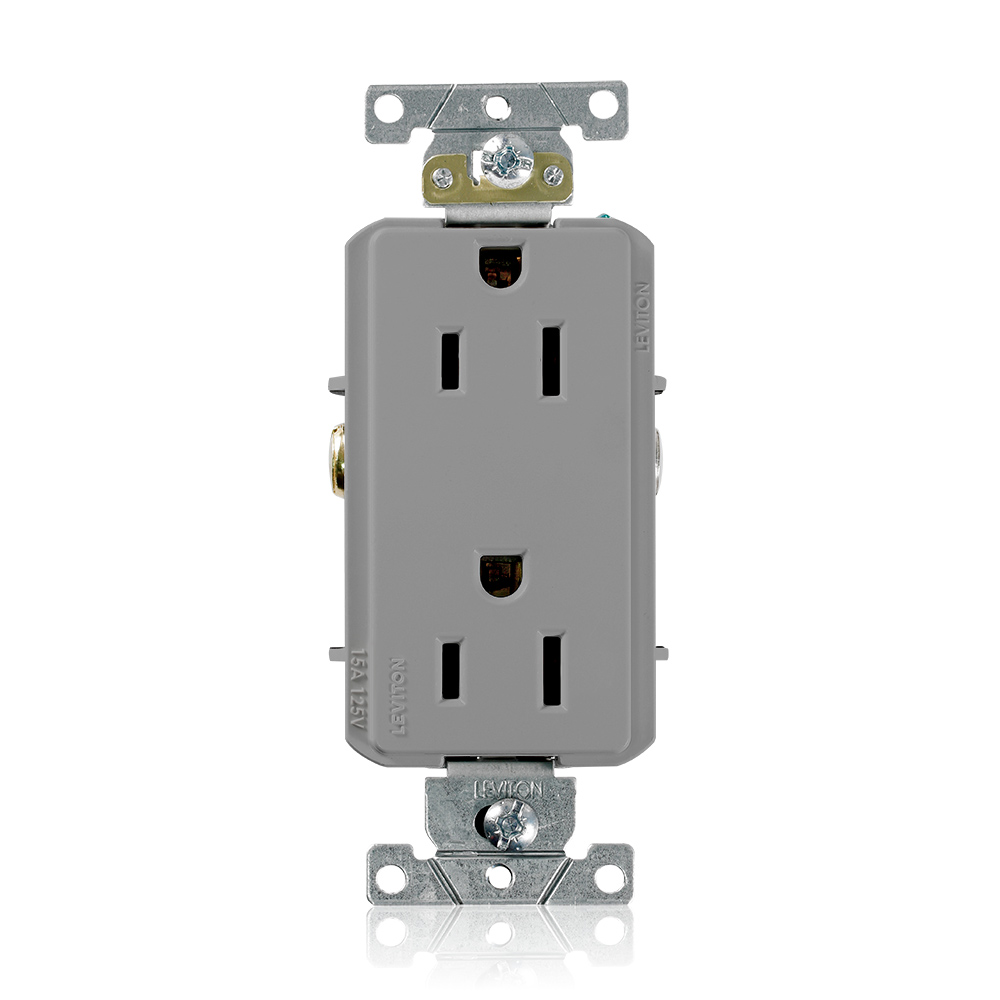

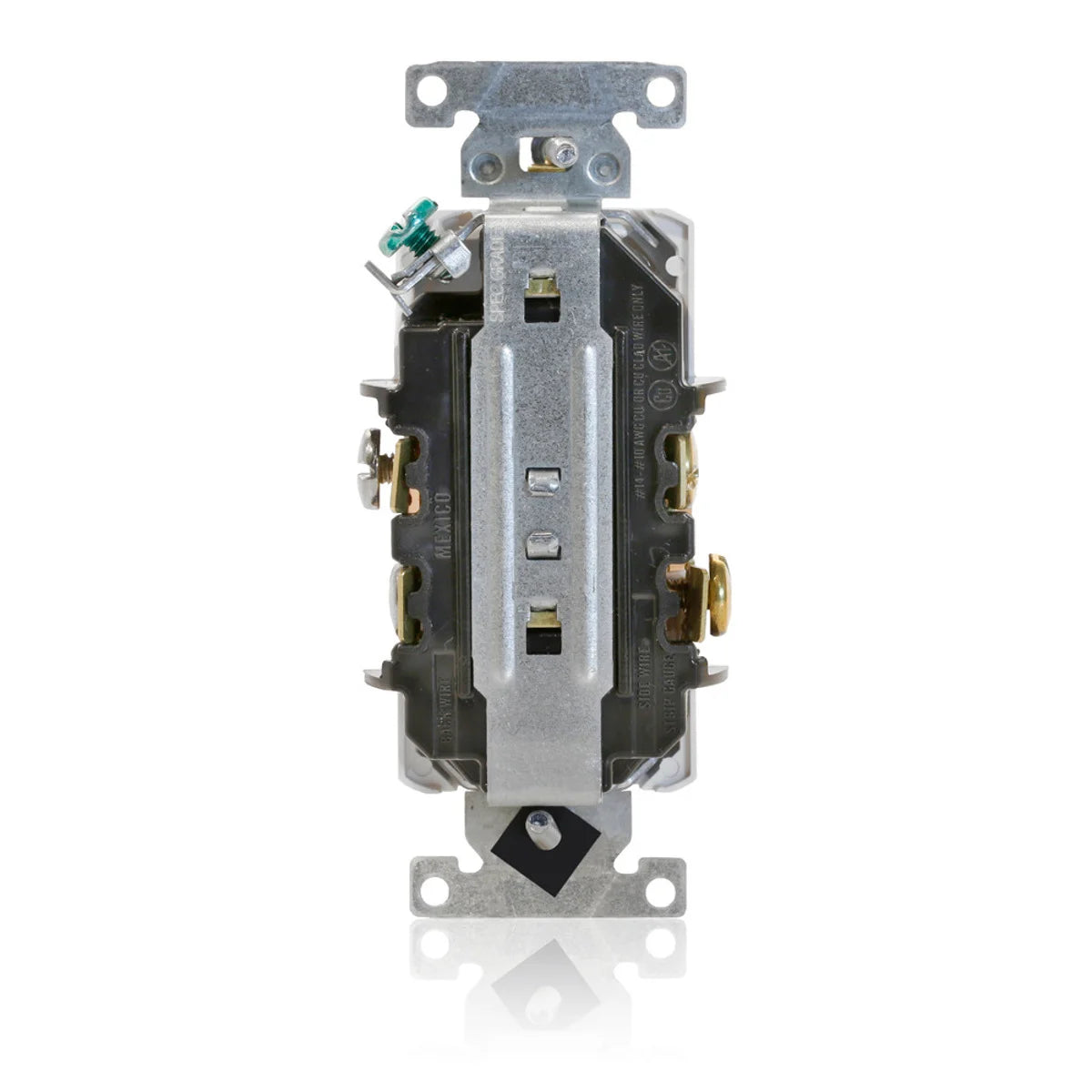

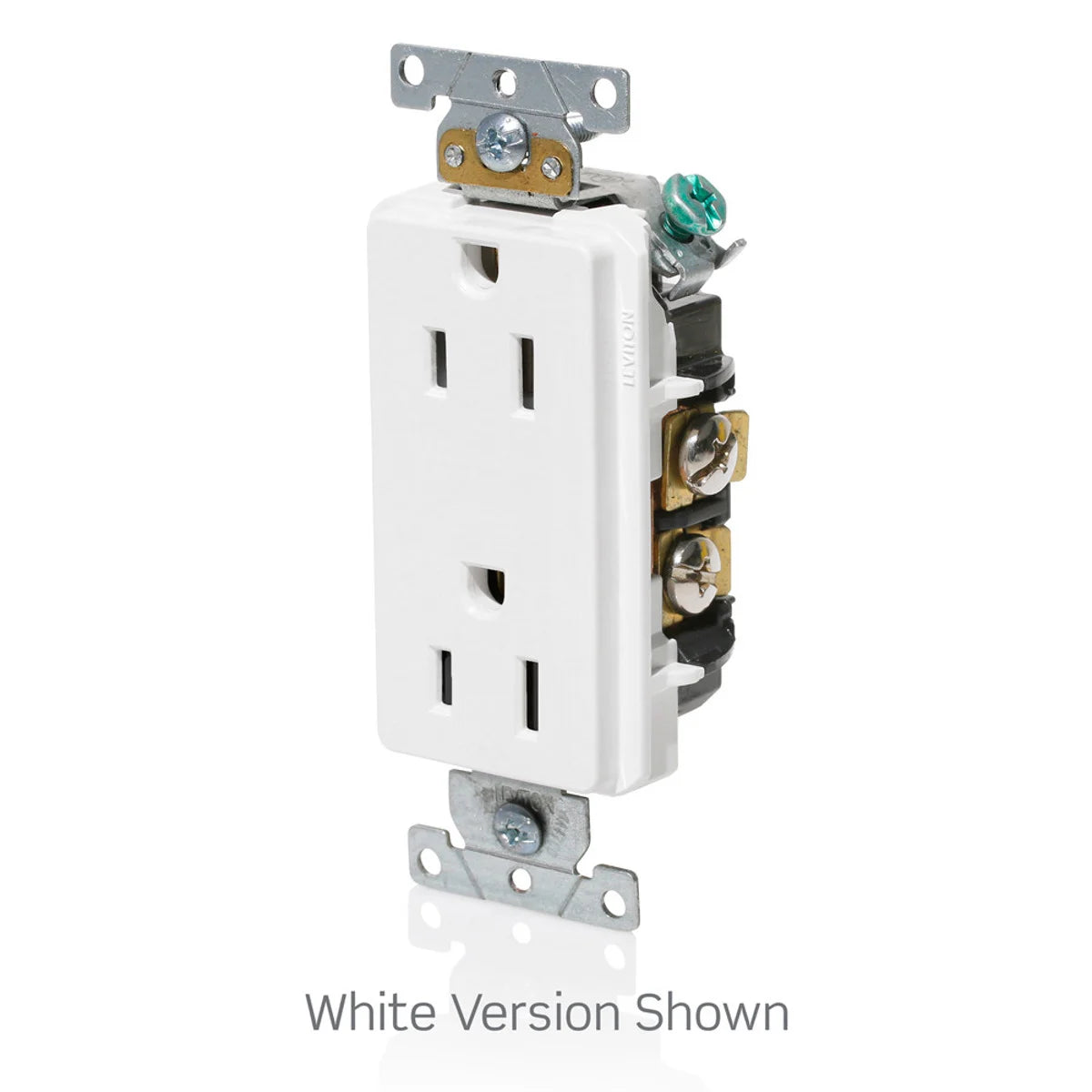

Leviton 16252-GY Duplex Receptacle 15 Amp 125 Volt NEMA 5-15R

Product Description

The Leviton 16252-GY Duplex Receptacle provides a reliable solution for electrical connections. It is rated for 15 amps and works with 125 volts. Designed for commercial use, this receptacle is ideal for locations like schools, hospitals, and hotels.

• Self-grounding design for added safety
• Constructed from durable thermoplastic material
• Back and side wiring options for versatile installations

Product Highlights

This receptacle is suitable for high-demand environments, ensuring robust performance over time.

Product Information

Standard Information

• Catalog Number: 16252-GY
• Brand: Leviton

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Material: Thermoplastic
• Type: Heavy Duty Self Grounding
• Number of Poles: 2
• Number of Wires: 3
• Color: Gray
• NEMA Rating: 5-15R
• Dimensions: 4.06 inches H x 1.52 inches W x 1.14 inches D
• Temperature Rating: -40 to 60 degrees C
• Grounding: Self-Grounding
• Certification: UL 498, CSA C22.2 No. 42, NOM 057
