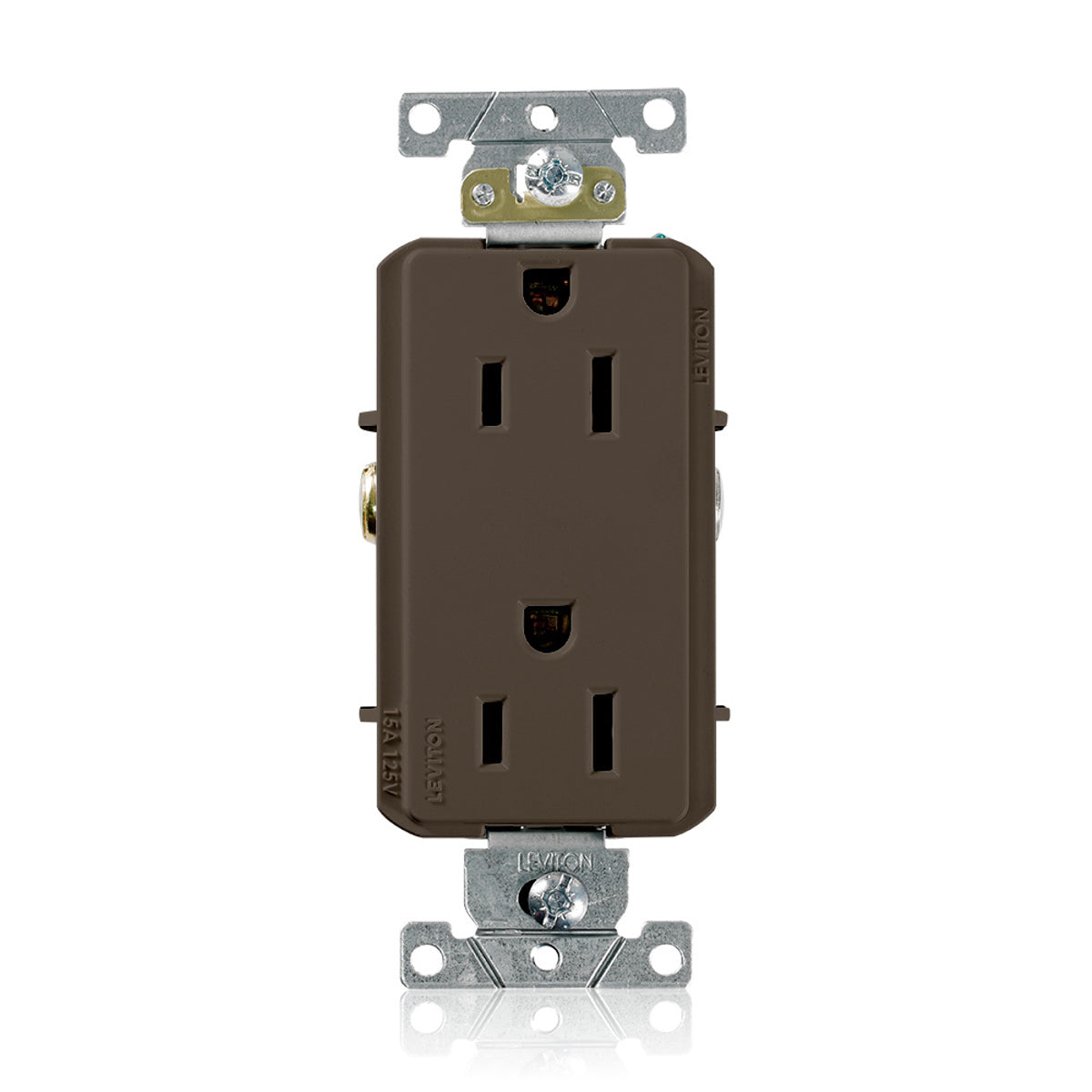

Leviton 16242 Decora Plus Duplex Receptacle 15 Amp 125 Volt NEMA 5-15R

Product Description

The Leviton 16242 is a duplex receptacle designed for commercial applications. It operates at fifteen amperes and one hundred twenty-five volts, making it suitable for a wide range of power needs. This receptacle is self-grounding and features a thermoplastic construction for durability.

• Duplex receptacle with two outlets
• Temperature rating of negative forty to sixty degrees Celsius
• NEMA 5-15R rated for safety

Product Highlights

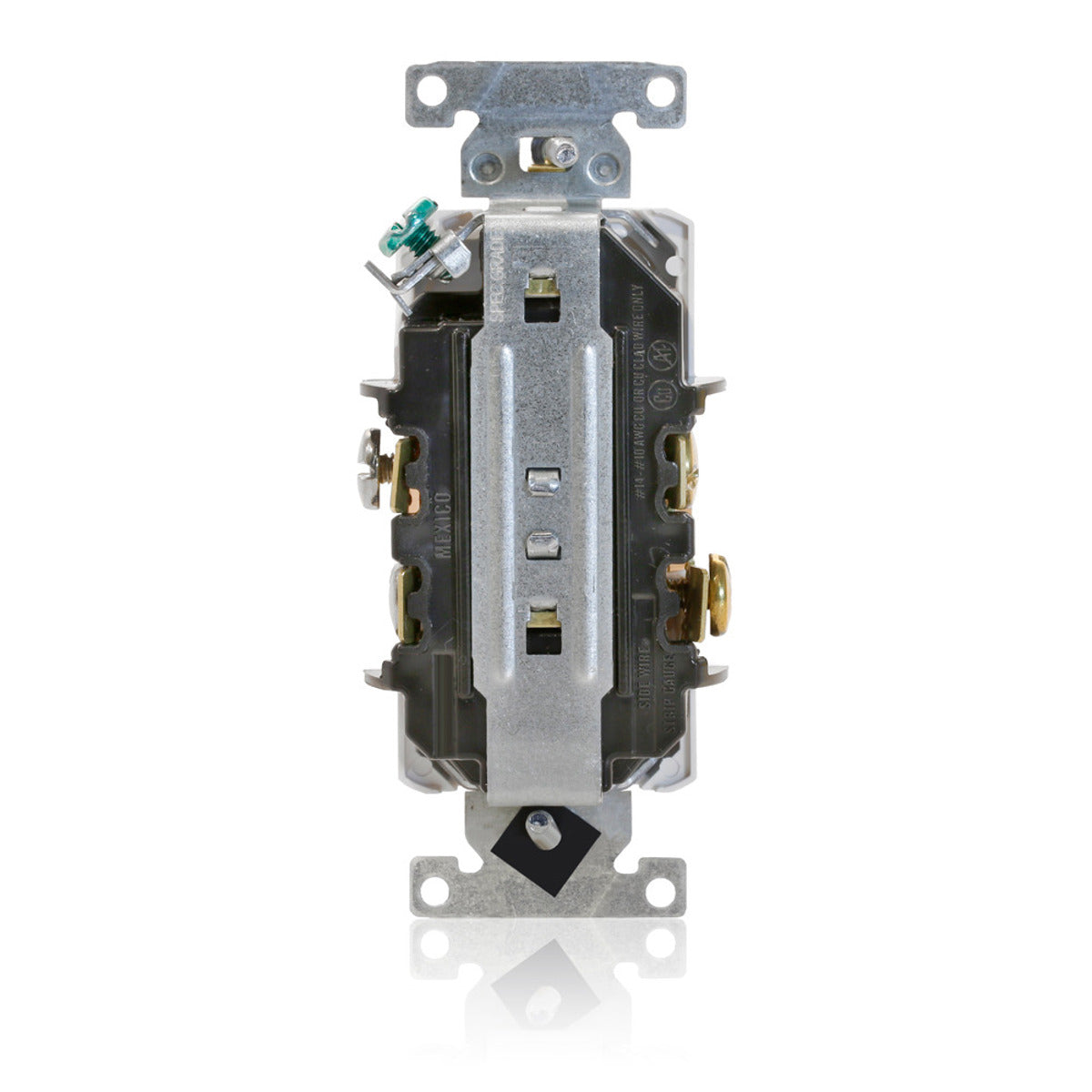

This receptacle is ideal for commercial use, ensuring reliable power distribution. It features back and side wire connections for easy installation.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer: Leviton

Technical Specifications

• Catalog Number: 16242
• Color: Brown
• Material: Thermoplastic
• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• NEMA Rating: 5-15R
• Temperature Rating: Negative forty to sixty degrees Celsius
• Dimensions: Four point zero six inches height x one point five two inches width x one point one four inches depth
• Wire Size: 14-10 AWG
• Number of Outlets: 2
• Number of Wires: 3
• Connection Type: Side Wired
• Mounting: Wall Box
• Environmental Conditions: Flammability rated V-2 per UL94
