Leviton 15D22-UE Female Plug Detachable 150A

Product Description

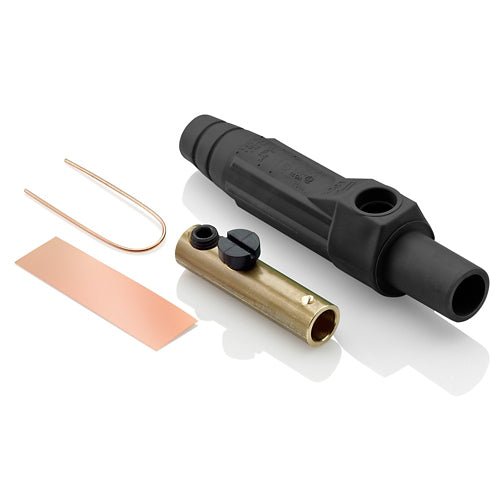

The Leviton 15D22-UE is a 1-pole detachable female taper nose cam plug from the 15 Series, designed for temporary electrical power in indoor and outdoor applications. It supports 600 VAC/VDC and 150 A, accommodating 8 to 2 AWG wire with a setscrew connection.

• Color-coded for easy phase identification
• High conductivity - positive, vibration-proof connection provided by double cam design
• Shatter and crack proof - high durometer thermoplastic vulcanizate (TPV) or neoprene rubber

Product Highlights

Ideal for entertainment, oil and gas, mining, power distribution, and construction sites, it ensures a secure and reliable connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 15D22-UE
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 600 VAC/VDC
• Wire Size: 8 to 2 AWG
• Connection Type: Setscrew
• Contact Material: Brass
• Housing Material: TPV
• Mounting Type: Cable
• NEMA Rating: NEMA 3R
• Series: 15 Series
• Temperature Rating: 86 deg F
• Type: 1-Pole Detachable Female Taper Nose
• Manufacturer: LEVITON
• CSA: C22.2 No 1691
• Cable Range: 8-2 AWG
• Max. Amperage: 150 Amp
• Max. Voltage: 600 Volt
• UL: 1691
• RoHS Compliant: Yes
• Brand: LEVITON
• Contact Type: Plug
• Current Rating: 150 A
• Grade: Industrial
• Manufacturer Part Number: 15D22-UE
• Number of Poles: 1
• Termination: screw
• UPC Code: 078477710418
• UPC: 07847771041
• Rated Voltage: 600V
• Color Family: Black
• No. of Poles: 1
• Color: Black
• Additional Info: RHINO-HIDE 15 SERIES
• Volts: 600V
• Amps / MA: 150A
• Mfg: LEVITON
• Mfg Prod Description: 15D22-UE RHINO-HIDE 15 SERIES FEMALE PLUG BLACK
• Gender: FEMALE
• Product Type: CONNECTOR
• Long Description: 600V BLACK 150A FEMALE
