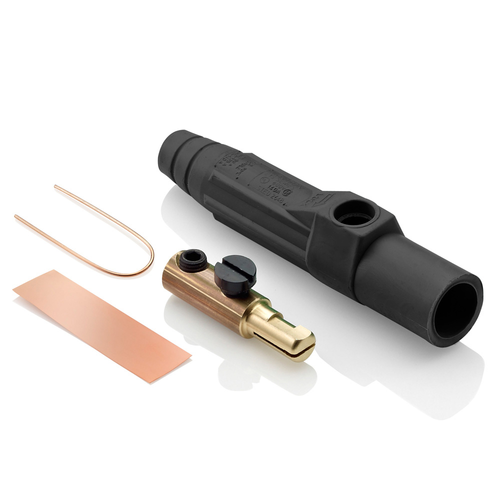

Leviton 15D21-UE 15 Series Cam-Type Male Plug 150A

Product Description

The LEVITON 15D21-UE is a Rhino-Hide Single Pole Cam-Type Connector that supplies temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools. It is NEMA 3R rated for outdoor use when mated. Common applications include entertainment, oil and gas, and mining operations.

• Color-coding provides fast and easy phase identification
• Single Set Screw Connection Type
• Cable Range 8-2 AWG

Product Highlights

The Leviton 15D21-UE Cam-Type Male Plug is ideal for temporary power applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 15D21-UE
• Country of Origin: Mexico

Technical Specifications

• Max. Amperage: 150 Amp
• Max. Voltage: 600 Volt
• CSA: C22.2 No 1691
• Connection Type: Single Set Screw
• RoHS Compliant: FALSE
• Country of Origin: Mexico
• UL: 1691
• Cable Range: 8-2 AWG
• Amps: 125
• Volts AC: 600
• Additional Info: RHINO-HIDE 15 SERIES
• Volts: 600V
• Amps / MA: 150A
• Mfg: LEVITON
• Mfg Prod Description: 15D21-UE RHINO-HIDE 15 SERIES MALE PLUG BLACK
• Mfg Catalog Description1: CABLE RANGE: 8-2 AWG
• Mfg Catalog Description2: SINGLE SET SCREW
• Gender: MALE
• Product Type: CONNECTOR
