Leviton 1453-WCP 3-Way Thermoplastic Non-Grounding Framed Toggle Quiet Switch 120 VAC 12 Amp 1/2 Hp 10 Pack

Product Description

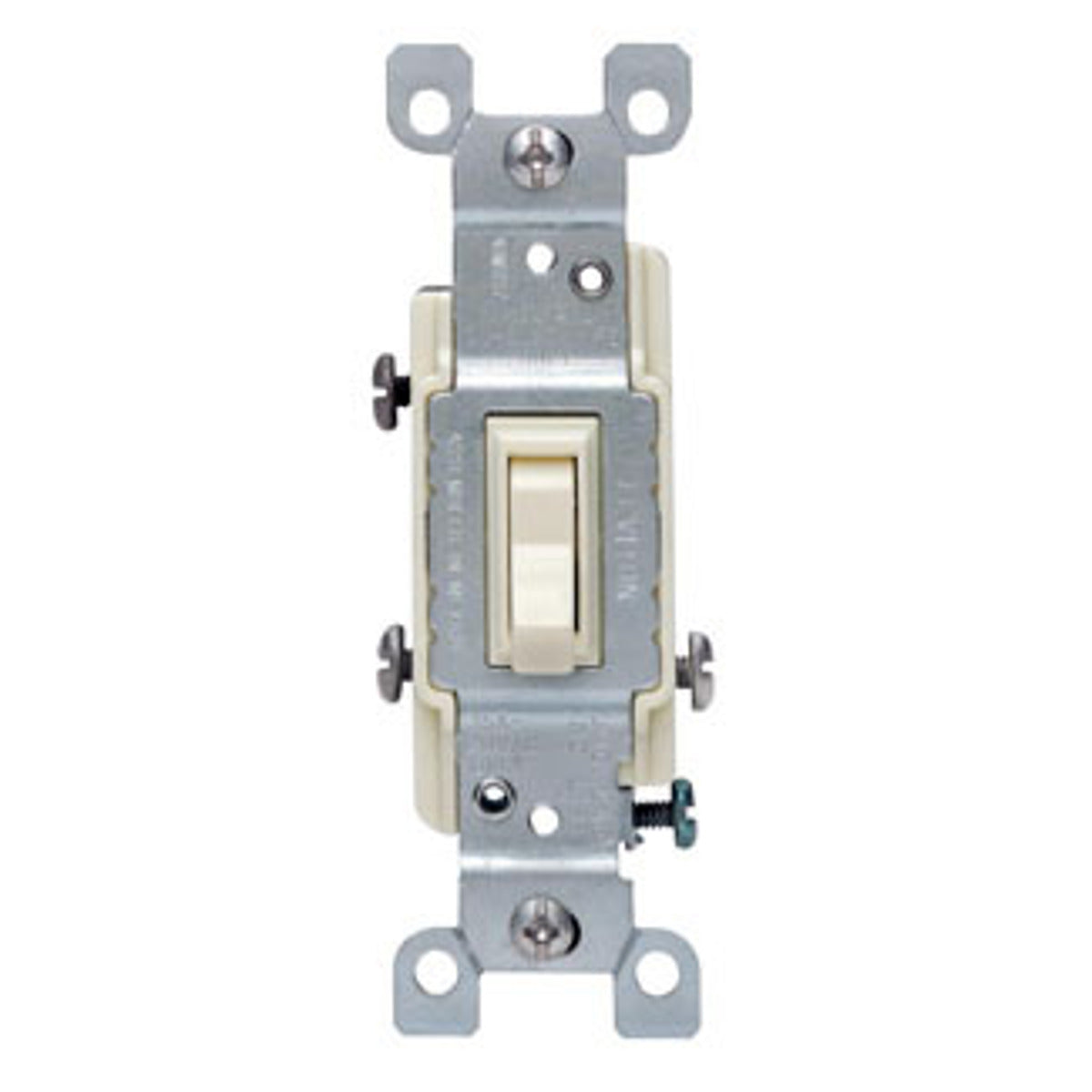

The Leviton 1453-WCP is a residential grade AC quiet switch featuring a tried-and-true toggle design. It is constructed with impact-resistant thermoplastic toggles and frames, ensuring durability. Designed for easy installation, this 3-way switch operates at 120 VAC and handles up to 12 Amps, making it suitable for various residential and commercial applications. It is non-grounding and compatible with a wide range of Leviton wallplates.

• Impact-resistant thermoplastic construction for durability.
• Features large head, hardened triple-drive screws for fast and easy wiring installation.
• Supports both Quickwire Push-In and Side Wired connections for versatile installation.

Product Highlights

This 3-way AC quiet switch offers durable thermoplastic construction and versatile wiring options for residential and commercial use.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1453-WCP
• Country of Origin: United States

Technical Specifications

• Switch Type: 3-Way AC Quiet Toggle
• Input Voltage: 120 Volt
• Body Material: Thermoplastic
• Certifications: CSA Certified (File LR-3413), UL Listed (File E-7458), NOM Certified (057), ARRA, Buy American Act, RoHS Compliant, UL94 V-2 Flammability Rated
• Grounding Type: Non-Grounding
• Sub Brand: Residential Switches
• Power Rating (HP): 1/2 hp
• Application: Commercial
• Mounting: Wallplate
• Connection Type: Push-In and Side Wired
• Operating Temperature: -40 to 65 °C
• Country of Origin: USA
• Grade: Residential
• Actuator Material: Thermoplastic
• Feature: Framed
• Strap Material: Steel
• Terminal Accommodation: Side wiring accepts #10, #12, #14 AWG copper/copper-clad; Quickwire push-in accepts #14 AWG solid copper
• Insulation Resistance: 15 Megaohms
• Operation Mode: OFF-NONE-ON
• Number of Positions: 2
• Circuit Type: 3-way
• Contact Material: Brass
• Current Rating: 12 Amp
