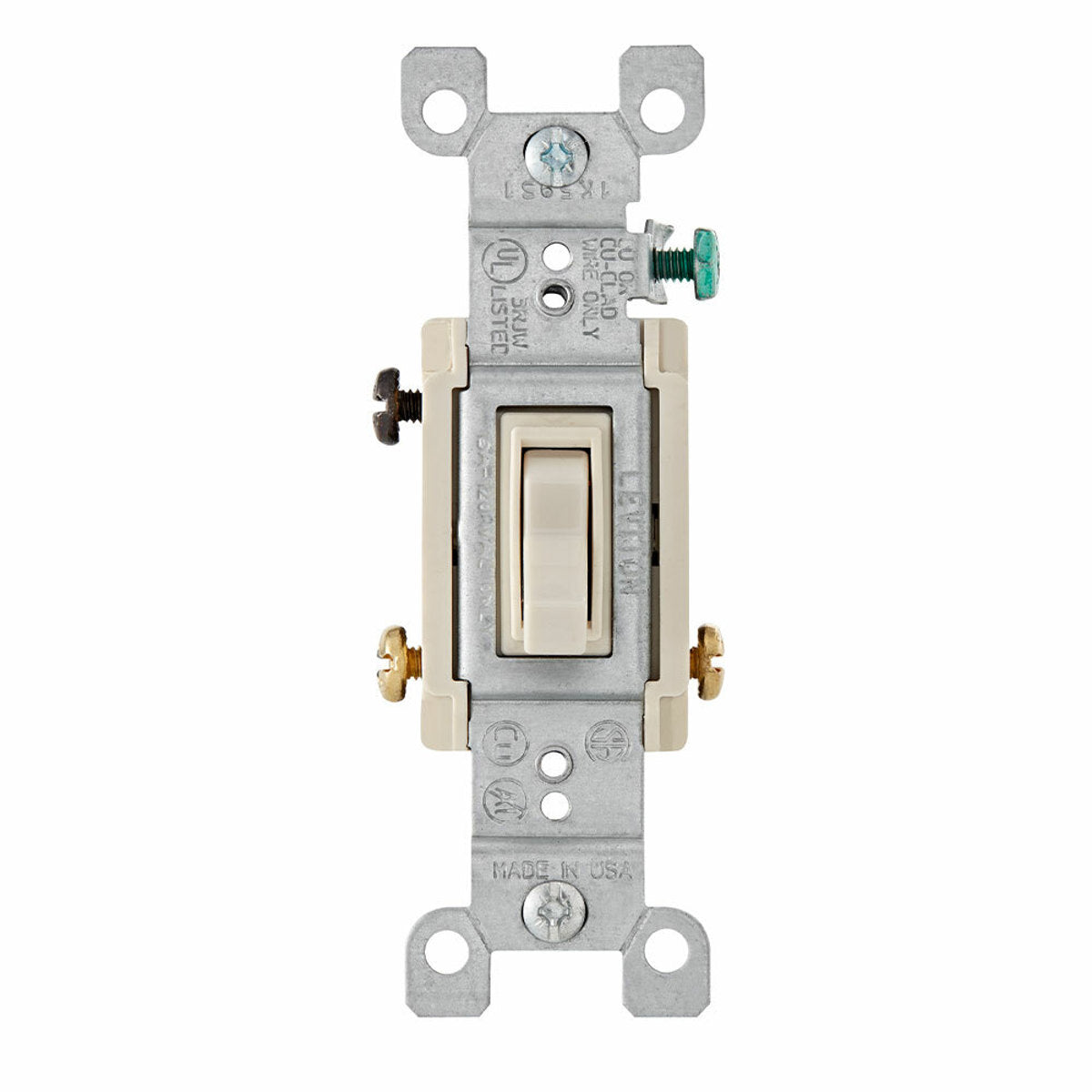

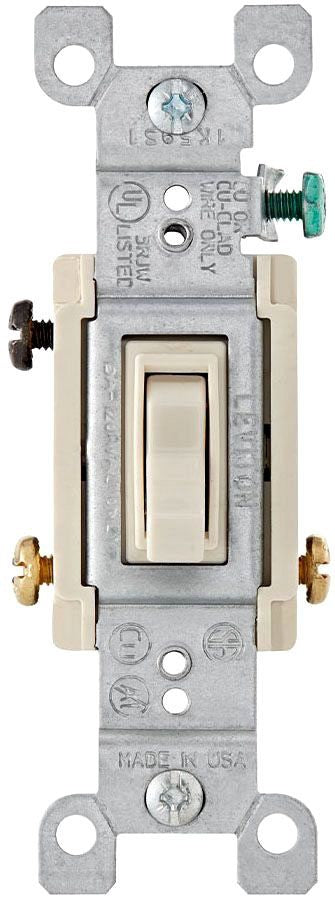

Leviton 1453-2T 3-Way 15A 120V Toggle Switch

Product Description

The LEVITON 1453-2T is a 3-way grounding toggle switch. This AC quiet switch is rated for 15A and 120V and is suitable for residential and commercial applications. It features a thermoplastic body and actuator, quickwire push-in and side wiring for easy installation. The switch is UL listed and CSA/NOM certified.

• AC Quiet Toggle Switch
• Residential Grade
• Quickwire Push-In & Side Wired

Product Highlights

The Leviton 1453-2T is a reliable and easy-to-install toggle switch suitable for various applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1453-2T
• Country of Origin: Please Contact Customer Service

Technical Specifications

• Brand: LEVITON
• MPN: 1453-2T
• Type: 3-Way AC Quiet Switch
• Connection: Side Wired
• Insulation: Thermoplastic
• UNSPSC: 39122211
• Actuator: Cam
• Mounting: Wallplate
• Standard: NOM Certified (057);CSA Certified (File LR-3413);UL Listed (File E-7458)
• Application: Commercial
• Operating Temperature: -40 to +65 DEG C
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Contact Rating: 1/2 (120V);2 (240V)
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Special Features: Grounding; Terminal Screws Accept up to No. 12 AWG Copper or Copper-Clad Wire; L
• Width: 1.31 in
• Height: 4.2 IN
• Product Name: AC Quiet Switch
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• UPC: 078477273128
• GTIN: 00078477273128
• Alternative Part Number: 9271629
• Amperage Rating UOM: A
• Power Rating: 1/2, 2 hp
• Terminal Type: Side Wire
• Power Rating UOM: hp
• Material: Thermoplastic
• Terminal Connection: Quickwire Push-In and Side Wired, Ground Screw
• Temperature Rating: -40 to 65 deg C
• Standards: UL E7458 Listed, CSA LR3413 Certified, NOM 057
• Action: Maintained
• Maximum Load Capacity: 1/2 hp
• Item Type: 3-Way AC Quiet Switch
• Wattage Rating: 0.5 hp
• Number Of Positions: 3
• Housing Material: Thermoplastic
• Current Rating: 15 A
• Actuator Type: Toggle
• Mounting Type: Wall
• Pole: 3
• Feature: Framed
• Body Material: Thermoplastic
• HP Rating: 1/2HP-120V
• Max. Amperage: 12 Amp
• Strap Material: Steel
• Termination: Quickwire Push-In & Side
