Product Description

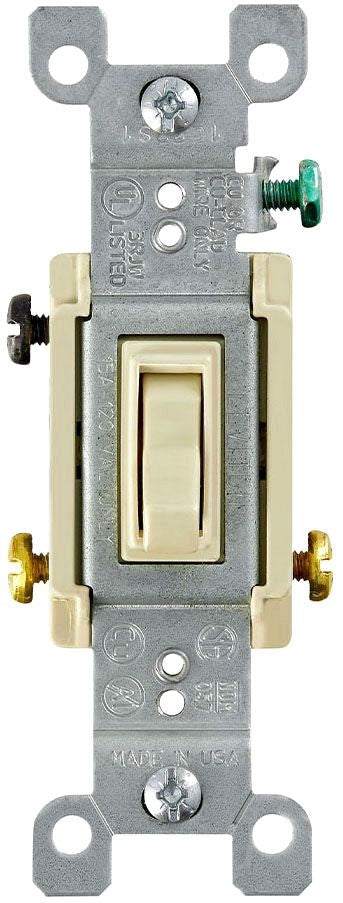

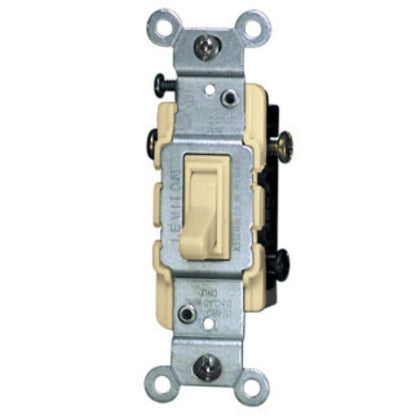

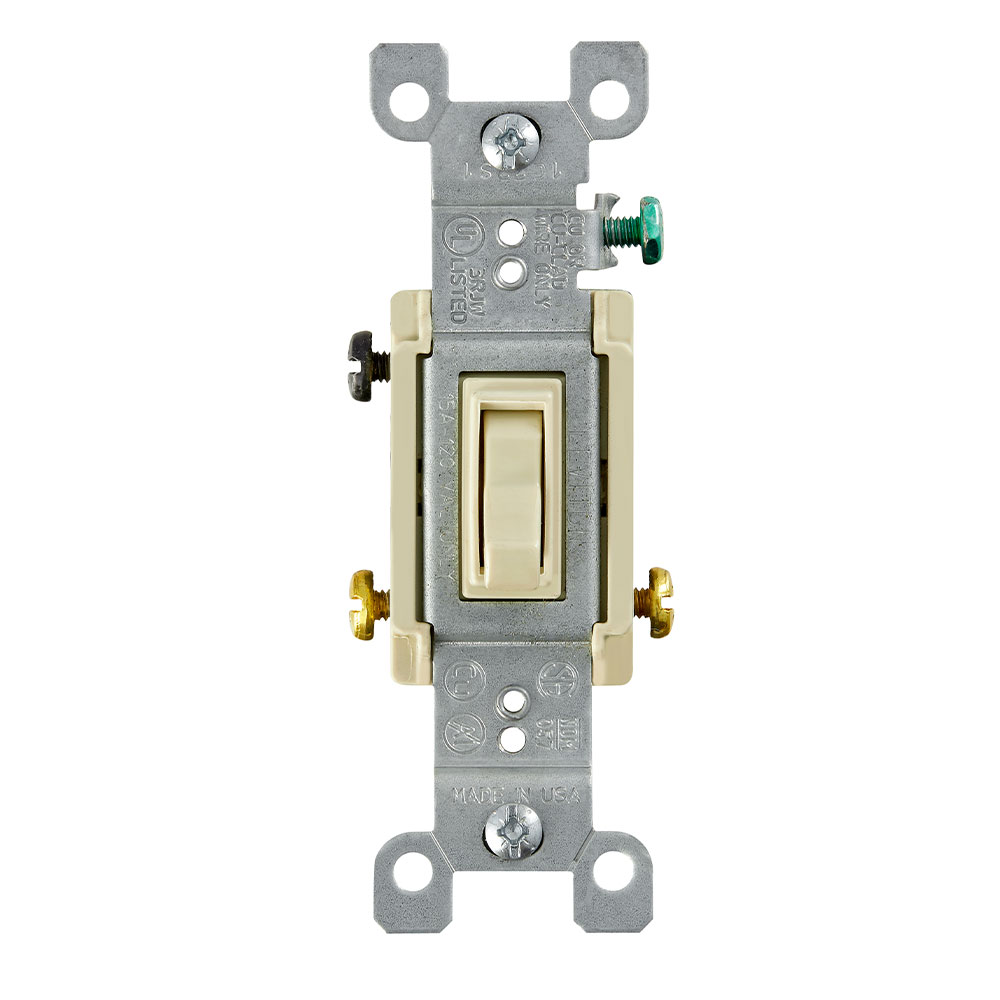

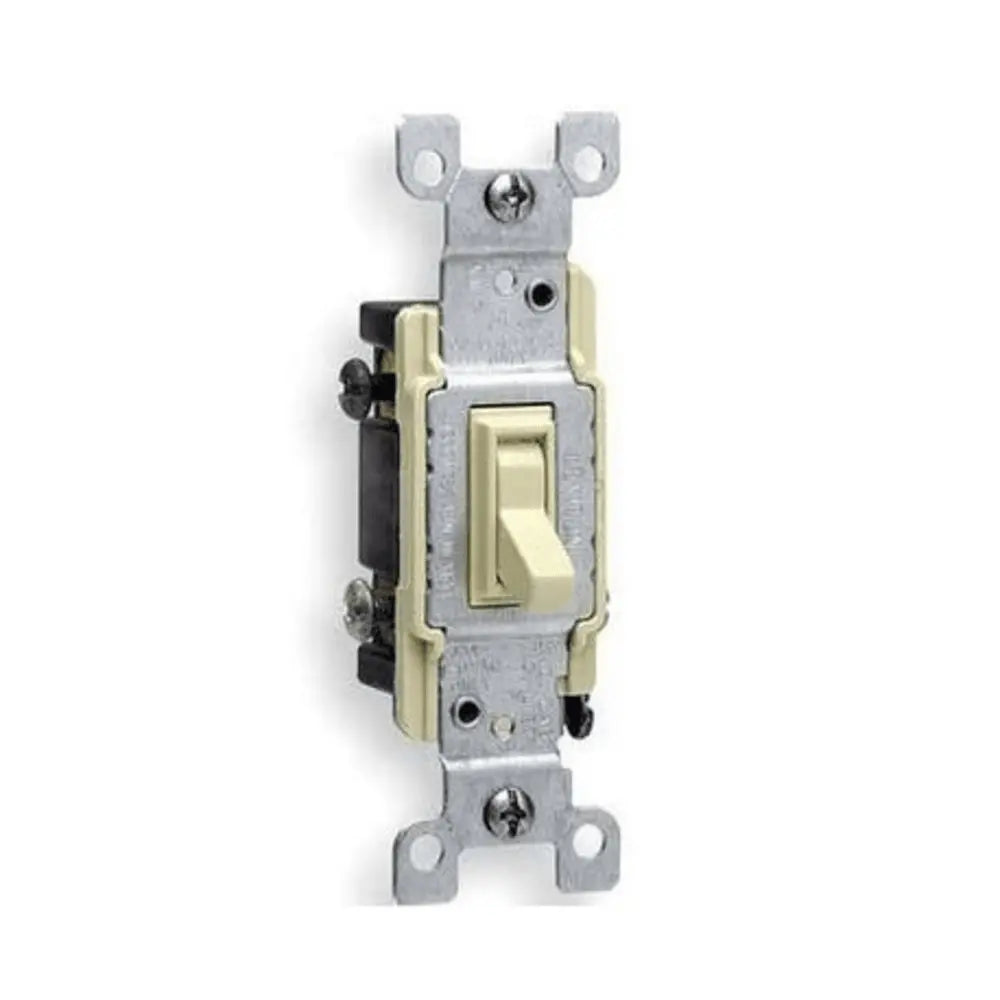

The LEVITON 1453-2I is an AC quiet toggle switch, designed for 3-way grounding with a voltage rating of 120 VAC and a current rating of 15A. It features a cam actuator and is suitable for surface mounting. This switch is constructed from thermoplastic material and is compatible with Leviton wallplates. Ideal for residential and commercial applications.
- Faster installation with combination of side wiring and quick wire push-in wiring
- Large head triple drive combination screws for fast wiring installation
- Impact resistant, durable thermoplastic toggle and frame
Product Highlights
The LEVITON 1453-2I AC quiet toggle switch ensures seamless operation and durability for diverse switching needs.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 1453-2I
-
Country of Origin: US
Technical Specifications
-
Type: 3-Way Grounding
-
Actuator: Cam
-
Material: Thermoplastic
-
Mounting: Surface
-
Manufacturer: LEVITON
-
Power Rating: 1/2, 2 hp
-
Terminal Type: Side and Push-In Wired
-
Contact Rating: 1/2 (120V);2 (240V)
-
Voltage Rating: 120 VAC
-
Amperage Rating: 15 A
-
Operating Temperature: -40 to +65 DEG C
-
Width: 1.31 Inches
-
Height: 4.2 Inches
-
Weight: 0.12 Pounds
-
Standard: UL, CSA
-
Insulated: No
-
Connection: Push-In and Side Wire
-
Number Of Poles: 3-Pole
-
Country of Origin: US
-
Environmental Conditions: Dry Location
-
Amperage: 15 A
-
Switch Type: 3-Way
-
Horsepower: 1/2 hp
-
Application: Commercial Applications
-
Standards/Approvals: UL File No. E7458|UL94 V-2 Flammability Rating|CSA File No. LR3413|NOM 057
-
Pole: 3
-
Feature: Framed
-
Grounding: Grounding
-
HP Rating: 1/2HP-120V
-
Termination: Quickwire Push-In & Side
-
Body Material: Thermoplastic
-
Strap Material: Steel
-
Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
-
Actuator Material: Thermoplastic
-
Standards and Certifications: UL/CSA
-
RoHS Compliant: False
-
Insulation: Thermoplastic
-
Special Features: Grounding, Terminal Screws Accept up to No. 12 AWG Copper or Copper-Clad Wire, Large Head, Hardened Triple-Drive Combination Screws (Standard, Phillips, Robertson) for Fast Wiring Installation, Impact-Resistant, Durable Thermoplastic Toggle and Frame
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Brand Name: Leviton
-
Alternative Part Number: 7358724
-
Amperage Rating UOM: A
-
Country: USA|Canada
-
Power Rating UOM: hp
-
Voltage Rating UOM: VAC
-
Volts AC: 120
-
Amps: 15
-
Commercial / Residential: Commercial / Residential
-
Electrical Product Type: Switch
-
Indoor/Outdoor: Indoor
-
Maximum Amperage (A): 15 A
-
Number of Poles: 3-Way
-
Pack Size: 1
-
Wattage: 1875
-
Works With: No Hub Required
