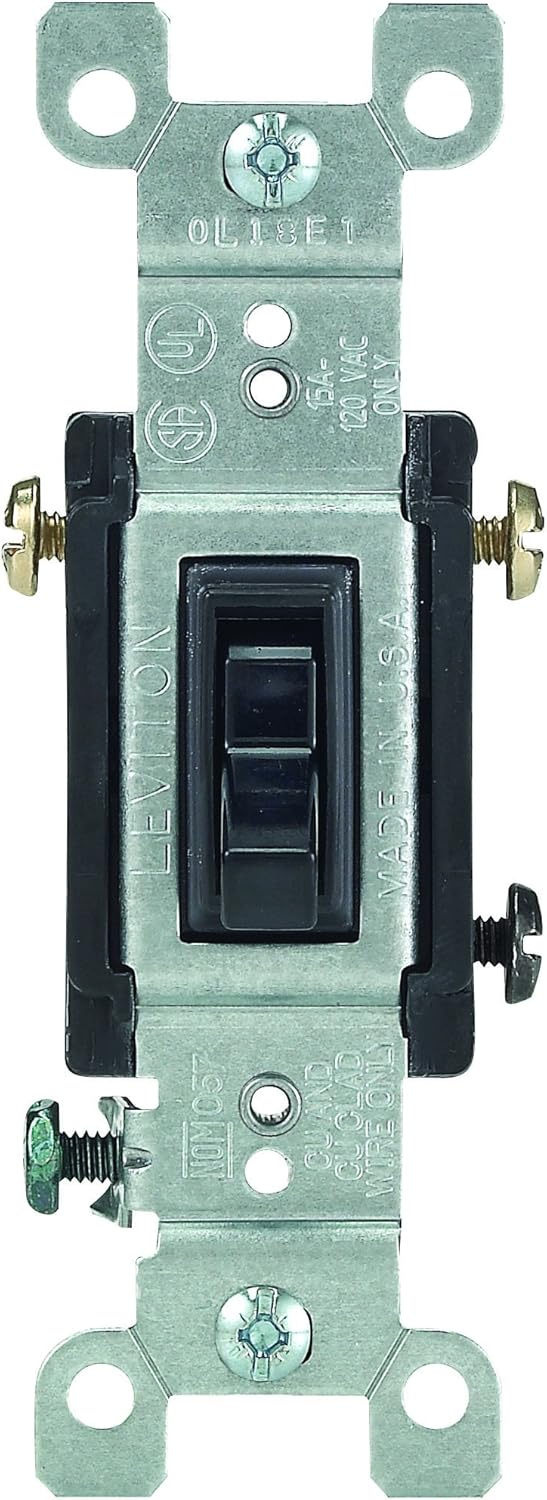

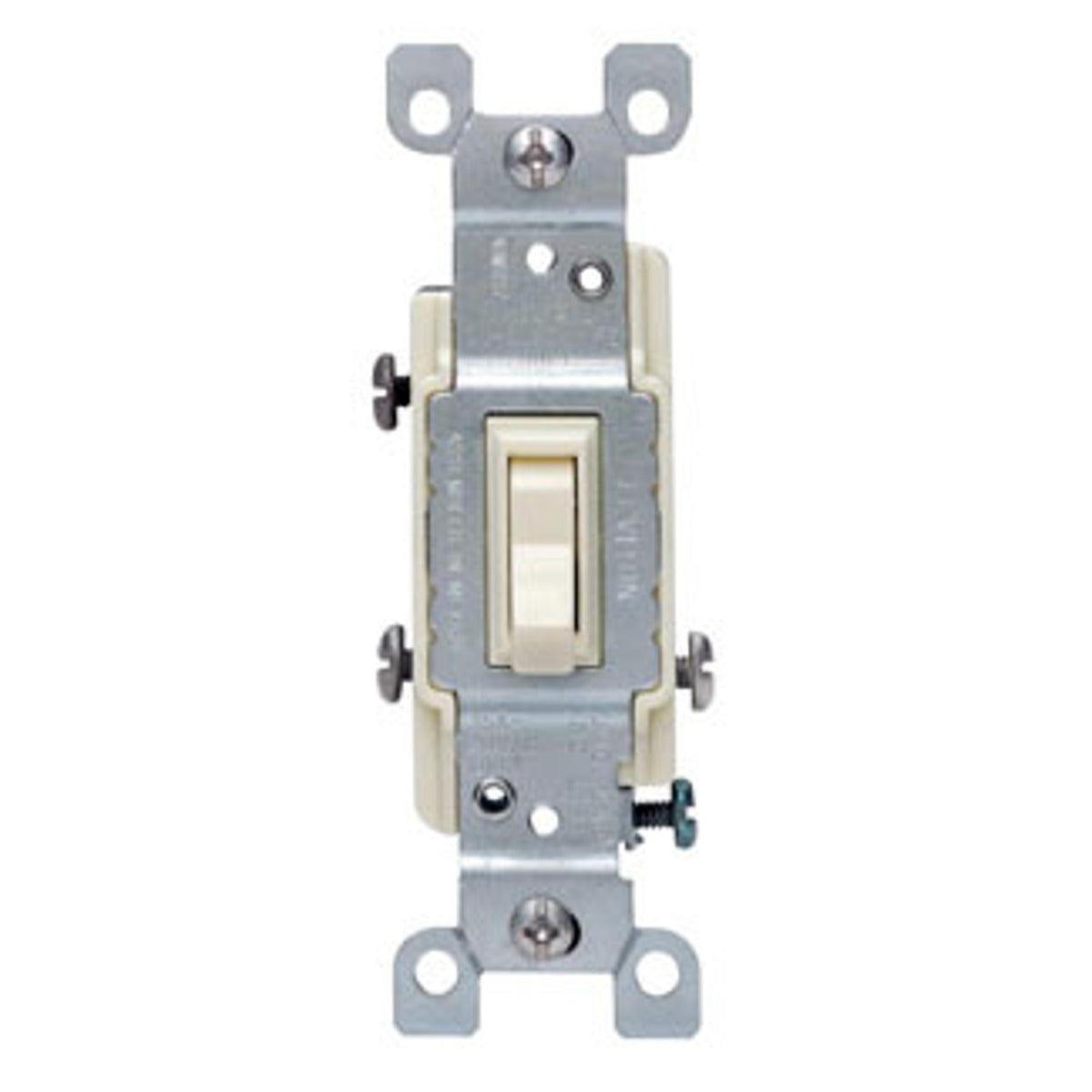

Leviton 1453-2E 15 Amp, 120 Volt, Toggle Framed 3-Way AC Quiet Switch

Product Description

The Leviton 1453-2E is a 15 Amp, 120 Volt, Toggle Framed 3-Way AC Quiet Switch. This residential grade switch features grounding, and quickwire push-in & side wired connections. It is compatible with a wide range of Leviton plastic and metal wallplates. Ideal for controlling lights from two locations.

• 15 Amp
• 120 Volt
• Toggle Framed

Product Highlights

The Leviton 1453-2E switch offers easy installation with side wiring and quick wire push-in wiring.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1453-2E
• Country of Origin: US

Technical Specifications

• Color: Black
• Voltage: 120 Volts
• Material: Thermoplastic
• Switch Type: 3-way
• Switch Style: Toggle
• Current Rating: 15 Amps
• Operation Mode: ON-OFF
• Contact Material: Copper
• Operating Voltage: 120 Volts
• Batteries Included?: No
• Batteries Required?: No
• Type: 3-Way Grounding
• Mounting: Surface
• Power Rating: 1/2, 2 hp
• Terminal Type: Side and Push-In Wired
• Contact Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Environmental Conditions: -40 to 65 deg C Operating Temperature
• Actuator: Cam
• Application: Commercial Applications
• Standards/Approvals: UL File No. E7458|UL94 V-2 Flammability Rating|CSA File No. LR3413|NOM 057
• Grade: Residential Grade
• Wiring: Quickwire Push-In & Side Wired
• Amperage: 15 Amp
• HP Rating: 1/2HP-120V
• Max. Amperage: 12 Amp
• Termination: Quickwire Push-In & Side
• Body Material: Thermoplastic
• Strap Material: Steel
• Standards and Certifications: UL/CSA
• Brand Name: LEVITON
• Connection: Push-In and Side Wired
• Insulation: Thermoplastic
• Special Features: Grounding, Terminal Screws Accept up to No. 12 AWG Copper or Copper-Clad Wire, Large Head, Hardened Triple-Drive Combination Screws (Standard, Phillips, Robertson) for Fast Wiring Installation, Impact-Resistant, Durable Thermoplastic Toggle and Frame, 2 Years Limited Warranty
• Operating Temperature: -40 to +65 DEG C
• Stripped Catalog Number: 14532E
• Catalog Description (MFR): 15 Amp, 120 Volt, Toggle Framed 3-Way AC Quiet Switch, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Black
• Invoice Description (MFR): 3WAY FRAMED TOGGLE SW
• Manufacturer Name: Leviton
• UPC: 078477135563
• GTIN: 00078477135563
• Alternative Part Number: 7350904
• Amperage Rating UOM: A
• Country Of Origin: US
• IDEA Index ID: 7350904
• Power Rating UOM: hp
• Voltage Rating UOM: VAC
• Feature: Framed
• Dimensions: H: 4.188 in
• Dimensions: W: 1.625 in
• Dimensions: D: 1.688 in
• Pole: 3
• Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
• Approval: UL, CSA, NOM 057
• Size REF: 1.31 IN x 1.05 IN x 4.2 IN
• Wall Plate Included: No
• Maximum Load Capacity: 1/2 hp
• Item Name: Toggle Framed AC Quiet Switch
• Action: Maintained
• Terminal Connection: Quickwire Push-In and Side Wired, Ground Screw
• Temperature Rating: -40 to 65 deg C
• Standards: UL E7458 Listed, CSA LR3413 Certified, NOM 057
