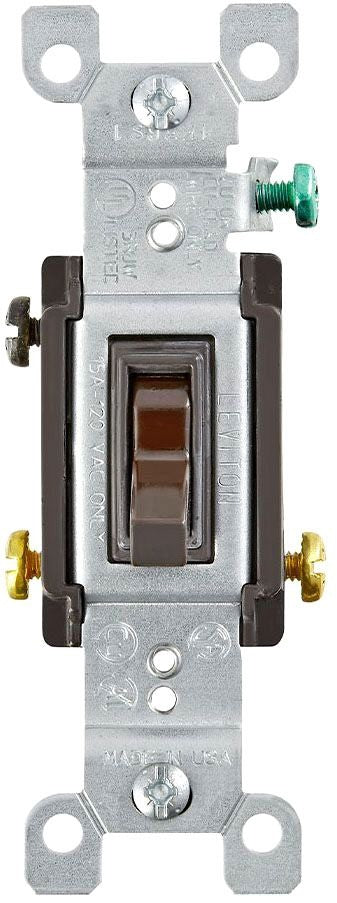

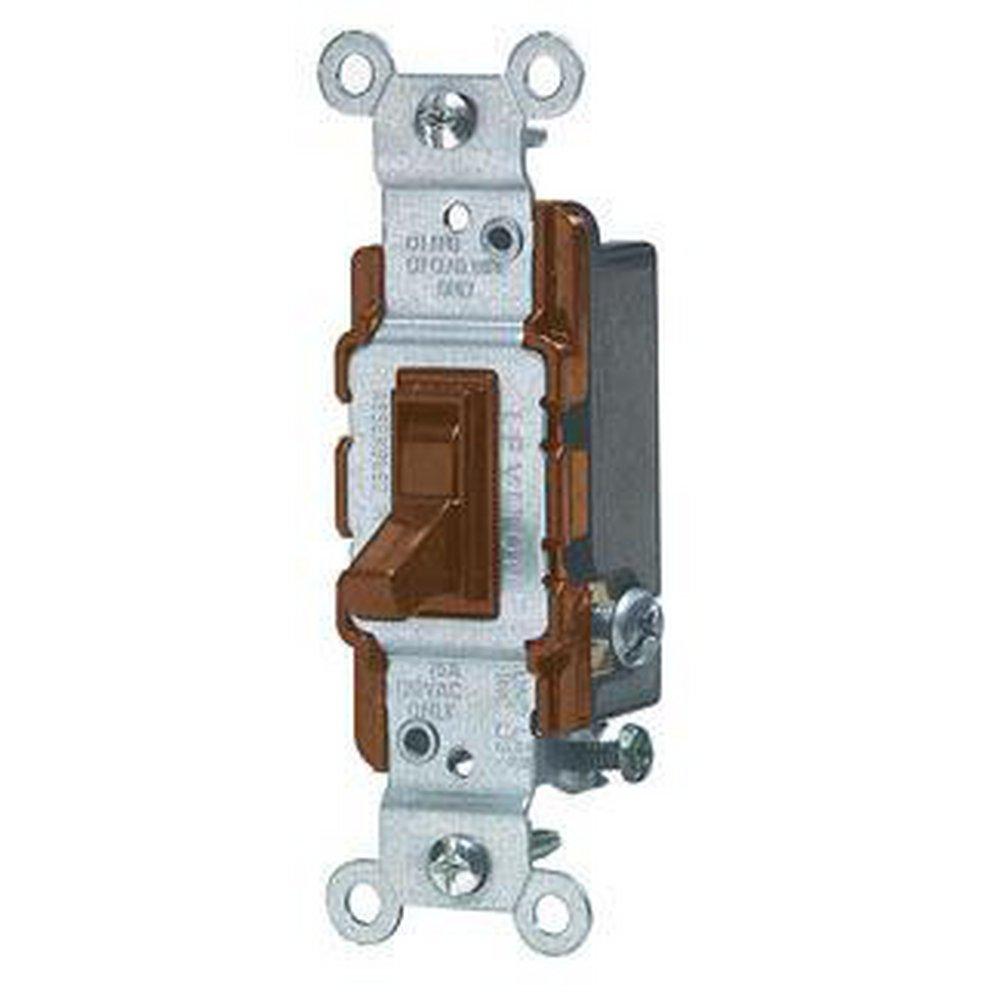

Leviton 1453-2 3-Way AC Quiet Toggle Switch 120 VAC 15 Amp Replacement 1453-2

Product Description

The Leviton 1453-2 is a three-way AC quiet toggle switch designed for residential use. Operating at one hundred twenty volts and fifteen amps, it supports a power rating of one-half horsepower at one hundred twenty volts and two horsepower at two hundred forty volts. This product features a durable thermoplastic construction, suitable for various environments.

• Quick wire push-in terminals allow for easier installation.
• Accepts side wiring with terminal screws rated for wire sizes up to twelve AWG.
• Compatible with standard Leviton wall plates.

Product Highlights

The Leviton 1453-2 combines reliable performance with a simple installation process, making it suitable for many types of wiring configurations.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part Number: 1453-2

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Power Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Operating Temperature: -40 to +65 deg C
• Environmental Conditions: Flammability rated V-2 per UL94
• Dimensions: 4.2 in H x 1.31 in W x 15 in D
• Material: Thermoplastic
• Mounting Type: Surface
• Actuator Type: Cam
