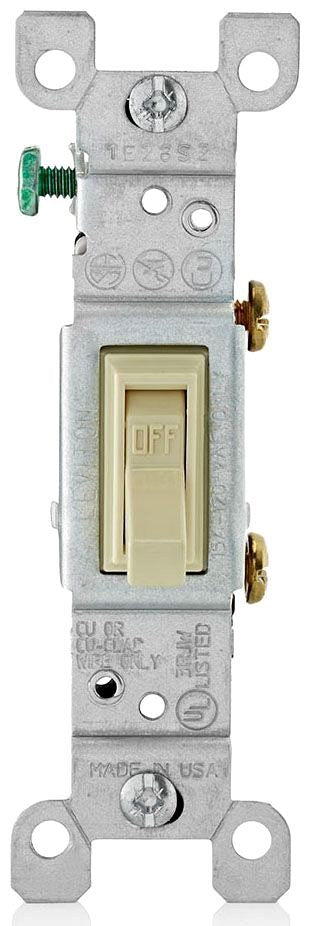

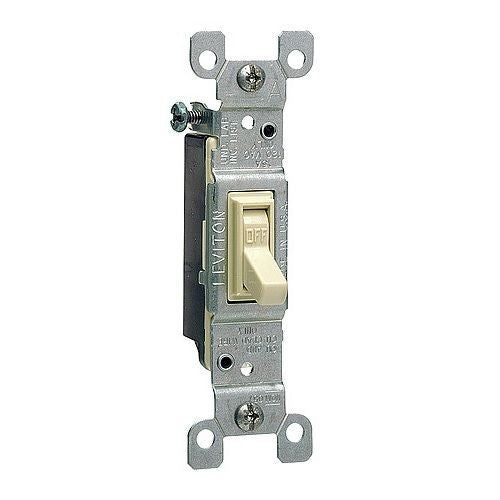

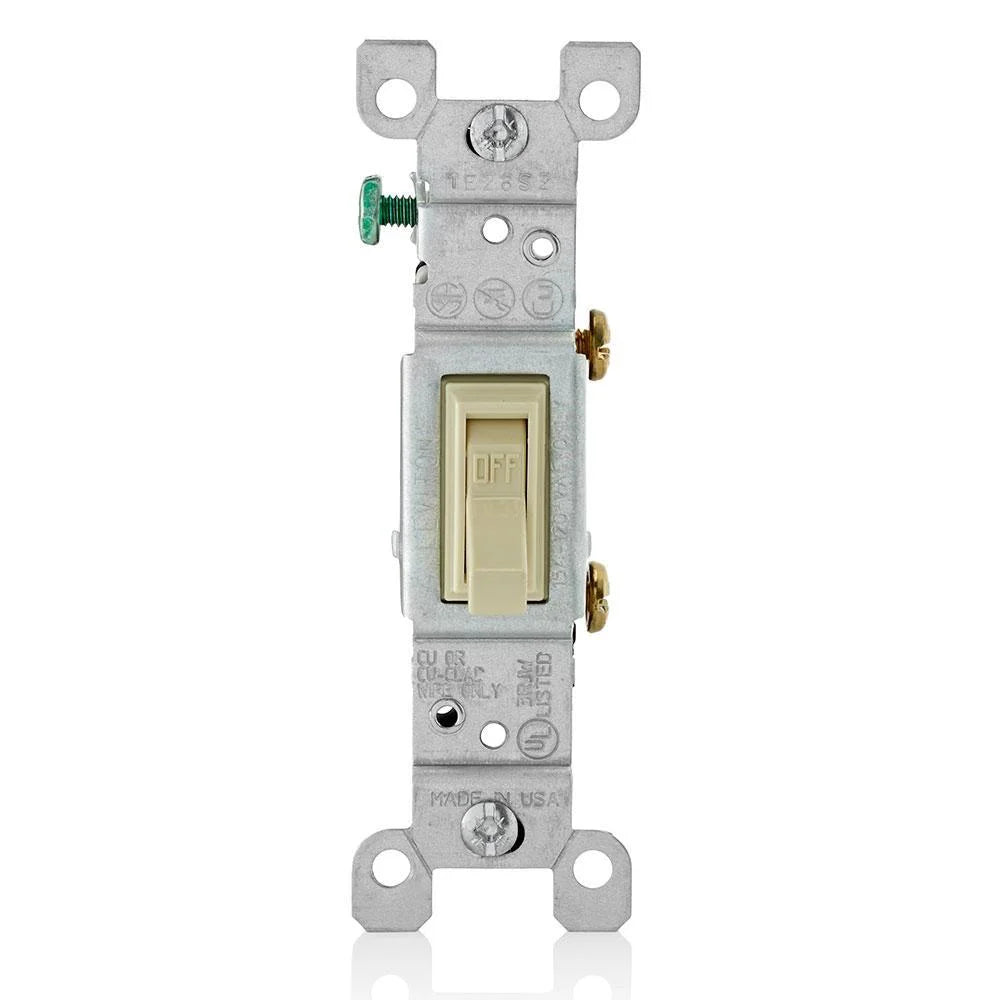

Leviton 1451-2I Grounding AC Quiet Toggle Switch 120 VAC, 15 A, 1/2, 2 hp Power Rating SP

Product Description

The LEVITON 1451-2I is a residential grade AC quiet toggle switch. This switch is designed for easy installation and is compatible with a wide range of Leviton plastic and metal wallplates. It features impact-resistant thermoplastic construction for durability and large head, hardened triple-drive screws for easy installation.

• Grounding
• AC Quiet Toggle Switch
• Residential Grade

Product Highlights

This AC quiet toggle switch is ideal for residential applications. It offers easy installation and durable thermoplastic construction.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1451-2I
• Country of Origin: US

Technical Specifications

• Amperage: 15 A
• Voltage: 120 VAC
• Contact Type: SP
• Power Rating: 1/2, 2 hp
• Type: Framed Toggle
• Current Rating: 15 Ampere
• Voltage Rating: 120 VAC
• Operation Type: Single Pole
• Material: Thermoplastic
• Wiring: Push-In, Side
• Application: Residential
• Approval: UL, CSA, NOM 057
• Operating Temperature: -40 to 65 Deg C
• Grounding Type: Grounding
• Strap Material: Steel
• Includes: Ground Screw
• Number Of Poles: 1
• Terminal Type: Side and Push-In Wired
• Actuator: Cam
• Contact Configuration: SP
• Contact Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Environmental Conditions: -40 to 65 deg C Operating Temperature
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, CSA Certified (File LR-3413), NOM (057), UL Listed (File E-7458), UL94 V-2 Flammability Rated
• Amperage Rating: 15 A
• Rated Voltage: 120V
• Connection Type: Push-In and Side Wired
• Mounting Type: Surface
• Action: SP
• No. of Poles: 1
• Volts AC: 120
• Poles: 1
