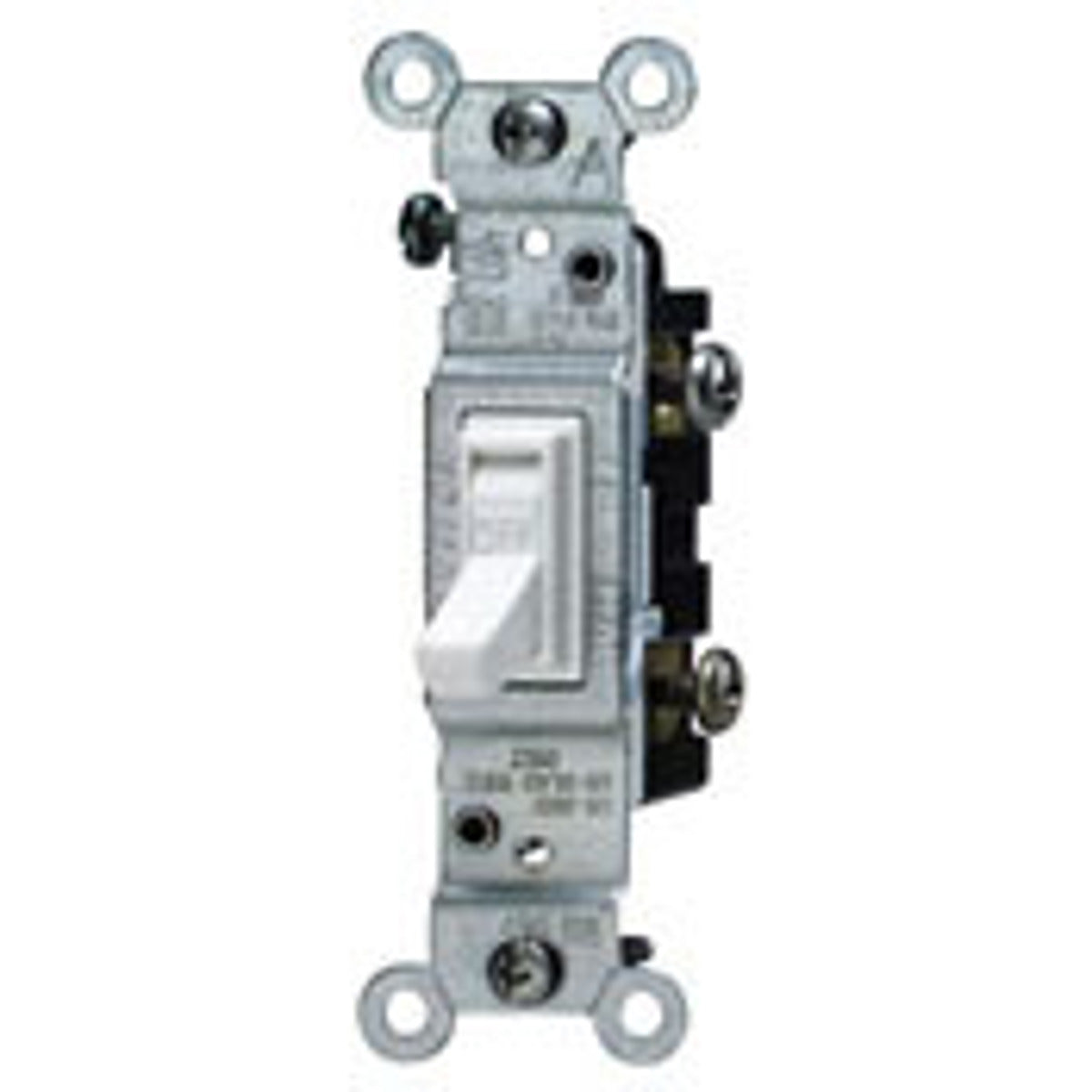

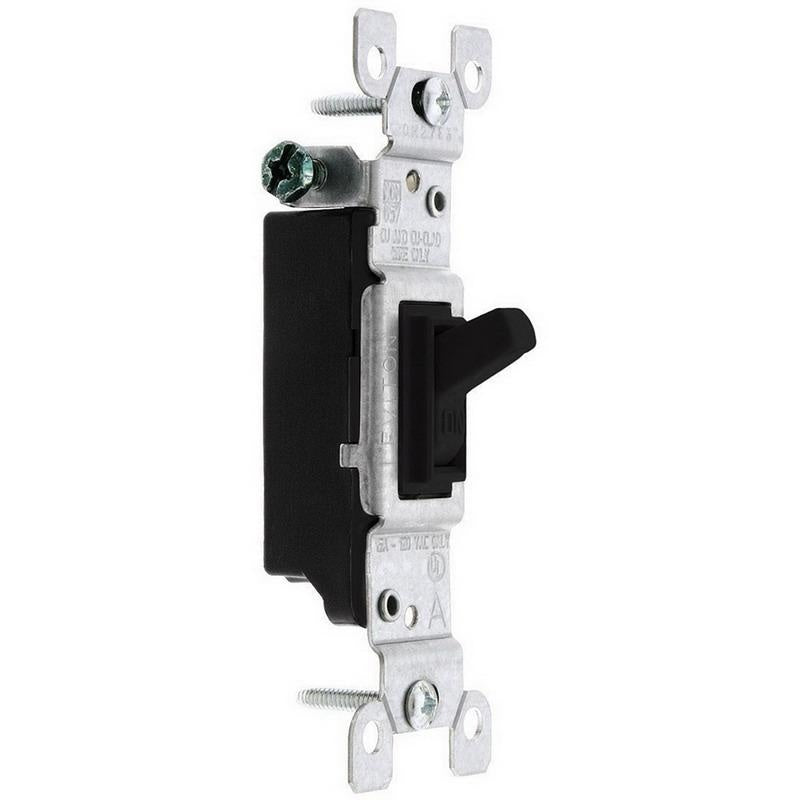

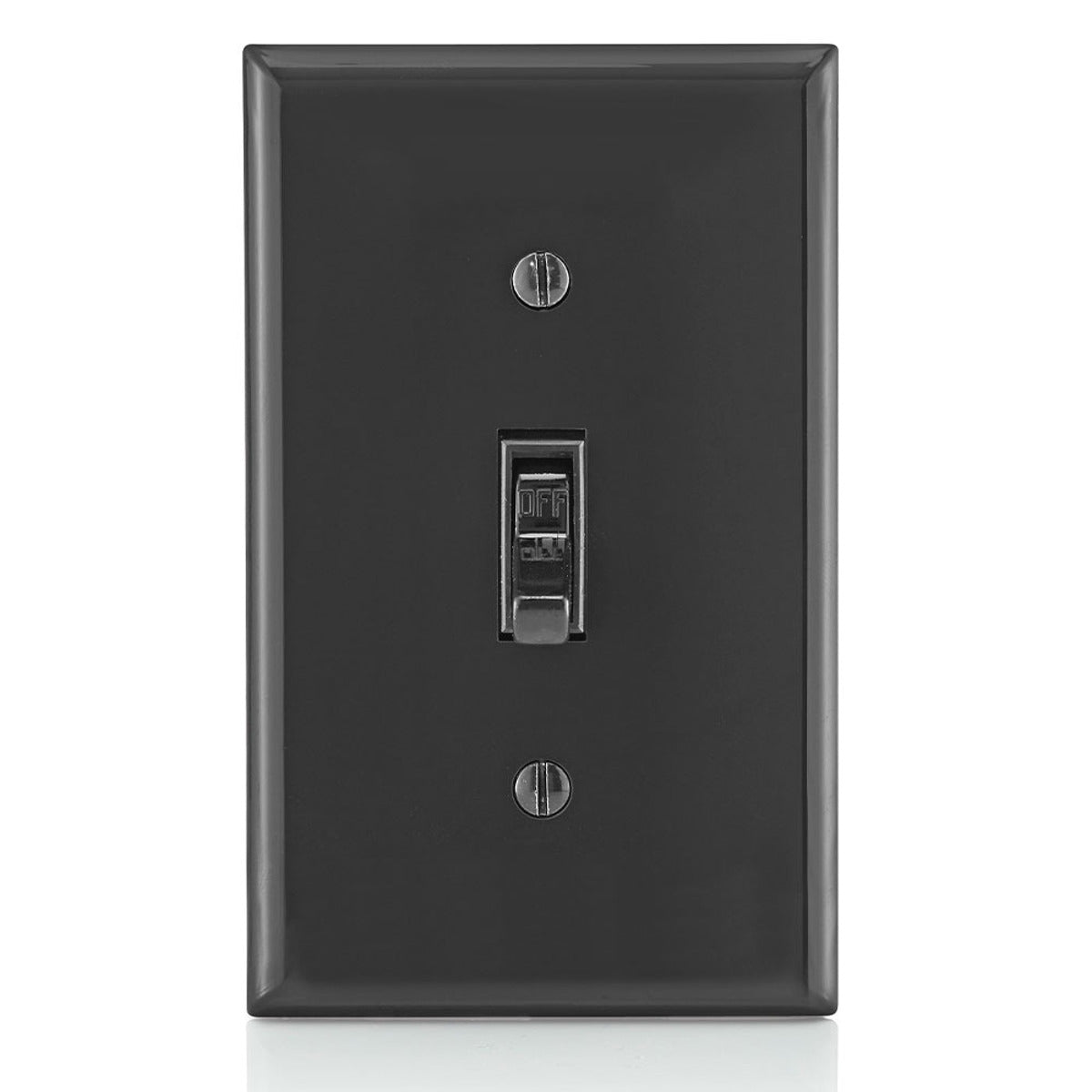

Leviton 1451-2E 1-pole AC quiet toggle switch, 120 VAC, 15 amp

Product Description

The Leviton 1451-2E is a grounding toggle switch rated at 120 VAC and 15A. This AC quiet switch features a cam actuator and is designed for surface mounting. It has side and push-in wired terminals and is constructed from thermoplastic.

• Faster installation with combination of side wiring and quick wire push-in wiring
• Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation
• Impact resistant, durable thermoplastic toggle and frame

Product Highlights

This Leviton toggle switch is suitable for residential and commercial applications. It ensures easy installation and long-lasting performance.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1451-2E
• Country of Origin: US

Technical Specifications

• Type: Grounding
• Actuator: Cam
• Material: Thermoplastic
• Mounting: Surface
• Manufacturer: LEVITON
• Power Rating: 1/2, 2 hp
• Terminal Type: Side and Push-In Wired
• Contact Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Number of Poles: 1
• Contact Configuration: SP
• Operating Temperature: -40 to 65 deg C
• Application: Commercial
• Connection: Push-In and Side Wired
• Insulation: Thermoplastic
• Standard: NOM Certified (057);CSA Certified (File LR-3413);UL Listed (File E-7458)
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Country of Origin: US
• Maximum Load Capacity: 1/2 hp
