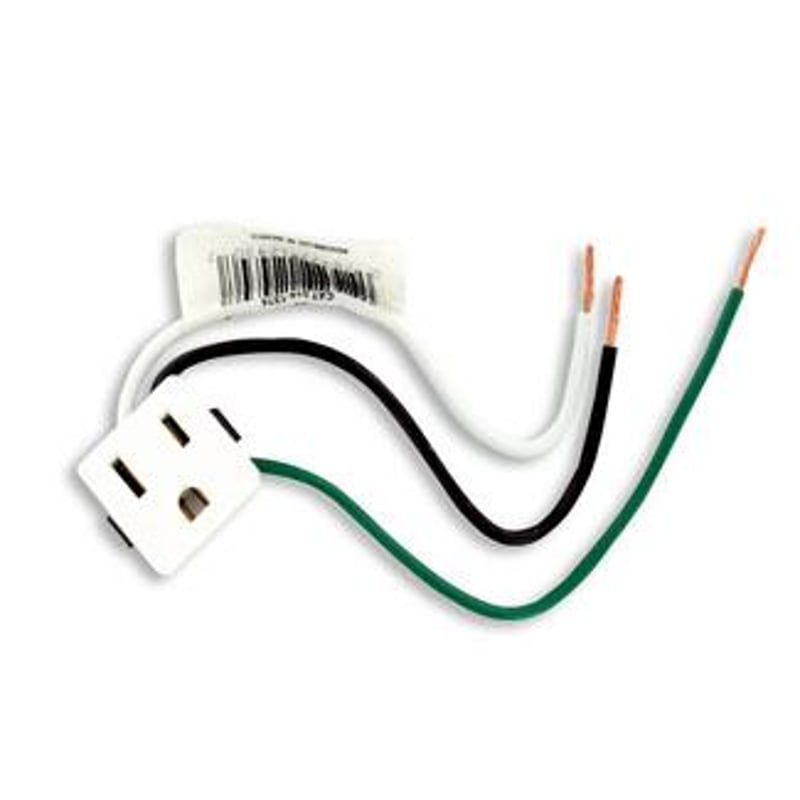

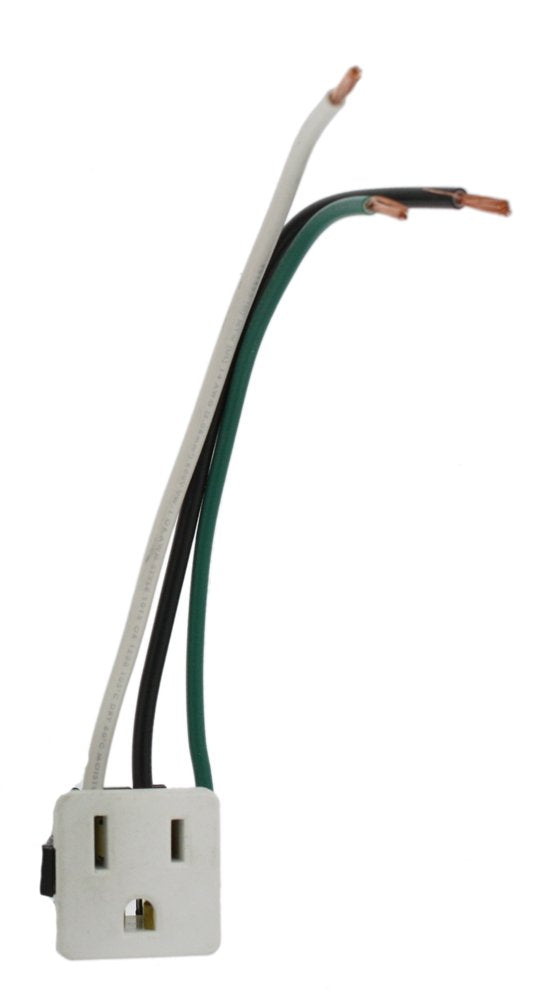

Leviton 1374-1W Snap-In Receptacle 15A, 125V

Product Description

The Leviton 1374-1W is a 15A, 125V snap-in receptacle. This straight blade type receptacle features a thermoplastic body and is suitable for commercial applications. It is UL, CSA, and NOM approved and includes 14 AWG 6-inch wire lead terminals.

• Grounding, straight blade type
• Thermoplastic body material
• UL, CSA, NOM approval

Product Highlights

The Leviton 1374-1W snap-in receptacle is ideal for various commercial applications requiring a reliable and easy-to-install power outlet.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1374-1W
• Country of Origin: Mexico

Technical Specifications

• Outlet Rating: 15 Amp
• Voltage: 125 Volt AC
• Configuration: NEMA 5-15R
• Type: 2P, 3W, Snap-In Receptacle, Straight Blade, Grounding
• Terminal Type: Leads 14GA 6 Inch Long Wired
• Body Material: Thermoplastic
• Opening Installation: 0.95 INCH X 0.95 INCH
• Finish: White
• Approval: UL, CSA, NOM
• Brand: LEVITON
• MPN: 1374-1W
• UNSPSC: 39121406
• Mounting: Snap-In
• Standard: CSA Certified (LR-2781);NOM Certified (057);UL Listed (File E13399)
• Connection: Wire Lead
• Application: Commercial
• NEMA Rating: 5-15R
• Product Name: Snap-In Outlet
• Commodity Code: 5130
• Voltage Rating: 125V
• Amperage Rating: 15 A
• Number Of Poles: 2 Pole
• Number Of Wires: 3
• Temperature Rating: -40 to +60 DEG C
• Stripped Catalog Number: 13741W
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Catalog Description (MFR): 15A, 125V, Snap-In Receptacle, Grounding, White
• Invoice Description (MFR): 515R SNAP IN RECEP WHT
• Safety Data Sheet (SDS) Flag: Y
• Buy American Act (BAA) Compliant: C
• Concatenated Invoice Description: 515R SNAP IN RECEP WHT
• American Recovery and Reinvestment Act (ARRA) Compliant: C
• Wire Size: 14
• Clip Material: Plastic Serrated
• Panel Opening: .95 x .95
• Panel Thickness: .031 - .080
• Grounding: Grounding
• Pole: 2
• Standards and Certifications: UL/CSA
• Termination: Leads 14GA 6 Inch Long
• Wire: 3
• Device Type: Snap-In
• Face Material: Thermoplastic
• Mounting Style: Snap-In
• Plug Type: A - 2 Pin
• Material: Thermoplastic
• Port Type: Power
• Connector Type: Nema 5 15r
• Number of Outlets: 1
• Specification Met: UL
• Country of Origin: United States
• Grade: Commercial
