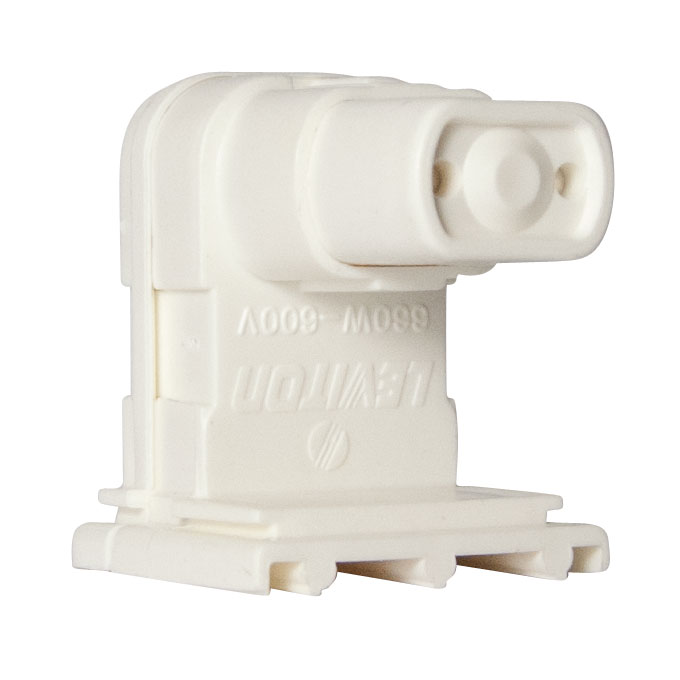

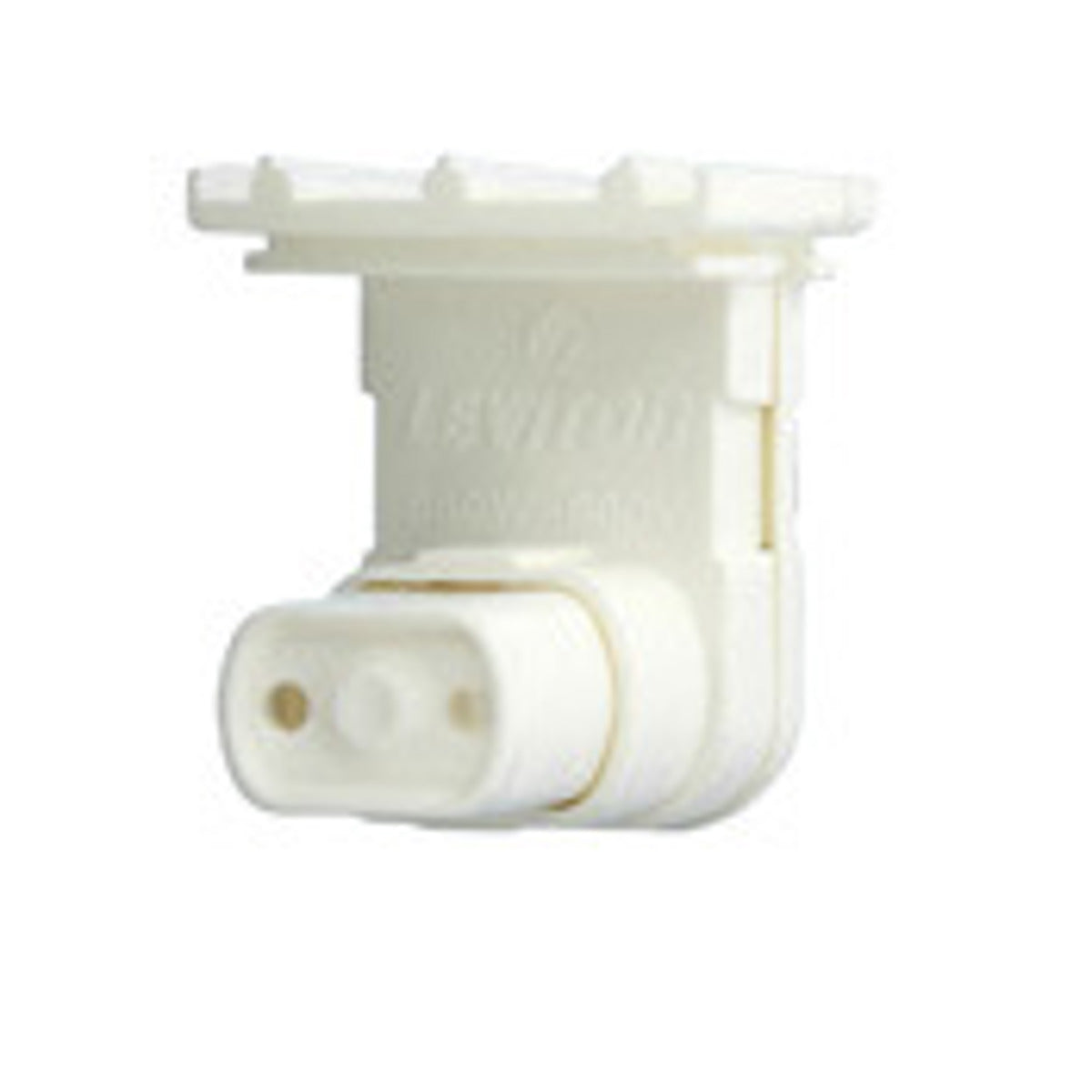

Leviton 13570-NW Slide On Plunger Lampholder

Product Description

The Leviton 13570-NW slide-on plunger lampholder is suitable for various electrical applications. Designed for use with 20-gauge thickness panels, this medium base, bi-pin, standard fluorescent lampholder features a pedestal and slide-on plunger. It is made from thermoplastic material.

• Medium Base
• Bi-Pin
• Standard Fluorescent Lampholder

Product Highlights

The Leviton 13570-NW lampholder is ideal for fluorescent lighting fixtures requiring a reliable and easy-to-install lampholder.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 13570-NW
• Country of Origin: Mexico

Technical Specifications

• Style: Fluorescent Lampholder
• Finish: White
• Material: Thermoplastic
• Base Type: Medium
• Switch Style: Slide Switch
• Type of Bulb: Fluorescent
• Mounting Type: Panel Mount
• Specification Met: UL
• Included Components: 13570-NW
• Catalog Number: 13570-NW
• Manufacturer: Leviton
• Brand: Leviton
• Application: 20 Gauge Thickness Panels
• Lamp Type: T-8;T-12
• Light Technology: Fluorescent
• Special Features: Recessed Double Contact, Pedes Terminals, Horizontal Contacts, Used with 20 Gauge Panel Thickness, Made in Mexico
• Item Type: Medium Fluorescent Lamp Holder
• Voltage Rating: 600 V
• Mounting: Slide-On
• Body Material: Thermoplastic
• Lamp Wattage: 660 W
• Terminal Type: 18 AWG Solid, Quick Wire
• Lamp Base Type: Bi-Pin Medium to Miniature
• Type: Plunger End Standard
• Contact Material: Silver-Plated Copper-Alloy
• Mounting Orientation: Vertical
• Panel Thickness: 20 Ga. Panel
• Lamp Contacts: Bi-Pin
• Lampholder Type: Compact
• Light Type: Fluorescent
• Base: Recessed Double Contact (R17d)
• Voltage: 120 to 277
• UL Listing: Yes
• Height: 1.69 in
• Width: 1.5 in
• Length: 1.69 in
• Lampholder Watts: 660W
