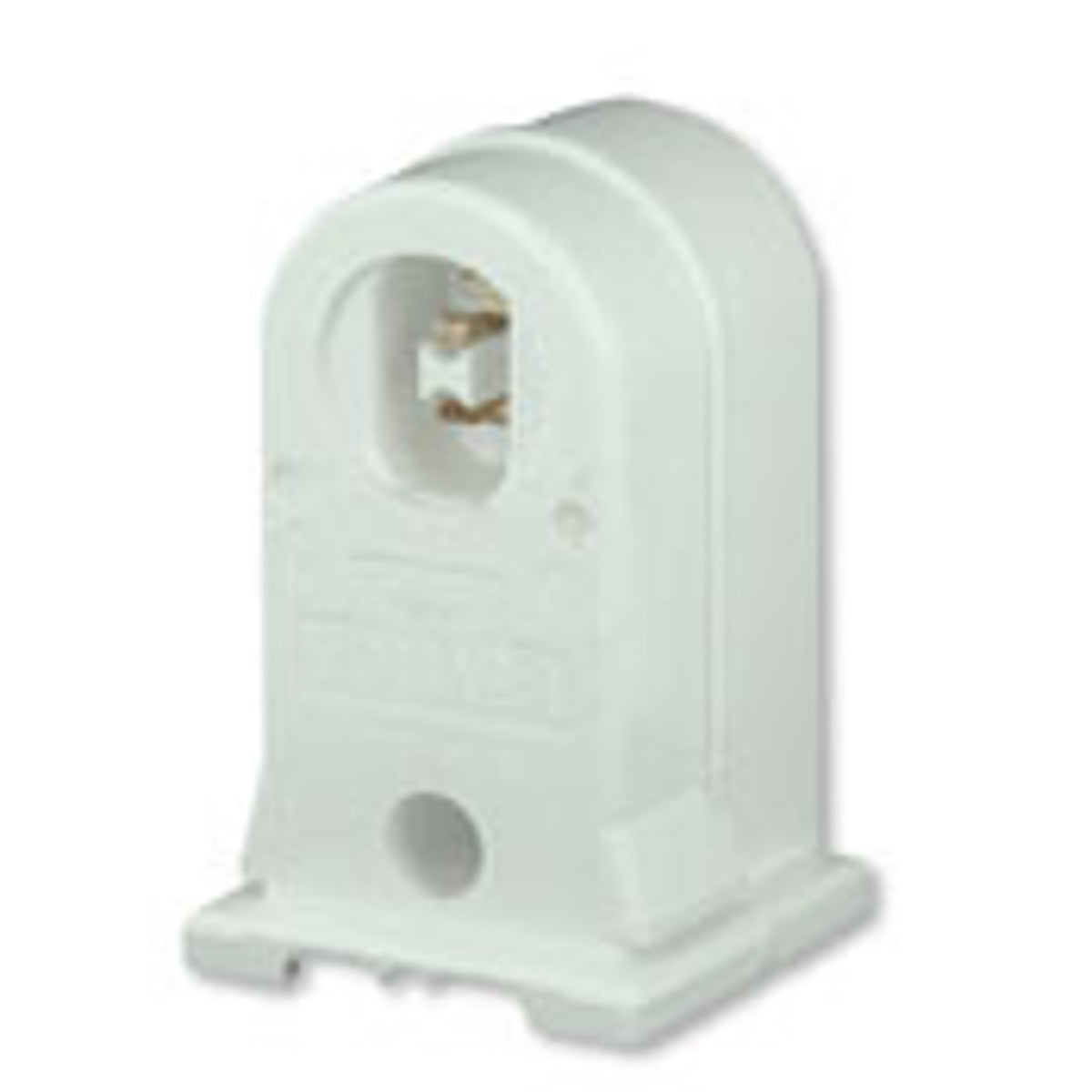

Leviton 13557-W High-Output Base, Double Contact Vert., Standard Fluorescent Lampholder, Pedestal

Product Description

The LEVITON 13557-W is a high-output base, double contact vertical, standard fluorescent lampholder. It is a pedestal, slide-on, stationary lampholder designed for power grove and jacketed lamps. The lampholder is suitable for lighting applications.

• High-Output Base
• Double Contact Vert.
• Standard Fluorescent Lampholder

Product Highlights

This lampholder is ideal for use with power grove and jacketed lamps in lighting applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 13557-W
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 13557-W
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Application: Lighting
• Lamp Type: Fluorescent
• Standard: UL Listed (E5833);CSA Certified (LR-5863);NOM Certified (057)
• UPC: 078477060933
• GTIN: 00078477060933
• Item Type: Standard Fluorescent Lampholder
• Length: 1.44 inch
• Voltage Rating: 600 VAC
• Wattage: 660 W
• Dimensions: 1.44 in L x 1.28 in W x 2.3 in H
• Lamp Base: High-Output
• Lamp Wattage: 660 W
• Material: Thermoset
• Mfg Standards/Approvals: UL E5833, CSA LR 5863, NOM 057, RoHS Compliant
• Mounting Type: Slide-On
• Terminal Type: Quick-Connect
• Type: Pedestal Standard
• Base: High Output
• Bulb: Fluorescent Lamp
• Voltage: 600 V
• Contact Type: Stationary
• Lamp Contacts: Double Contact (Vertical)
• Package Quantity: 1
• Mounting Location: Slide-On
• Manufacturers Part Number: 13557-W
• Body Material: Thermoset
• Lampholder Type: Linear
• Light Type: Fluorescent
• Panel Thickness: 20 Ga. Panel
• Termination: Quickwire 18AWG Solid or Str. Tinned
• CSA Certified: File LR-5863
• NOM Certified: 057
• UL Listed: File E5833
• Output: High
• Depth: 1.28 inch
• Height: 2.3 inch
