Product Description

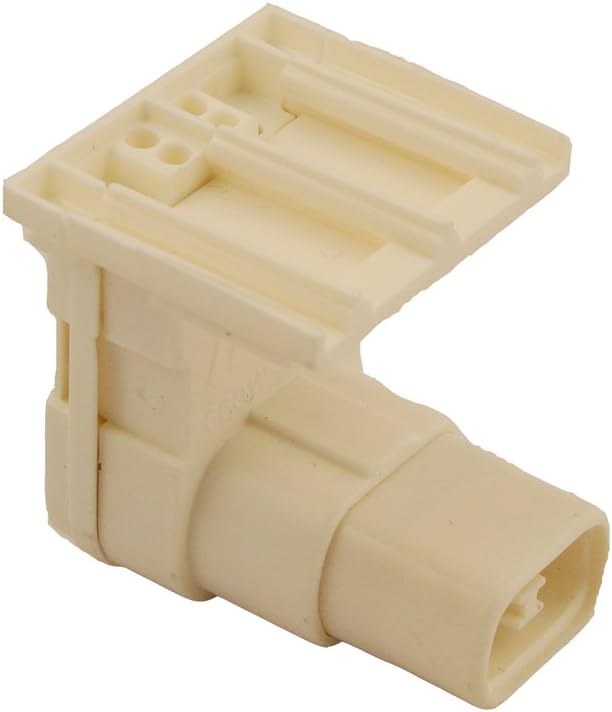

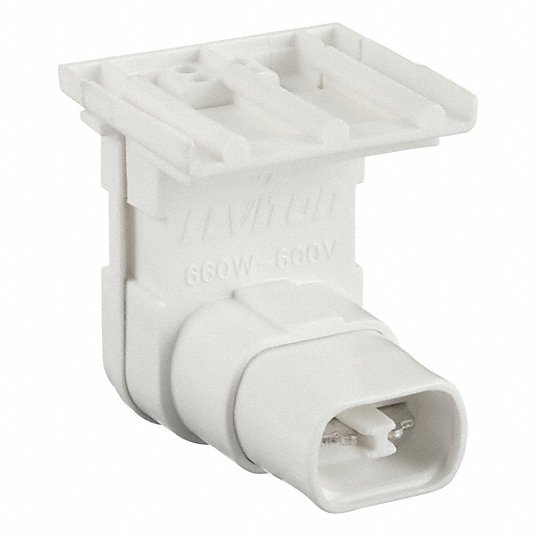

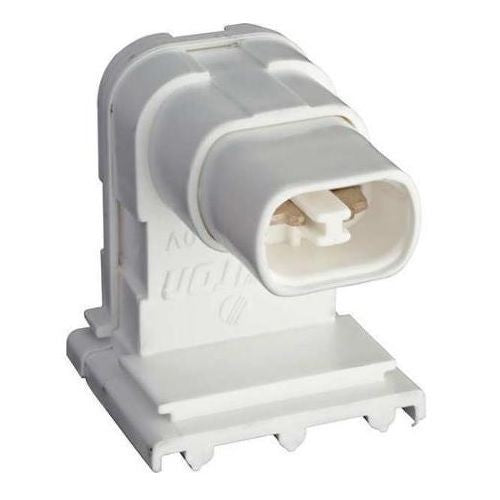

The Leviton 13550-NW is a thermoplastic medium fluorescent lampholder designed for T-8 and T-12 lamps. This lampholder features a recessed double contact and a pedestal type with plunger ends. It supports a 660 W lamp and is suitable for use in 20 gauge thickness panels. It is designed for indoor lighting in commercial and industrial facilities.
- Designed for T-8 and T-12 lamps
- Features recessed double contact
- Pedestal type with plunger ends
Product Highlights
This lampholder is ideal for use in commercial and industrial settings, providing a reliable connection point for powering fluorescent bulbs.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 13550-NW
-
Country of Origin: Mexico
Technical Specifications
-
Color: White
-
Voltage: 600V AC
-
Base Type: pedestal
-
Type of Bulb: Fluorescent
-
Mounting Type: Panel Mount
-
Batteries Required?: No
-
Included Components: 13550-NW
-
Brand: Leviton
-
Material: Thermoplastic
-
Lamp Type: Linear Fluorescent
-
Sub Brand: FLUORESCENT LAMPHOLDERS
-
Bulb Shape: T8
-
Applications: 20 Gauge Thickness Panels
-
Body Material: Thermoplastic
-
Connection Type: Push-In
-
Contact Material: Silver-Plated Copper-Alloy
-
Termination Type: Quickwire Terminals
-
Application: For 20 ga thick panel
-
Voltage Rating: 600 VAC
-
Lamp Wattage: 660 W
-
Lamp Base Type: Medium
-
Lamp Size: T8/T12
-
Terminal Type: Quick-Wire
-
Type: Non-Shunted Pedestal
-
Standards/Approvals: UL E5833|CSA LR1863|NOM 057
-
RoHS Compliant: True
-
Panel Thickness: 20 Ga. Panel
-
Lamp Contacts: Double Contact Horz.
-
Lampholder Type: Linear
-
Wattage: 660
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Brand Name: Leviton
-
Alternative Part Number: 10029265
-
Country: USA
-
Country Of Origin: MX
-
IDEA Index ID: 10029265
-
Lamp Wattage UOM: W
-
Voltage Rating UOM: VAC
-
Item [Specifications]: Lampholder
-
Bulb Base Type [Specifications]: Recessed Double Contact (R17d)
-
Country of Origin (subject to change) [Specifications]: Mexico
-
Overall Length: 1-3/4 in
-
Product Type: Lamp Holder
-
Connection: Quickwire
