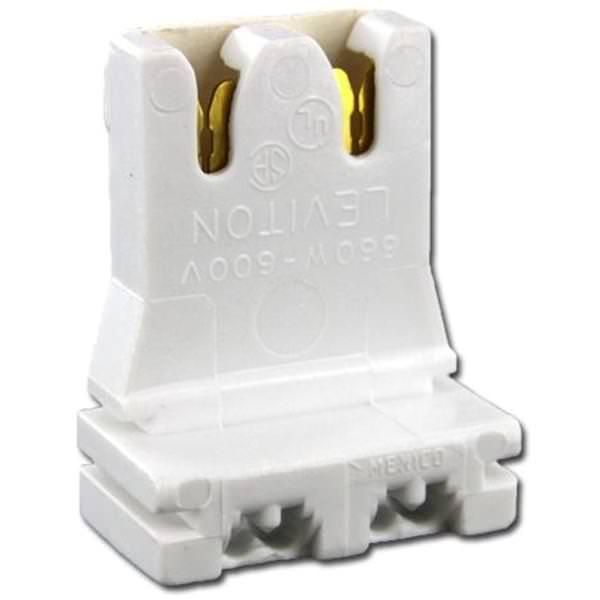

Leviton 13150 Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Slide-On, Straight-In Double Edge, 660W

Product Description

The LEVITON 13150 is a medium base, bi-pin, standard fluorescent lampholder. This low profile lampholder features a slide-on mounting type and a straight-in double edge contact. It utilizes quick-connect termination for 18AWG solid or stranded tinned wire. Rated for 660W and 600V, it is suitable for linear fluorescent light fixtures.

• Medium bi-pin lamp contacts
• Quick-Connect 18AWG Solid or Str. Tinned
• Rated Wattage: 660W

Product Highlights

This lampholder is ideal for fluorescent lighting applications requiring a standard, low-profile, and easy-to-install component.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 13150
• Country of Origin: Please Contact Customer Service

Technical Specifications

• Body Material: Thermosetting Urea
• Contact Material: Copper-Alloy
• Contact Type: Straight-In Double Edge
• Mounting Type: Slide-On
• Panel Thickness: 20 Ga. Panel
• Termination: Quickwire 18AWG Solid or Str. Tinned
• Wire Strip Length: 3/8 Inch
• Lamp Base: Medium
• Lamp Contacts: Bi-Pin
• Lampholder Type: Linear
• Light Type: Fluorescent
• Rated Wattage: 660W
• Standards and Certifications: UL/CSA/NOM
• Style Name: Low Profile
• Voltage: 600 Volt
• Lamp Type: Fluorescent
• Voltage Rating: 600 VAC
• Lamp Wattage: 660 W
• Lamp Base Type: Medium Bi-Pin
• Type: Standard
• Connection Type: Quick-Connect
• Material: Thermoset
• Brand: Leviton
• Device Type: Light Socket
• Power Source: Direct-Wire
• Style: Traditional
• Installation Area: Indoor
• Current Type: AC
• Part #: LW13150
• Manufacturer: Leviton
• Manufacturer Part #: 13150
• UPC Code: 078477133156
• Length: 1.6 inches
• Rated Voltage: 600
