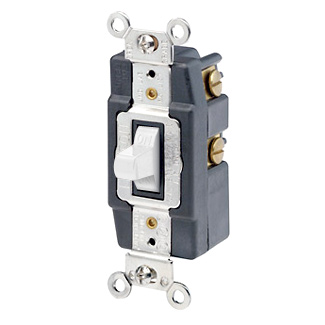

Leviton 1285-W Toggle Switch 20 Amp 120/277 VAC SPDT Contact

Product Description

The Leviton 1285-W is a toggle switch designed for heavy-duty applications. It operates at 120/277 VAC and supports a maximum current of twenty amps. This switch features a single pole double throw (SPDT) configuration and is built from high-quality thermoplastic material that ensures durability and longevity. Ideal for commercial environments, this switch is self-grounding and can be wired from the back or side.

• 20 Amp capacity at 120/277 Volt
• Toggle actuator for easy on/off control
• Self-grounding design enhances safety

Product Highlights

This toggle switch is engineered for reliability and efficiency in demanding electrical settings. It meets various industry standards and is suitable for commercial use.

Product Information

Standard Information

• Brand: Leviton
• MPN: 1285-W

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Contact Configuration: SPDT
• Material: Thermoplastic
• Operating Temperature: -40 to +65 degrees C
• Enclosure Rating: NEMA WD-1 and WD-6
• Dimensions: 46 H x 1.37 W x 2.29 D inches
• Weight: 0.5 lb
