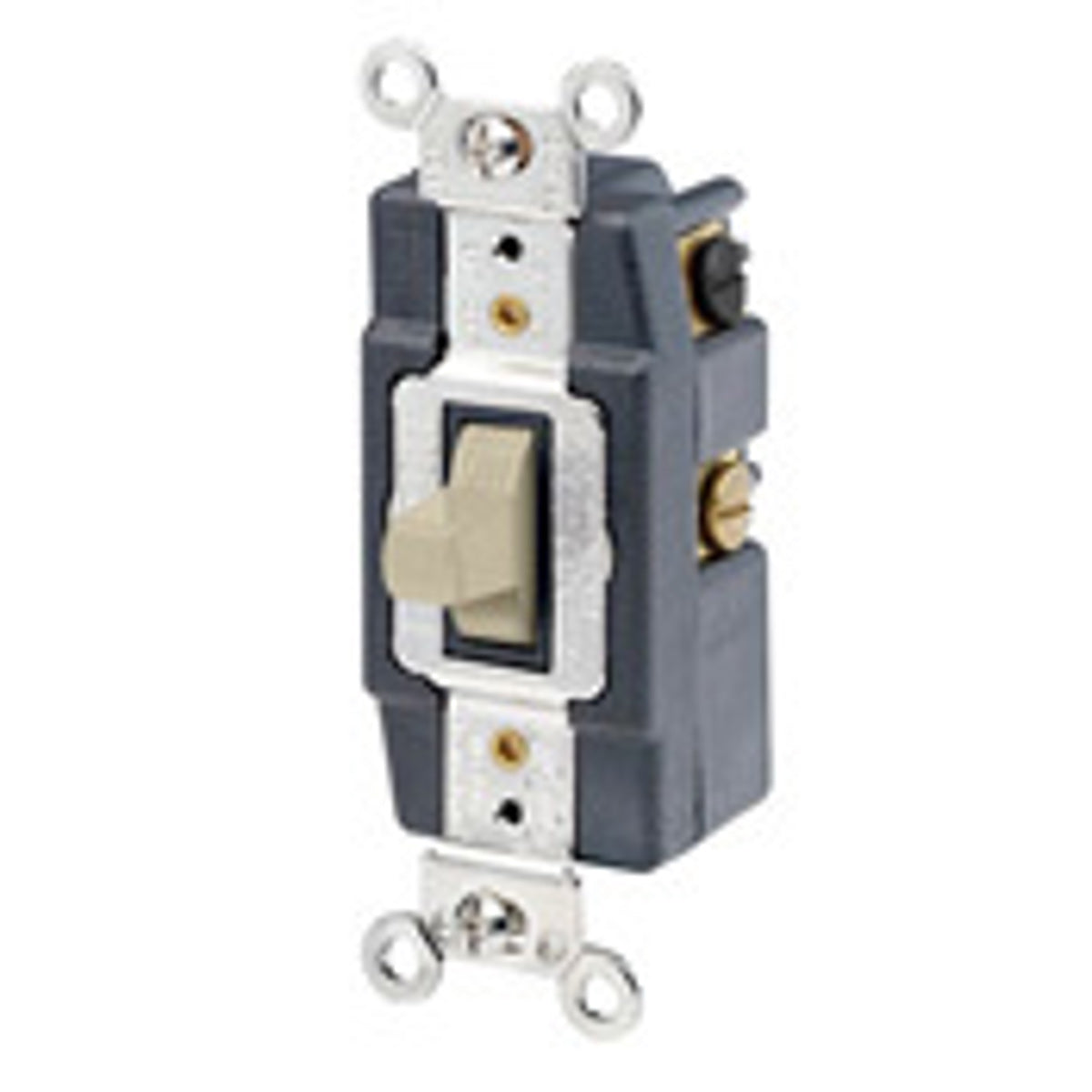

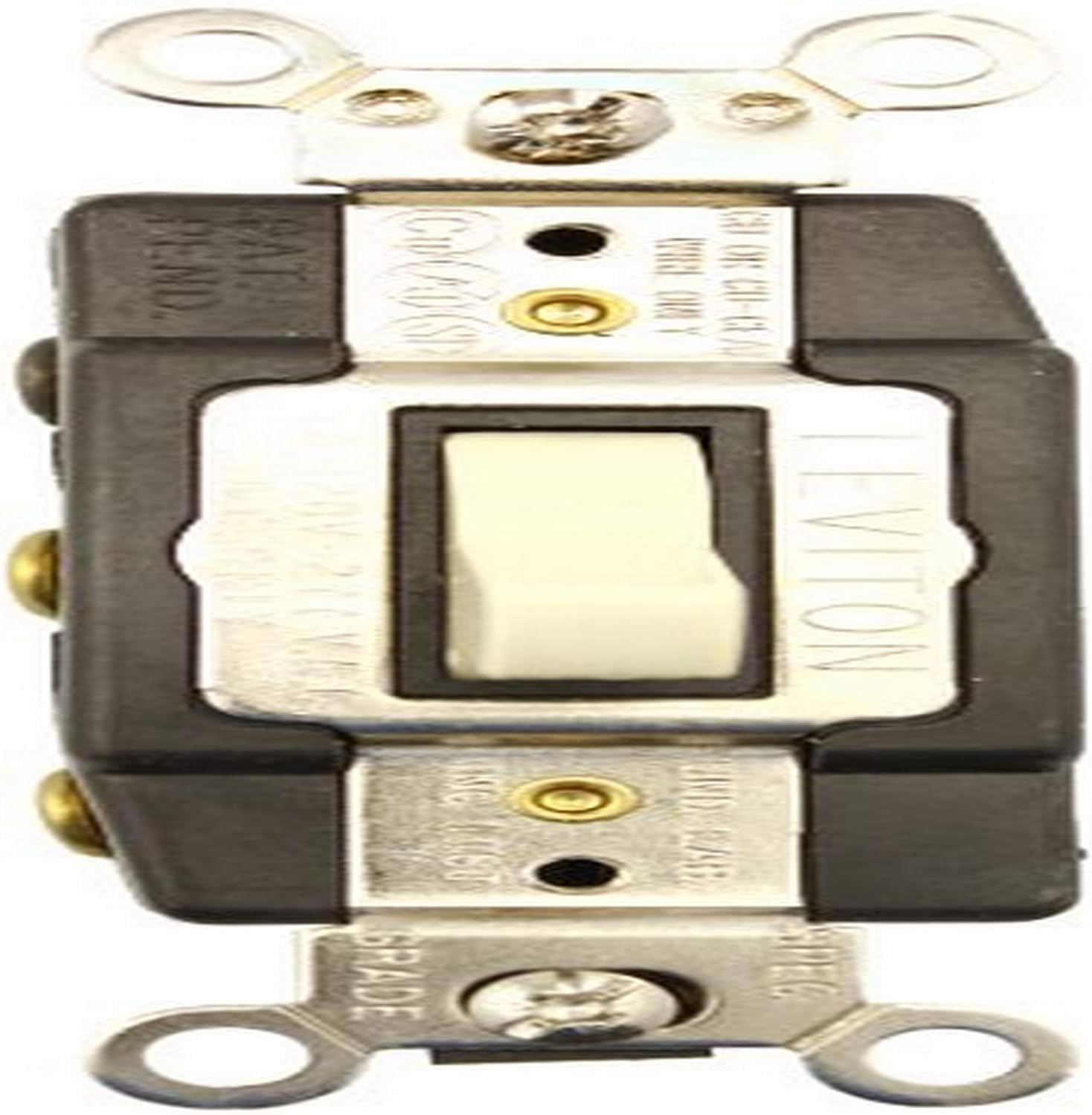

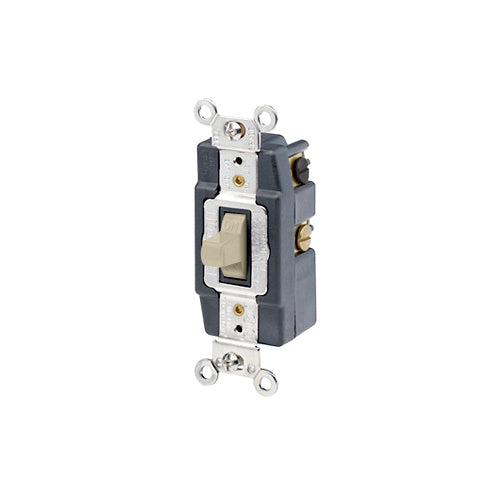

Leviton 1282-I Toggle Double Throw AC Quiet Switch, 15-Amp, 120/277-Volt

Product Description

The Leviton 1282-I is a 15-Amp, 120/277-Volt, toggle double throw, center off, maintained contact, double-pole AC quiet switch. It features positive switching action with center OFF position and large silver cadmium oxide contacts for long life. Suitable for commercial applications.

• Positive switching action with center OFF position
• Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
• Clamp type terminals accept up to 10 AWG copper wire

Product Highlights

This toggle switch has full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1282-I
• Country of Origin: Mexico

Technical Specifications

• Voltage: 120 Volts
• Terminal: Dpdt
• Switch Type: double_pole
• Switch Style: Toggle
• Connector Type: Quick Connect
• Current Rating: 15 Amps
• Operation Mode: ON-OFF
• Contact Material: Silver Alloy
• Specification Met: Ul
• AC Adapter Current: 15 Amps
• Included Components: 1282-I
• Insulation Resistance: 15 Megaohms
• Catalog Number: 1282-I
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Action: SPDT
• Actuator: Toggle
• Amperage Rating: 15 A
• Application: Commercial
• Connection: Back Wired;Side Wired
• Mounting: Box
• Number of Poles: 2
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20)
• UPC: 078477168165
• GTIN: 00078477168165
• Item Type: Toggle Switch
• Width: 1.37
• Height: 1.77165354
• Depth: 2.29
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Operating Temperature: -40 to +65 DEG C
• Voltage Rating: 120/277 VAC
• Contact Configuration: SPDT
• Contact Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Enclosure: NEMA WD-1/WD-6
• Material: Thermoplastic
• Mounting Type: Surface
• Operating Cycles: 50000 Cycles
• Power Rating: 1/2, 2 hp
• Terminal Type: Back/Side Wire
• Type: Center OFF
• AC Horsepower Ratings: HP Rating : 1/2HP-120V 2HP-240V-277V
• Max. Amperage: 12 Amp
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 50,000 cycles minimum
• Grounding: Self-Grounding
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Flammability: Rated V-2 per UL 94
• Base Material: Thermoplastic
• Cover Material: Thermoplastic
• Ground Clips: Brass
• Grounding Screw: Brass 8-32
• Strap Material: Steel
• Terminal Screws: Brass 8-32
• Toggle: Polycarbonate
• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back or Side Wire
• Body Material: Thermoplastic
• Device Type: Toggle Switch
• Feature: Maintained Contact CTR OFF
• Function: Double-Pole Double-Throw
• Grade: Extra Heavy-Duty Industrial Specification Grade
• HP Rating: 1/2HP-120V 2HP-240V-277V
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• RoHS: Compliant
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Actuator Type: Toggle
• Electrical Ratings: 1/2, 2 hp
• Enclosure Type: NEMA WD-1/WD-6
• Package Type: EACH
• Temperature Rating: -40 to 65 deg C Operating Temperature
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
