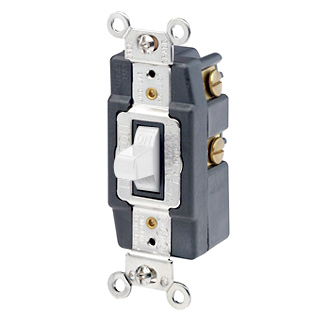

Leviton 1257-W Toggle Switch 20 Amp 120/277 VAC SPDT

Product Description

The Leviton 1257-W is a toggle switch designed for momentary contact operations at 120/277 VAC with a 20 Amp rating. This switch features a single pole double throw (SPDT) configuration suitable for various industrial applications. The construction of the device includes thermoplastic material, ensuring durability and reliability in demanding environments.

• Rated for 20 Amps at 120/277 VAC
• Compatible with 1 HP at 120 VAC and 2 HP at 240 to 277 VAC
• Self-grounding mechanism for added safety

Product Highlights

This toggle switch is ideal for commercial settings where reliable performance is essential. It supports back and side wiring options for flexible installation and features a momentary contact action.

Product Information

Standard Information

• Catalog Number: 1257-W
• Manufacturer: Leviton

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Contact Configuration: SPDT
• Dimensions: 46 inches H x 1.37 inches W x 2.29 inches D
• Material: Thermoplastic
• Mounting Type: Surface
• Operating Temperature: -40 to +65 degrees C
• Environmental Rating: Flammability (Rated V-2 Per UL94)
