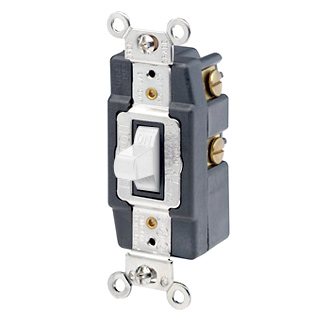

Leviton 1256-W 15 Amp 120/277 Volt Toggle Double-Throw Momentary Contact 1-Pole AC Quiet Switch

Product Description

Leviton offers the 1256-W, a toggle switch designed for extra heavy-duty applications. This switch operates at 15 Amps and 120/277 Volts, making it suitable for various commercial needs.

• Constructed with thermoplastic for durability.
• Features a self-grounding design for safety.
• Rated for up to 50,000 operating cycles.

Product Highlights

This switch is especially useful in environments requiring reliable control of circuits. The toggle actuator allows for easy operation, while the NEMA enclosure keeps it well-protected.

Product Information

Standard Information

• Catalog Number: 1256-W
• Brand: Leviton

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 120/277 VAC
• Dimensions: 46 inches H x 1.37 inches W x 2.29 inches D
• Contact Configuration: SPDT
• Operating Temperature: -40 to +65 degrees C
• Endurance: 50,000 cycles minimum
• Termination Type: Back Wire, Side Wire
• Warranty Length: 10 years
