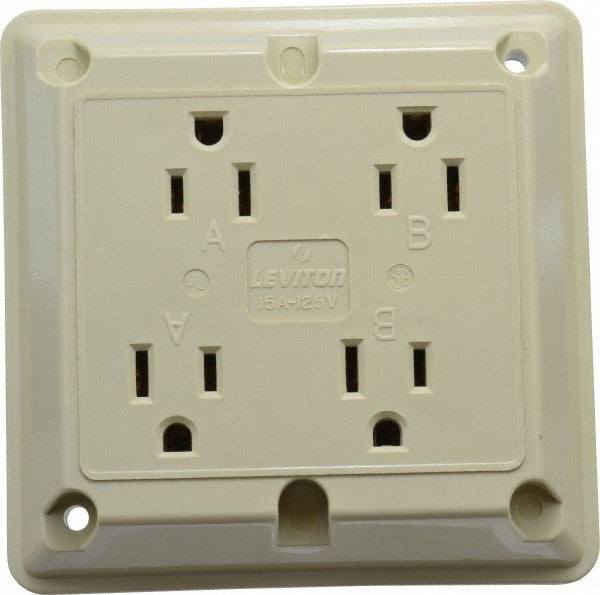

Leviton 1254-I Fourplex Receptacle Nema 5-15R 15A 125V Ivory

Product Description

The LEVITON 1254-I is a specification-grade straight blade fourplex receptacle rated at 15 amps and 125 volts AC, configured to NEMA 5-15R. It provides four grounded outlet positions in a single flush-mount device, making it well suited for commercial and institutional wiring applications where outlet density matters. The self-grounding design simplifies installation by establishing the ground path through the mounting yoke, eliminating the need for a separate ground jumper wire. The body is molded from nylon for chemical, corrosion, and impact resistance. Licensed electricians handle installation in standard single-gang or multi-gang wall boxes.

This receptacle is used in commercial offices, healthcare facilities, schools, and light industrial spaces where specification-grade durability and higher outlet count are required at a single wiring point. The fourplex configuration allows four 5-15 plug connections simultaneously without requiring a power strip or additional circuit. Its flush-mount profile integrates with standard wall plate systems. The ivory finish coordinates with conventional commercial interiors. Single-phase, 3-wire, 2-pole wiring via back-wire method keeps installation clean and code-compliant.

Key Features

• Fourplex configuration provides four NEMA 5-15R outlets in one device
• Self-grounding yoke eliminates separate ground pigtail during installation
• Specification grade construction for commercial and institutional use
• Nylon body resists chemicals, corrosion, and impact
• Back-wire method supports clean, organized termination in the box
• Meets UL 498, CSA C22.2 No. 42, NEMA WD-1 and WD-6, and ANSI C-73 standards

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation receptacle for standard flush-mount electrical boxes wired to NEMA 5-15R, 15-amp, 125-volt single-phase circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker and verify absence of voltage with a meter before handling wiring. The self-grounding feature is only effective when the device is securely fastened to a properly grounded metal box or grounded yoke assembly. Do not exceed the 15-amp circuit rating or use this device on circuits above 125 volts AC.
