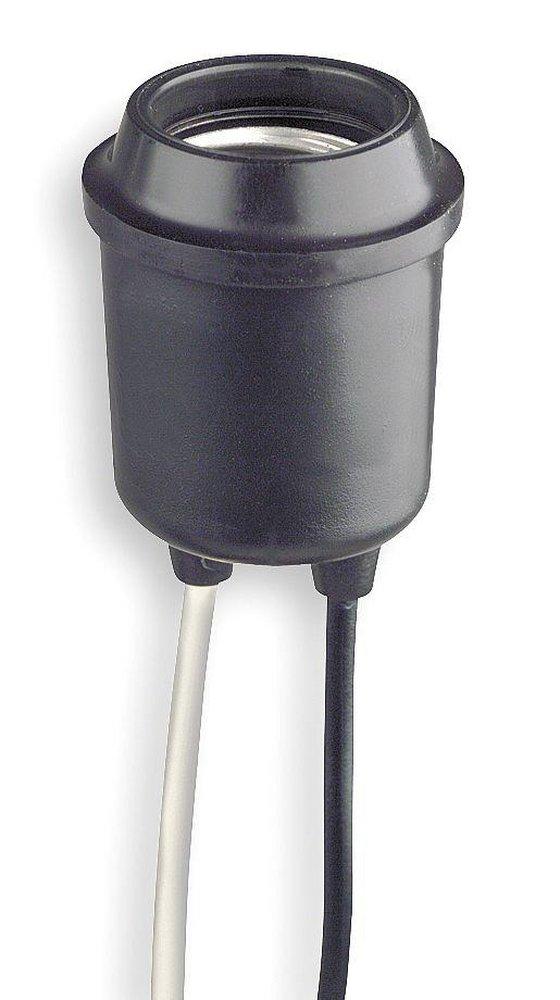

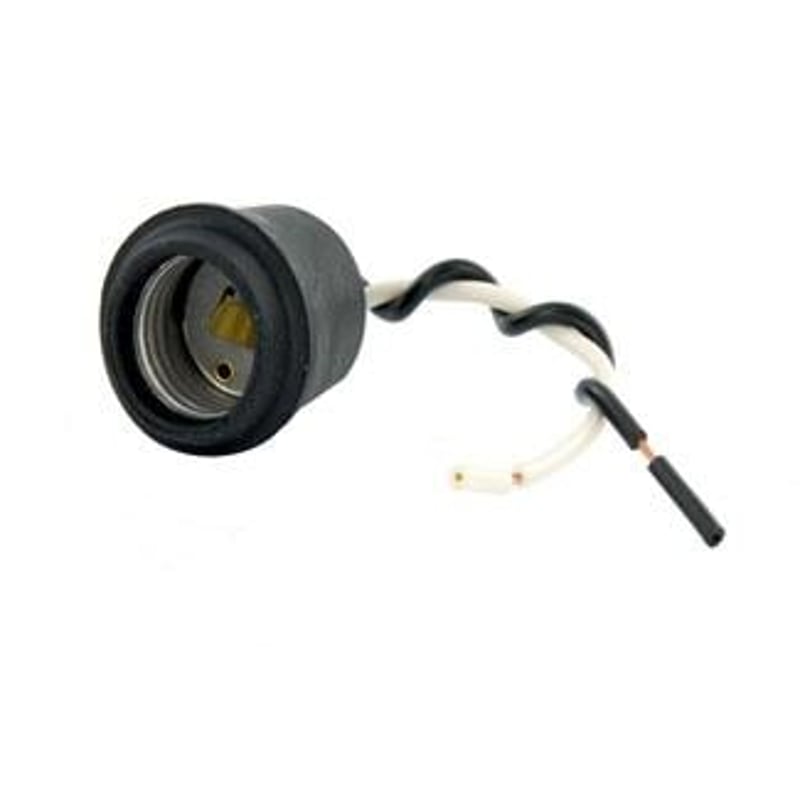

Leviton 124-D 1-Circuit Keyless Self-Clamping Lampholder 660 W

Product Description

The Leviton 124-D 1-Circuit Keyless Self-Clamping Lampholder is designed with a shoulder and supports a 660 W medium incandescent lamp at 250 VAC. Constructed from rubber, it's suitable for temporary lighting and commercial applications. The lampholder includes two 6-inch 16 AWG black and white leads for connection and has a wire strip length of 3/4-inch.

• Suitable for temporary lighting
• Keyless operation
• 1-Circuit design

Product Highlights

Ideal for temporary lighting, this keyless lampholder features a self-clamping design and pre-wired connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 124-D
• Country of Origin: Mexico

Technical Specifications

• Lamp Wattage: 660 W
• Voltage: 250 VAC
• Lamp Type: Medium Incandescent
• Voltage Rating: 250-Volts
• Maximum Load Capacity: 660-Watts
• Connection: Two 6-Inch 16-AWG black and white leads
• Wire Strip Length: 3/4-Inch
• Base Type: Medium
• Material: Rubber
• Type: 1-Circuit Keyless Self-Clamping
• Termination: 6-Inch 16AWG Leads
• Light Type: Incandescent
• Lampholder Type: Keyless
• Standard: CSA Certified (LR-1863);NOM Certified (057)
• Insulation: Rubber
• Application: Commercial
• Cable Entry: Self Clamping
• Bulb Base: Medium
• Wire Size: 16 AWG
• Power Rating: 660 WTT
• Conductor Size: 16 AWG
• Termination Type: 6-Inch 16AWG Leads
• Insulation Material: Rubber
• Bulb Base Type: Medium Screw (E26)
• Operator Type: Keyless
