Product Description

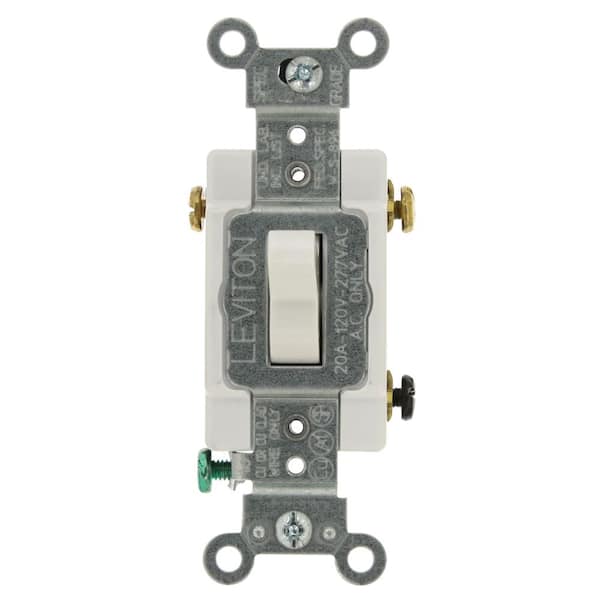

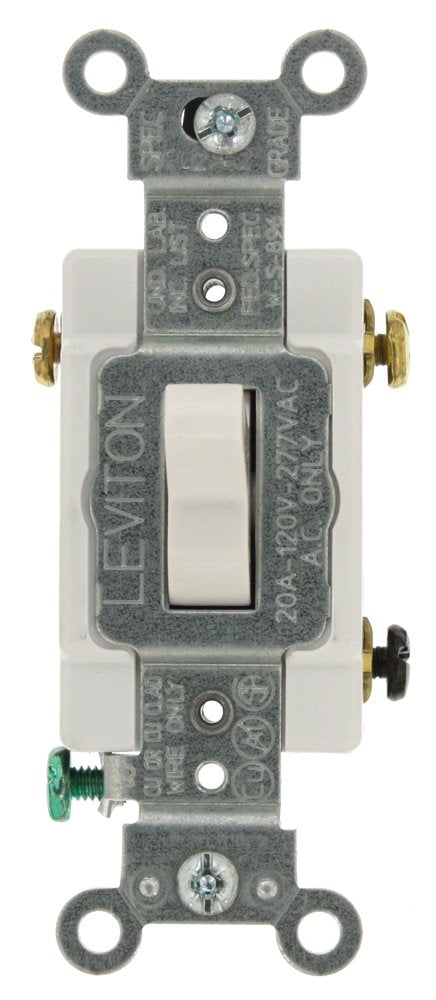

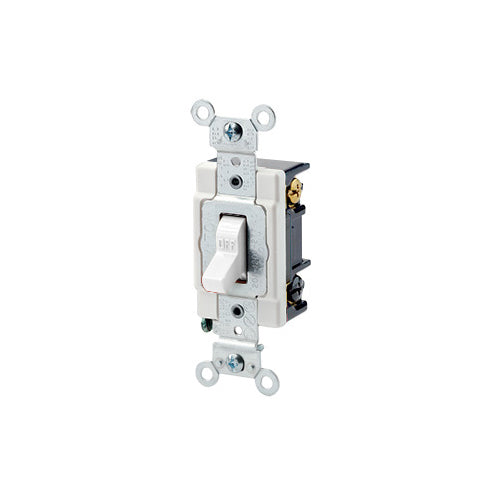

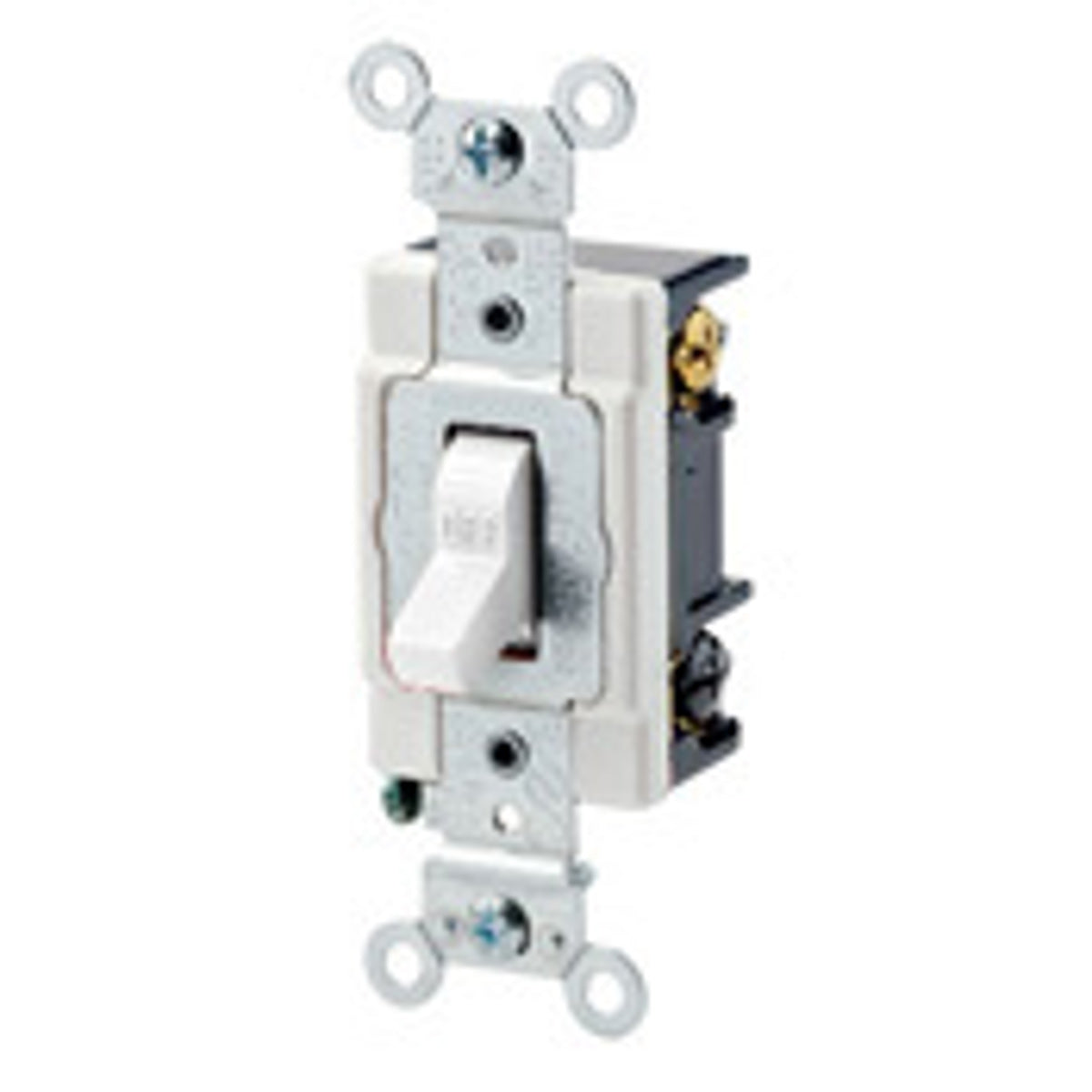

The Leviton 1223-SW is a 20-Amp, 120/277-Volt, toggle 3-way AC quiet switch with heavy-duty grade and grounding. This industrial-grade AC toggle switch is designed for extra heavy-duty applications. It ensures top-of-the-line quality and peak performance. It is suitable for commercial applications.
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
Product Highlights
This Leviton AC quiet switch is a reliable choice for industrial and commercial applications, offering durability and efficient performance.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 1223-SW
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 120/277 VAC
-
Material: Thermoplastic
-
Current Rating: 20 Amps
-
Brand: LEVITON
-
MPN: 1223-SW
-
Amperage: 20-Amp
-
Switch Type: 3-Way
-
Grade: Industrial
-
Grounding: Grounding
-
Application: Commercial
-
Approval: UL 20, CSA C22.2, NOM 057
-
Depth: 1.03 inch
-
Height: 4.06 inch
-
Operation Type: 3-Way
-
Size: 1.31 inch Width
-
Type: Toggle
-
Actuator: Toggle
-
Amperage Rating: 20 A
-
Contact Rating: 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
-
Enclosure: NEMA WD-1/WD-6
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Power Rating: 800 W, 1000 VA
-
Standards/Approvals: RoHS Compliant|ANSI C73|Federal Specification WS896E File No. E7458|UL94 V-2 Flammability Rating|ANSI (C-73)|CSA C22.2 No. 111 (File 152105) Certified|NOM (057)|UL Fed Spec WS896E (File E7458)|UL 20 Listed
-
Terminal Type: Back/Side Wire
-
RoHS Compliant: True
-
Product ID: Stamped on Strap
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Back or Side Wire
-
Terminal Screws: Steel 8-32
-
Flammability: Rated V-2 per UL 94
-
Actuator Material: Thermoplastic
-
Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
-
Temperature Rise: Maximum 30 degrees C rise
-
Dielectric Voltage: Withstands 1500V for 1 minute
-
Screw Terminal Torque: 14-18 in-lbs
-
Operating Temperature: -40 C to 65 C
-
Base Material: PBT
-
Body Material: Thermoplastic
-
Cover Material: Nylon
-
Strap Material: Steel
-
Contacts: Silver-Cadmium .031 Thick
-
Toggle: Polycarbonate
-
Connection: Back Wired;Side Wired
-
Mounting: Box
-
Standard: ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM (057);RoHS Compliant;UL Fed Spec WS896E (File E7458);UL Standard (UL 20)
-
Number Of Poles: 3-way
-
Stripped Catalog Number: 1223SW
-
Voltage Rating: 120-277V
-
UPC: 078477239261
-
GTIN: 00078477239261
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Alternative Part Number: 9087922|12131217
-
Amperage Rating UOM: A
-
Country: USA
-
IDEA Index ID: 9087922
-
Voltage Rating UOM: VAC
-
IGCC: 5200
-
Family group: WIRING DEVICES
-
WES Product code: 2734020340
-
ECCN: EAR99
-
UNSPSC: 39122211
-
Switch Style: Toggle Switch
-
Color Family: White
-
Item: Wall Switch
-
Amps AC: 20
-
Locking: No
-
Rated HP: 1
-
HP Rating: 1HP-120V 2HP-240V-277V
-
Standards: UL/CSA/NOM
-
Voltage AC: 120 to 277
-
Device Type: Toggle Switch
-
Wiring Method: Back and Side
-
Switch Function: Maintained
-
Description/Special Features: Quiet Switch
-
Country of Origin (subject to change): United States
-
Function: 3-Way
-
Horse Power: 2, 1
-
Terminations: Side, Back
-
Ground: Grounding
-
Mounting Type: Wall Mount
-
Terminal: Push On
-
Maximum Current: 20 Amps
-
Dielectric Strength: 1500V
-
Insulation Resistance: 20
-
Operation Mode: ON-OFF
-
Smart Home Compatibility: Not Smart Home Compatible
-
Compatible Devices: Lights, Fans, Heaters, Other standard electrical devices
-
Control Type: Manual
-
Number of Positions: 3
-
Circuit Type: 3-way
-
Contact Type: Normally Open
-
Connector Type: Screw
-
Specification Met: NEMA WD-6
-
International Protection Rating: IP00
