Product Description

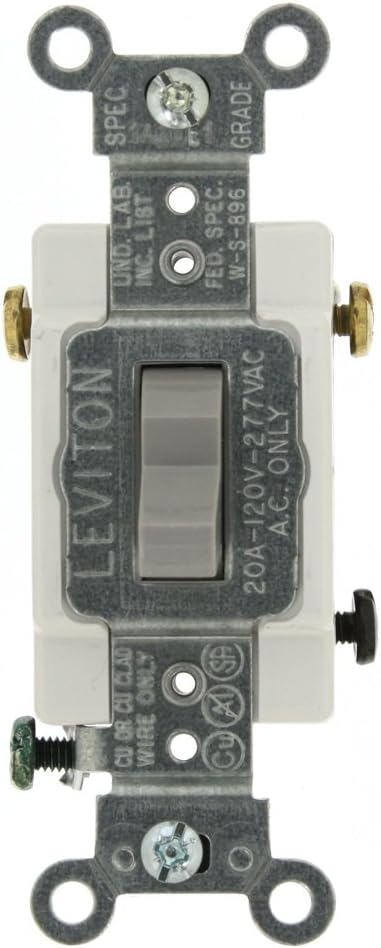

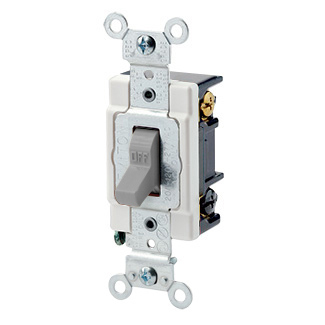

Leviton 1223-SGY is a toggle 3-way AC quiet switch designed for heavy-duty applications. This switch operates at 20 amps and can handle voltages of up to 277 volts. It features a durable thermoplastic construction and incorporates quick-connect terminals for easy installation. The switch is suitable for both commercial and residential applications.
- 20 amp current rating
- 120/277 volt compatibility
- 3-way toggle switch design
Product Highlights
This switch is ideal for controlling lighting circuits from multiple locations. It is built to meet rigorous standards for performance and reliability.
Product Information
Standard Information
-
Manufacturer: Leviton
-
Type: Toggle Switch
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 20 A
-
Color: Gray
-
Enclosure: NEMA WD-1/WD-6
-
Environmental Conditions: -40 to 65 degrees C Operating Temperature
-
Power Rating: 800 W, 1000 VA
-
Contact Rating: 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
-
Actuator: Toggle
-
Mounting: Surface
-
Terminal Type: Back/Side Wire
