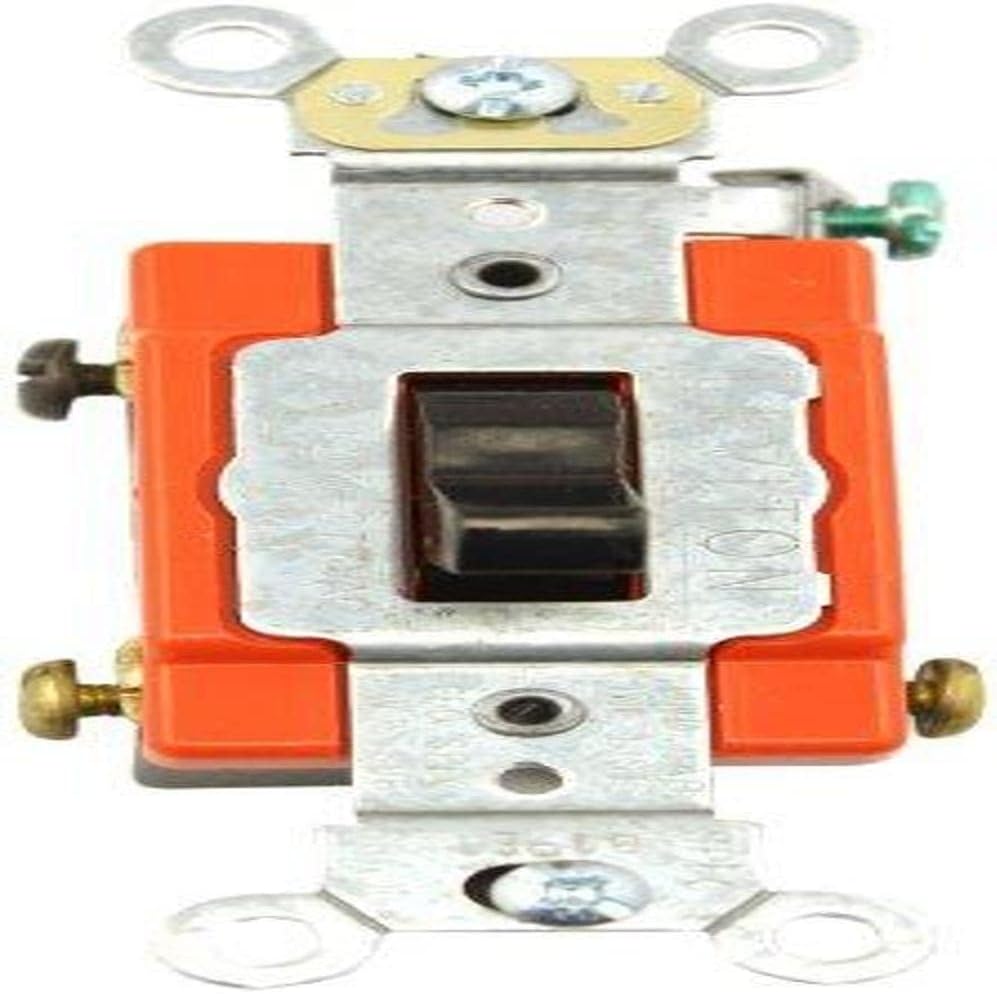

Leviton 1223-2E Toggle 3-Way AC Quiet Switch 20A 120/277V

Product Description

Leviton 1223-2E is a 20-Amp, 120/277-Volt Toggle 3-Way AC Quiet Switch. This switch is designed for heavy-duty applications and features a self-grounding mechanism. It can be wired back and side for more installation flexibility. The construction ensures that it can handle demanding environments, making it suitable for commercial use.

• Rated for 20 amps and compatible with 120/277 volts
• Self-grounding feature for enhanced safety
• Back and side wiring capabilities

Product Highlights

Leviton's switches provide dependable performance for industrial and commercial settings. Built for heavy-duty use, these switches meet the highest standards for quality and durability.

Product Information

Standard Information

• Actuator: Toggle
• Application: Commercial

Technical Specifications

• Voltage Rating: 120/277 volts
• Amperage Rating: 20 amps
• Operating Temperature: -40 to 65 degrees Celsius
• Operating Cycles: 50,000 cycles
• Color: Black
• Enclosure Type: NEMA WD-1/WD-6
• Material: Thermoplastic
