Product Description

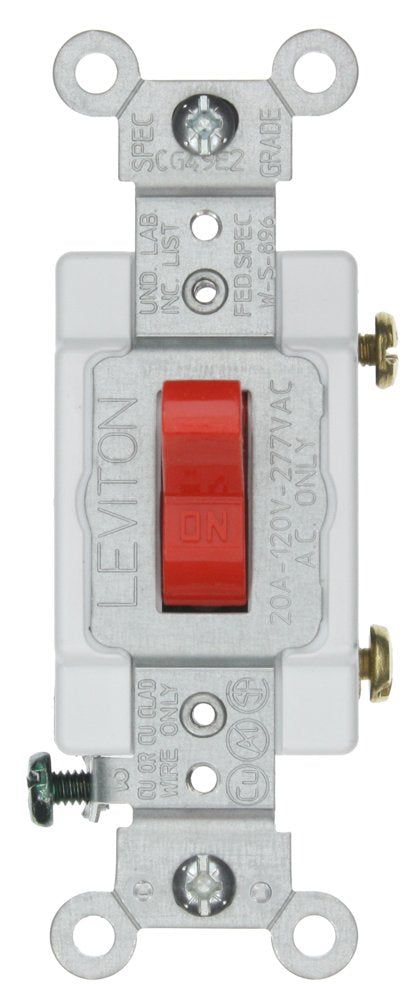

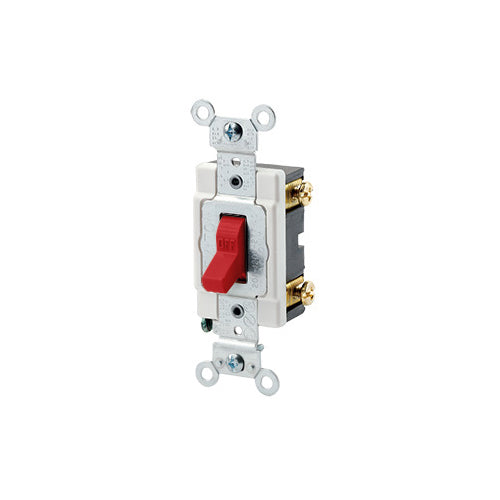

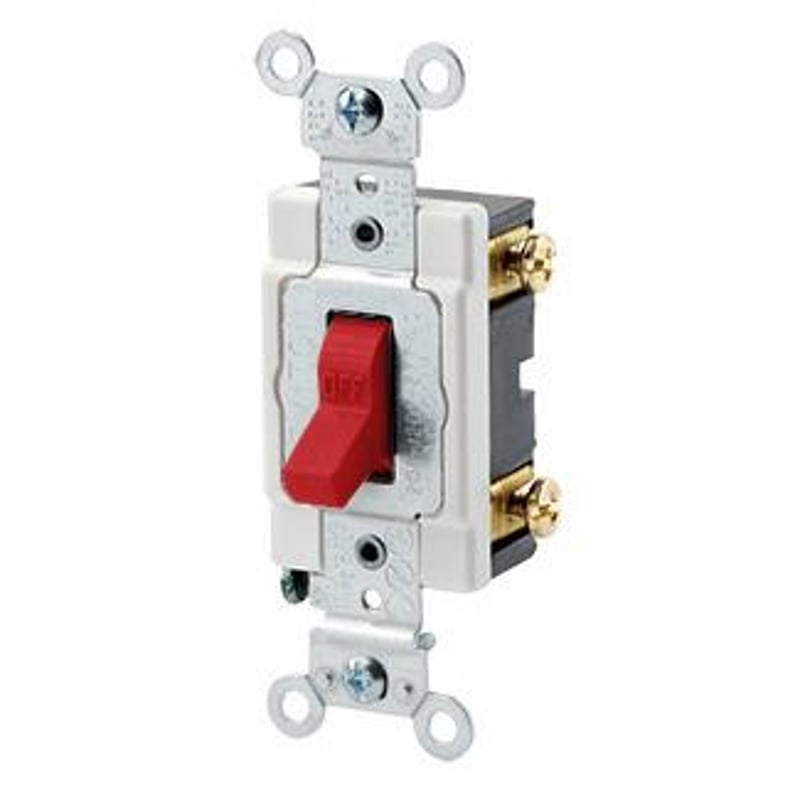

The LEVITON 1221-SR is an industrial grade AC toggle switch designed for heavy-duty applications. This switch offers top-of-the-line quality and peak performance. It features a fully enclosed switch mechanism in a rugged housing for strength and arc resistance. Ideal for commercial applications.
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts prevent sticking and welding
- Fully enclosed switch mechanism in rugged housing
Product Highlights
This toggle switch ensures unmatched versatility and reliability for demanding industrial environments.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 1221-SR
-
Country of Origin: United States
Technical Specifications
-
UNSPSC Code: 39121400
-
Type: Toggle Switch
-
Actuator: Toggle
-
Material: Thermoplastic
-
Mounting: Surface
-
Enclosure: NEMA WD-1/WD-6
-
Manufacturer: LEVITON
-
Power Rating: 800 W, 1000 VA
-
Terminal Type: Back/Side Wire
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 20 A
-
Number of Poles: 1 Pole
-
Contact Configuration: SP
-
Environmental Conditions: -40 to 65 deg C Operating Temperature
-
Standards/Approvals: ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
-
Application: Commercial Applications
-
Contact Rating: 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
-
Country of Origin: USA
-
RoHS Compliant: True
-
Toggle: Polycarbonate
-
Contacts: Silver-Cadmium .031 Thick
-
Grounding: Self-Grounding
-
Base Material: PBT
-
Body Material: Thermoplastic
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Back or Side Wire
-
Cover Material: Nylon
-
Strap Material: Steel
-
Terminal Screws: Steel 8-32
-
Flammability: Rated V-2 per UL 94
-
Actuator Material: Thermoplastic
-
Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
-
Temperature Rise: Maximum 30 degress C rise
-
Dielectric Voltage: Withstands 1500V for 1 minute
-
Screw Terminal Torque: 14-18 in-lbs
-
Operating Temperature: -40 C to 65 C
-
MPN: 1221-SR
-
Stripped Catalog Number: 1221SR
-
Catalog Description (MFR): 20-Amp, 120/277-Volt, Toggle Single-Pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Red
-
Concatenated Invoice Description: RD SWITCH TOGGLE SP 20A-120/277VAC
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
UNSPSC: 39122211
-
IGCC: 5200
-
Action: SP
-
Mounting Type: Box
-
Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM (057);CSA C22.2 No. 111 (File 152105);UL Fe
-
Brand Name: Leviton
-
Connection: Back Wired;Side Wired
-
Family group: WIRING DEVICES
-
Number Of Poles: 1
-
WES Product code: 2734017410
-
Taxonomy Assignment: 39122211.52
-
Grade: Industrial
-
Torque: 12 lb-in
-
Voltage: 120/277 Volt
-
Sub Brand: INDUSTRIAL SWITCHES
-
Dielectric: 1500 V
-
Horsepower: 1 hp
-
Device Type: Toggle Switch
-
Max Current: 16 A
-
Product UPC: 07847723987
-
12-Digit UPC: 078477239872
-
Applications: Commercial
-
Connection Type: Back Wired,Side Wired
-
Toggle Material: Polycarbonate
-
Contact Material: Silver-Cadmium
-
Termination Type: Back Wire,Side Wire
-
Flamability Class: Rated V-2 Per UL 94
-
ECCN: EAR99
-
Switch Style: Toggle Switch
-
Color Family: Red
-
No. of Poles: 1
-
Function: Single-Pole
-
ANSI: C-73
-
CSA C22.2 No. 111: File #152105
-
NEMA: WD-1 & WD-6
-
NOM: 057
-
UL Fed Spec WS896E: File #E7458
-
UL Standard: UL 20
-
Amperage: 20
-
Made in USA: Yes
-
UPC: 078477239872
-
GTIN: 00078477239872
-
Cross Reference Products: 1221R
-
Volts AC: 120, 277
-
Amps: 20
-
Poles: 1
-
GTiN: 50078477239877
