Product Description

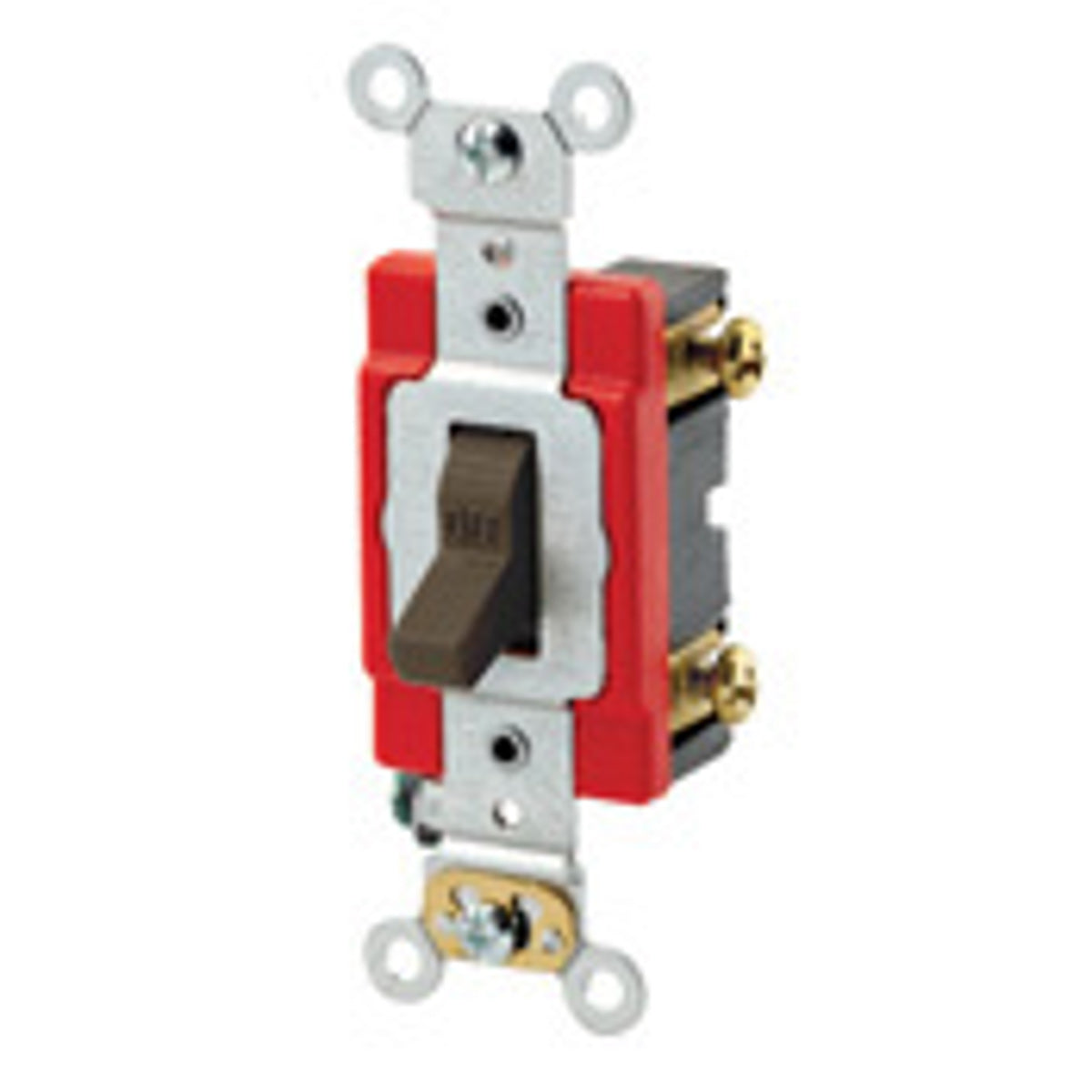

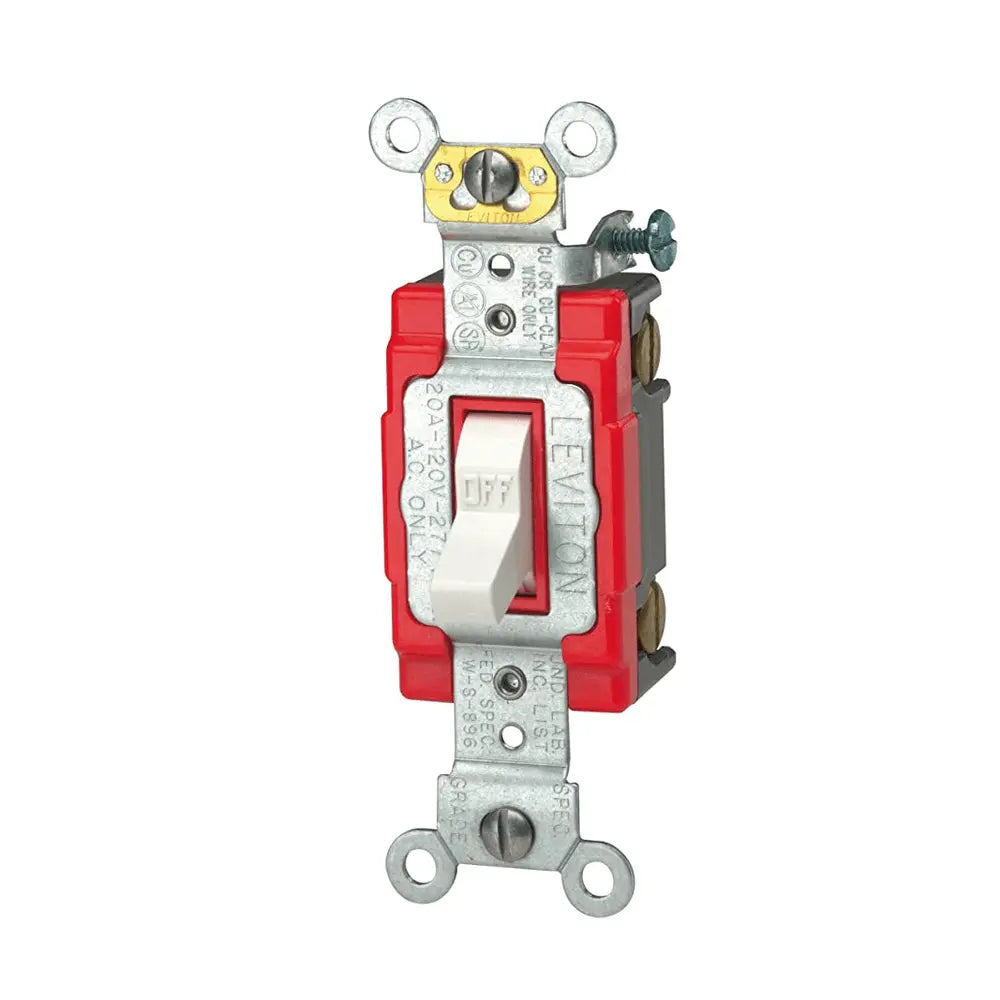

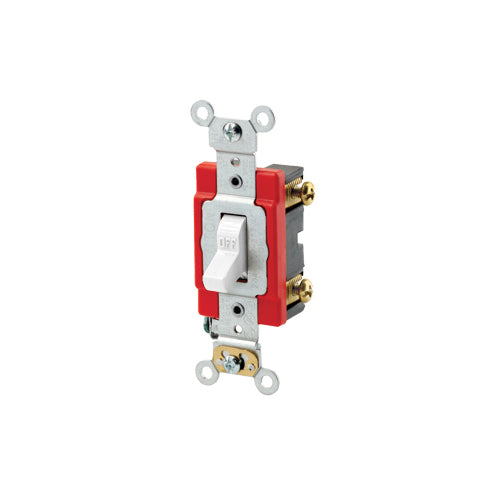

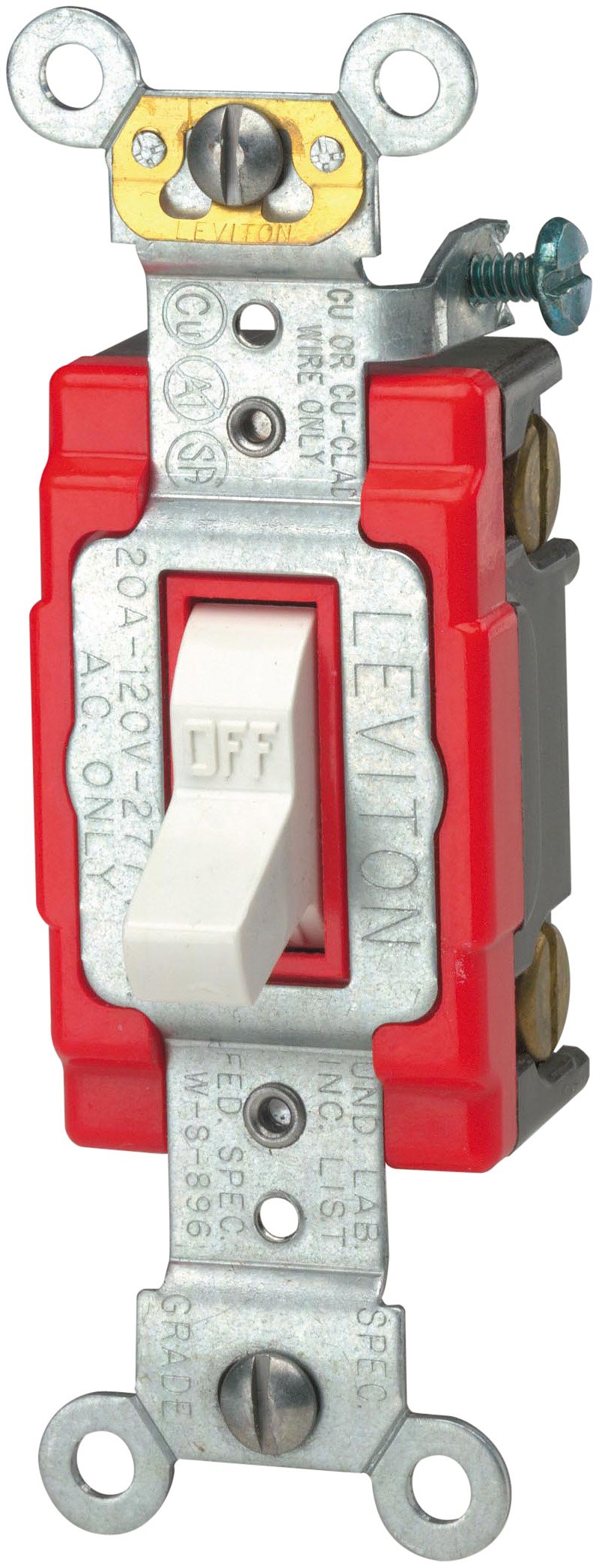

The Leviton 1221-2W is an AC quiet toggle switch designed for heavy-duty industrial applications. This self-grounding switch operates at 120/277 VAC and 20 amps. It features a thermoplastic body and a toggle actuator. The switch is suitable for surface mounting and includes back and side wire terminals.
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts prevent sticking and pitting
- Fully enclosed switch mechanism in rugged housing for arc resistance
Product Highlights
This Leviton AC toggle switch offers top-tier quality and reliable performance for demanding industrial environments.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 1221-2W
-
Country of Origin: US
Technical Specifications
-
Type: Self-Grounding
-
Actuator: Toggle
-
Material: Thermoplastic
-
Mounting: Surface
-
Enclosure: NEMA WD-1/WD-6
-
Power Rating: 800 W, 1000 VA
-
Terminal Type: Back/Side Wire
-
Contact Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 20 A
-
Number of Poles: 1
-
Operating Cycles: 50000 Cycles
-
Contact Configuration: SP
-
Environmental Conditions: -40 to 65 deg C Operating Temperature
-
Operation Type: 1-Pole
-
Application: Industrial, Specification Grade
-
Approval: UL 20, CSA C22.2, NOM 057
-
Standard: UL 20
-
Connection: Back and Side Wire
-
Width: 1.31 Inches
-
Height: 4.06 Inches
-
Insulated: No
-
Country of Origin: US
-
Temperature Rise: 30 degrees C
-
Dielectric Voltage: Withstands 1500V for 1 minute
-
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
-
Endurance: 50,000 cycles minimum
-
HP Rating: 1HP-120V 2HP-240V-277V
-
Body Material: Thermoplastic
-
Strap Material: Steel
-
Flamability Class: Rated V-2 Per UL 94
-
Termination Type: Back Wire,Side Wire
-
Contact Material: Silver Alloy
-
Torque: 12 lb-in
-
Device Type: Toggle Switch
-
Grade: Industrial
-
Grounding: Self-Grounding
-
Action: Off
