Product Description

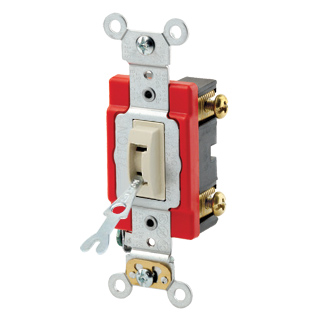

Leviton 1221-2IL is a toggle locking single-pole AC quiet switch designed for heavy-duty industrial applications. This switch operates at a voltage rating of 120/277 VAC with a current of twenty amps. It is made with thermoplastic and includes a polycarbonate toggle for durability. Its design features a self-grounding mechanism making it suitable for a wide range of commercial uses.
- 20 amp, 120/277 Volt rating for versatile applications
- Meets high standards for safety and durability
- Constructed with thermoplastic and silver alloy contacts for longevity
Product Highlights
This toggle switch is built for extra heavy-duty use and provides a reliable performance in demanding conditions.
Product Information
Standard Information
-
Brand: Leviton
-
Catalog Number: 1221-2IL
Technical Specifications
-
Amperage Rating: 20 A
-
Voltage Rating: 120/277 VAC
-
Power Rating: 1/2 hp
-
Operating Temperature: -40 to 60 degrees C
-
Contact Configuration: Single Pole
-
Mounting Type: Surface
-
Enclosure Type: NEMA WD-1/WD-6
-
Dimensions: 46 inches x 1.31 inches x 13 inches
-
Dielectric Rating: 1500 V
