Product Description

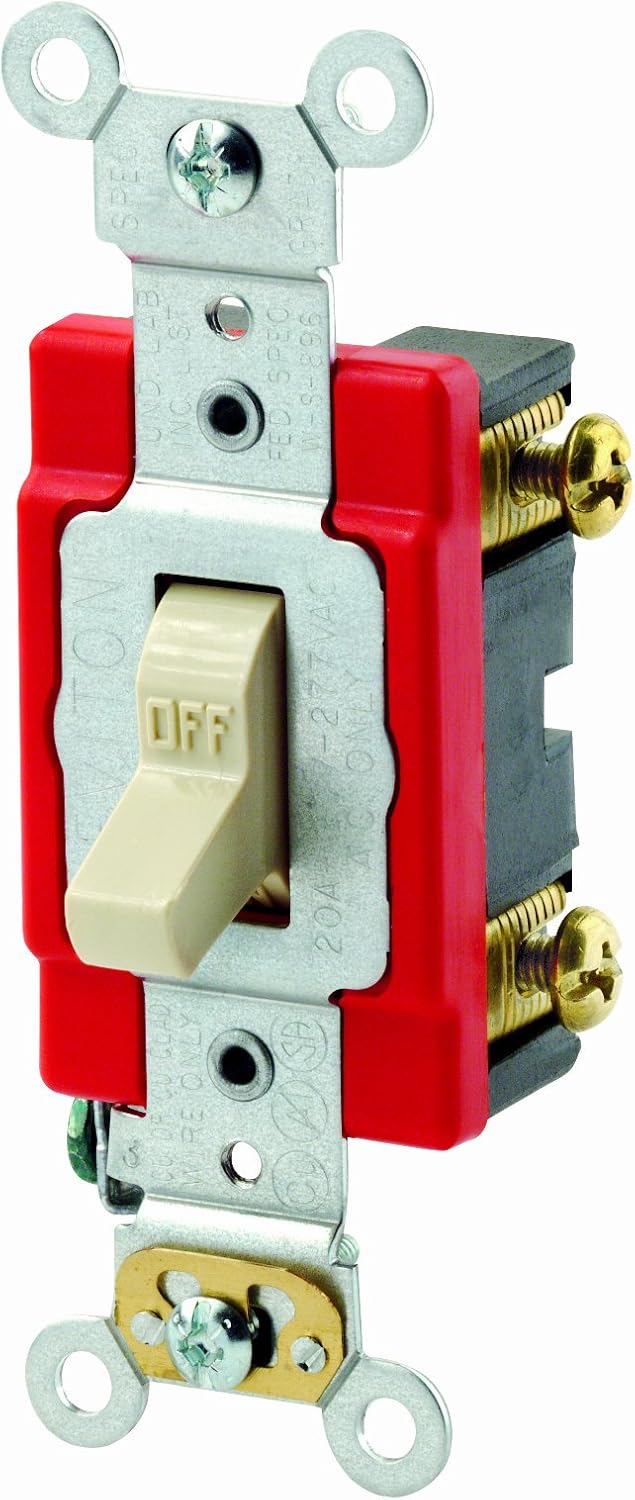

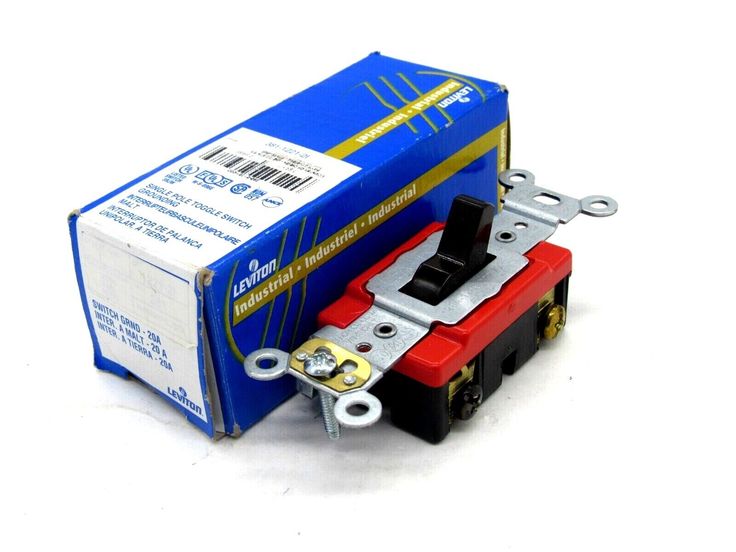

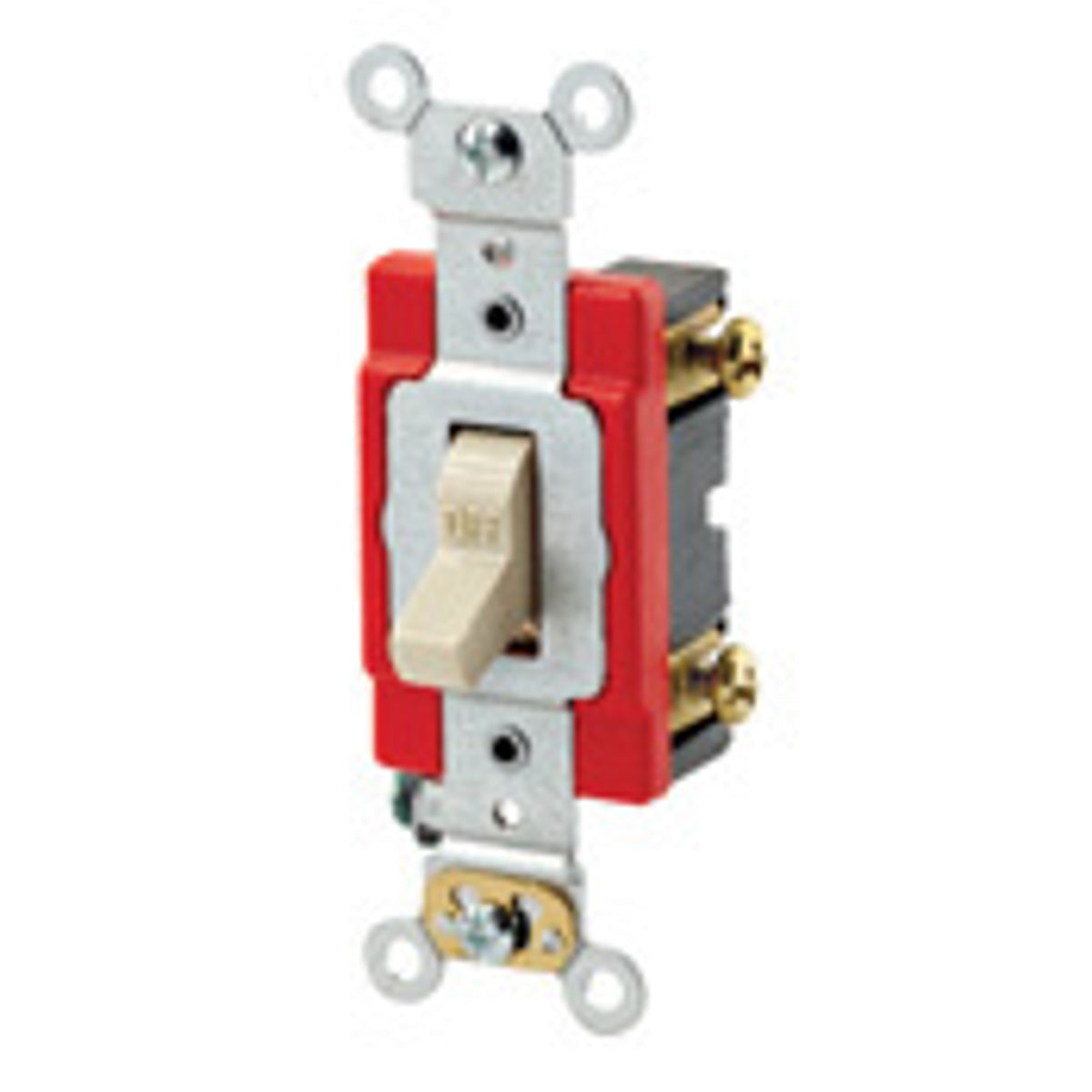

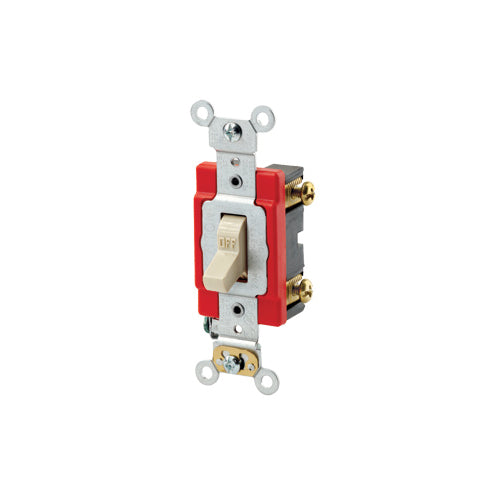

The Leviton 1221-2I is a toggle single-pole AC quiet switch. This extra heavy-duty spec grade, self-grounding switch is designed for industrial applications. Rated for 20-Amp and 120/277-Volt, it ensures top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
- 20-Amp
- 120/277-Volt
- Self Grounding
Product Highlights
This toggle switch is ideal for industrial settings, offering a robust design and reliable performance for demanding applications.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 1221-2I
-
Country of Origin: US
Technical Specifications
-
Voltage: 120 Volts
-
Material: Thermoplastic Housing, Polycarbonate Toggle
-
Switch Type: Single Pole
-
Switch Style: Toggle
-
Connector Type: Quick Connect
-
Current Rating: 20 Amps
-
Operation Mode: ON-OFF
-
Contact Material: Silver Alloy
-
Specification Met: CSA
-
AC Adapter Current: 20 Amps
-
Batteries Required?: No
-
Included Components: 1221-2I
-
Insulation Resistance: 20 Megaohms
-
Voltage Rating: 120/277 VAC
-
Power Rating: 800 W, 1000 VA
-
Contact: SP
-
Type: Toggle, Extra Heavy Duty
-
Wiring: Back, Side
-
Wall Plate Included: No
-
Application: Industrial, Specification Grade
-
Approval: UL 20, CSA C22.2, NOM 057, UL FEDERAL SPEC WS896E
-
Operating Temperature: -40 to 65 Deg C
-
Grounding Type: Self Grounding
-
Strap Material: Galvanized Steel
-
Wire Size: 14 to 10 AWG (Back), 14 to 12 AWG (Side)
-
Poles: 1
-
Actuator: Toggle
-
Enclosure: NEMA WD-1/WD-6
-
Mounting: Surface
-
Terminal: Back/Side Wire
-
Operating Cycles: 50000 Cycles
-
Terminal Type: Back/Side Wire
-
RoHS Compliant: True
-
Endurance: 50,000 cycles minimum
-
Grounding: Self-Grounding
-
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
-
Termination: Back or Side Wire
-
Base Material: Thermoplastic
-
Cover Material: Thermoplastic
-
Temperature Rise: Maximum 30 degress C rise
-
Dielectric Voltage: Withstands 1500V for 1 minute
-
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
-
Screw Terminal Torque: 14-18 in-lbs
-
Number Of Poles: 1 Pole
-
Rated Voltage: 120/277V AC
-
Rated HP: 1
-
HP Rating: 1HP-120V 2HP-240V-277V
-
ANSI: C-73
-
CSA C22.2 No. 111: File #152105
-
NEMA: WD-1 & WD-6
-
NOM: 057
-
UL Fed Spec WS896E: File #E7458
-
UL Standard: UL 20
-
Flammability: Rated V-2 per UL 94
-
Maximum Load Capacity: 1 hp at 120 Volt, 2 hp at 240 Volt
-
Contact Configuration: SPST
-
Terminal Accommodations: 14-10 AWG Back, 14-12 AWG Back Wire
-
Temperature Rating: -40 to 65 deg C
-
Standards: UL 20 Listed, CSA C22.2 No.111, 152105 Certified, Federal Specification: WS896E, NOM 057 Certified, ANSI C-73, NEMA WD-1, WD-6, RoHS Compliant
-
Description/Special Features: Quiet Switch
-
Amperage Rating: 20 A
-
Action: SP
-
Mounting Type: Box
-
Connection: Back Wired;Side Wired
-
Country of Origin: United States
-
Grade: Extra Heavy-Duty Industrial Specification
-
Toggle: Polycarbonate
-
Amps AC: 20
-
Function: Single-Pole
-
Device Type: Toggle Switch
-
Switch Function: Maintained
-
Wiring Method: Back and Side
-
Application Environment: Industrial
-
Number of Positions: 1
-
Circuit Type: Single Pole
-
Maximum Current: 20 Amps
-
Operating Voltage: 120 Volts
-
Control Type: Manual
-
Contact Type: Silver Cadmium Oxide
-
Compatible Devices: Industrial and commercial electrical systems, devices adhering to UL 20, CSA C22.2, NOM 057, and UL Federal Spec WS896E standards
