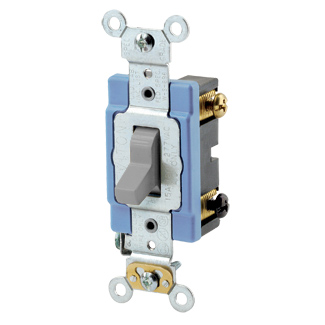

Leviton 1203-2GY 3-Way Self-Grounding AC Quiet Toggle Switch 120/277 VAC 15 Amp

Product Description

The Leviton 1203-2GY is a three-way self-grounding AC quiet toggle switch designed for durability and reliability in commercial and industrial environments. It operates at 120/277 VAC and has a current rating of fifteen amperes.

• Heavy gauge copper alloy brush arm enhances performance.
• Silver alloy contacts provide long service life.
• Fully enclosed design increases strength and resistance to tracking and arcing.

Product Highlights

This toggle switch offers extensive versatility for heavy-duty applications, self-grounding capabilities, and robust environmental resistance.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: 1203-2GY

Technical Specifications

• Voltage Rating: 120/277 VAC
• Current Rating: 15 A
• Power Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Operating Cycles: 50000 cycles minimum
• Material: Thermoplastic
• Color: Gray
• Dimensions: 46 inches H x 1.31 inches W x 13 inches D
• Environmental Conditions: -40 degrees C to 65 degrees C
• Enclosure Standard: NEMA WD-1/WD-6
• Mounting Type: Surface mount, Back/Side wired
