Product Description

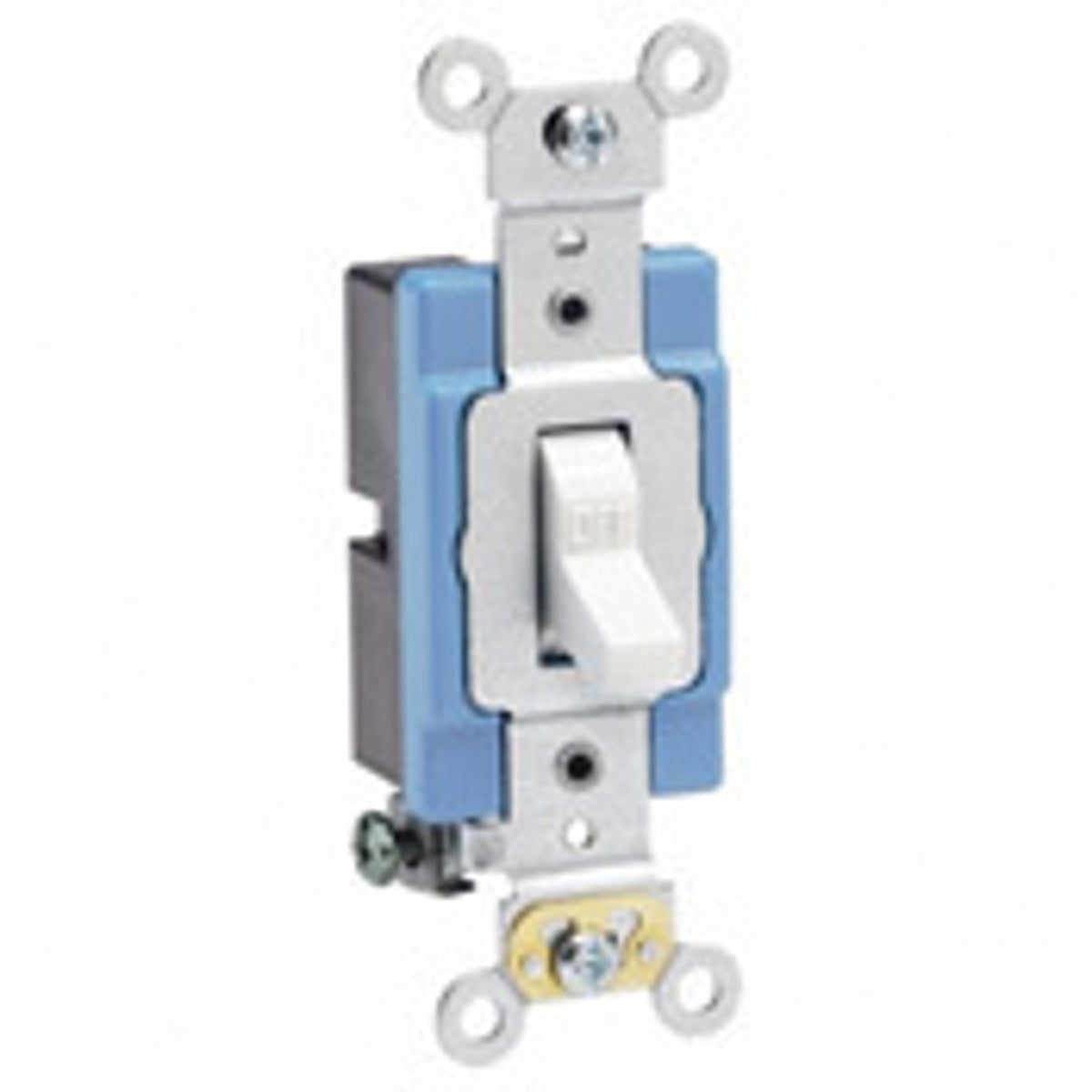

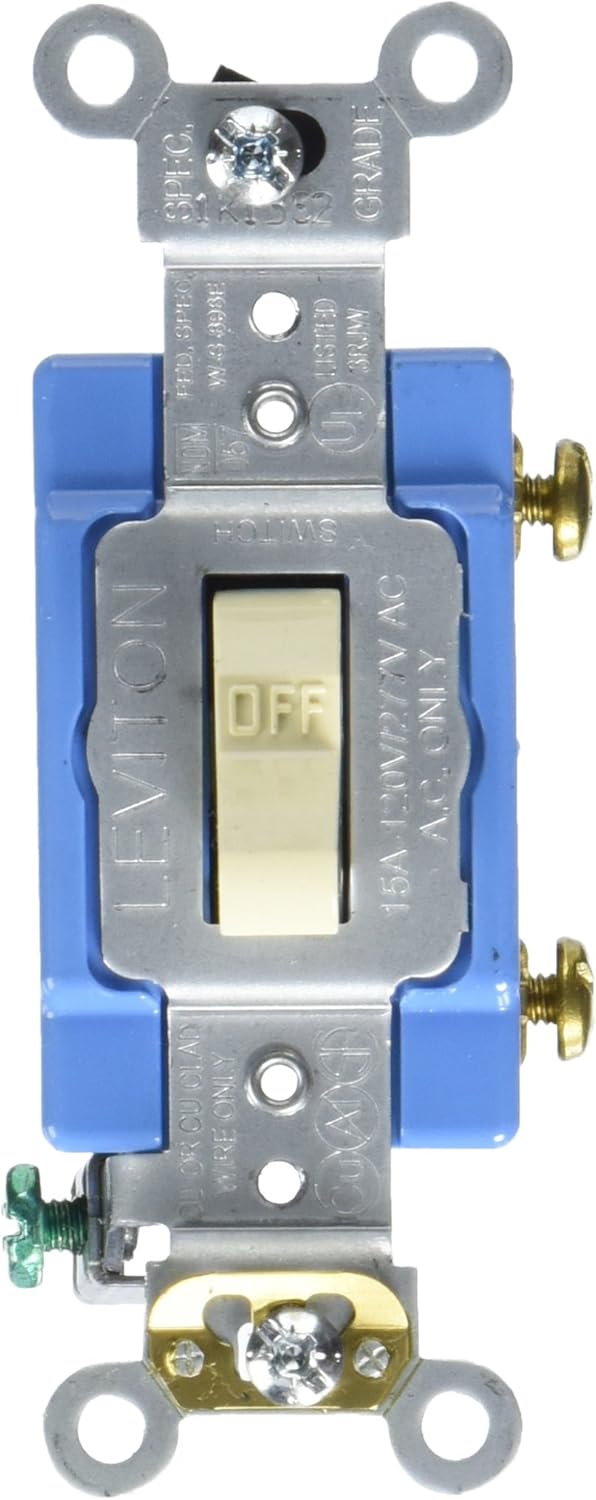

The Leviton 1201-2I is a toggle single-pole AC quiet switch designed for 120/277 volts and 15 amperes. This switch features a thermoplastic body with a polycarbonate toggle. Its self-grounding capabilities make it suitable for extra heavy-duty applications in commercial, residential, and industrial settings.
- Self-grounding design for reliable performance
- Minimum endurance rating of 50000 cycles
- Compatible with back and side wiring for flexible installation
Product Highlights
This switch is designed for industrial use, ensuring high performance and durability. It is suitable for various applications and provides reliable operation.
Product Information
Standard Information
-
Catalog Number: 1201-2I
-
Manufacturer: Leviton
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 A
-
Power Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
-
Contact Configuration: SP
-
Operating Temperature: -40 to 65 degrees C
-
Operating Cycles: 50000 cycles
-
Material: Thermoplastic
-
Mounting Type: Surface mount
-
Enclosure: NEMA WD-1/WD-6
