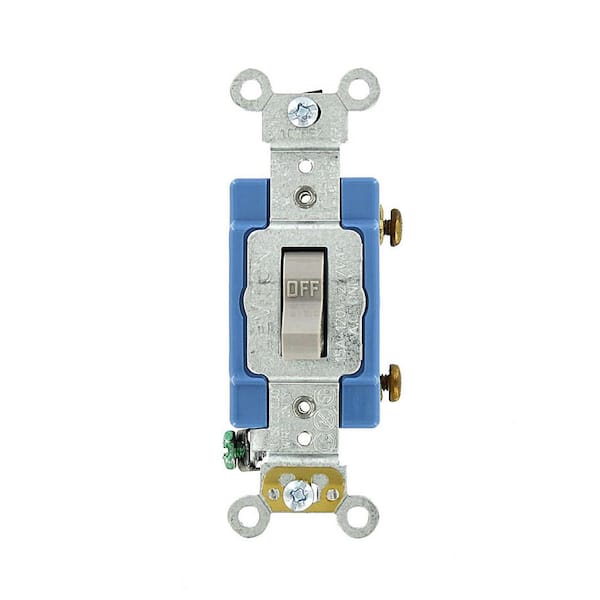

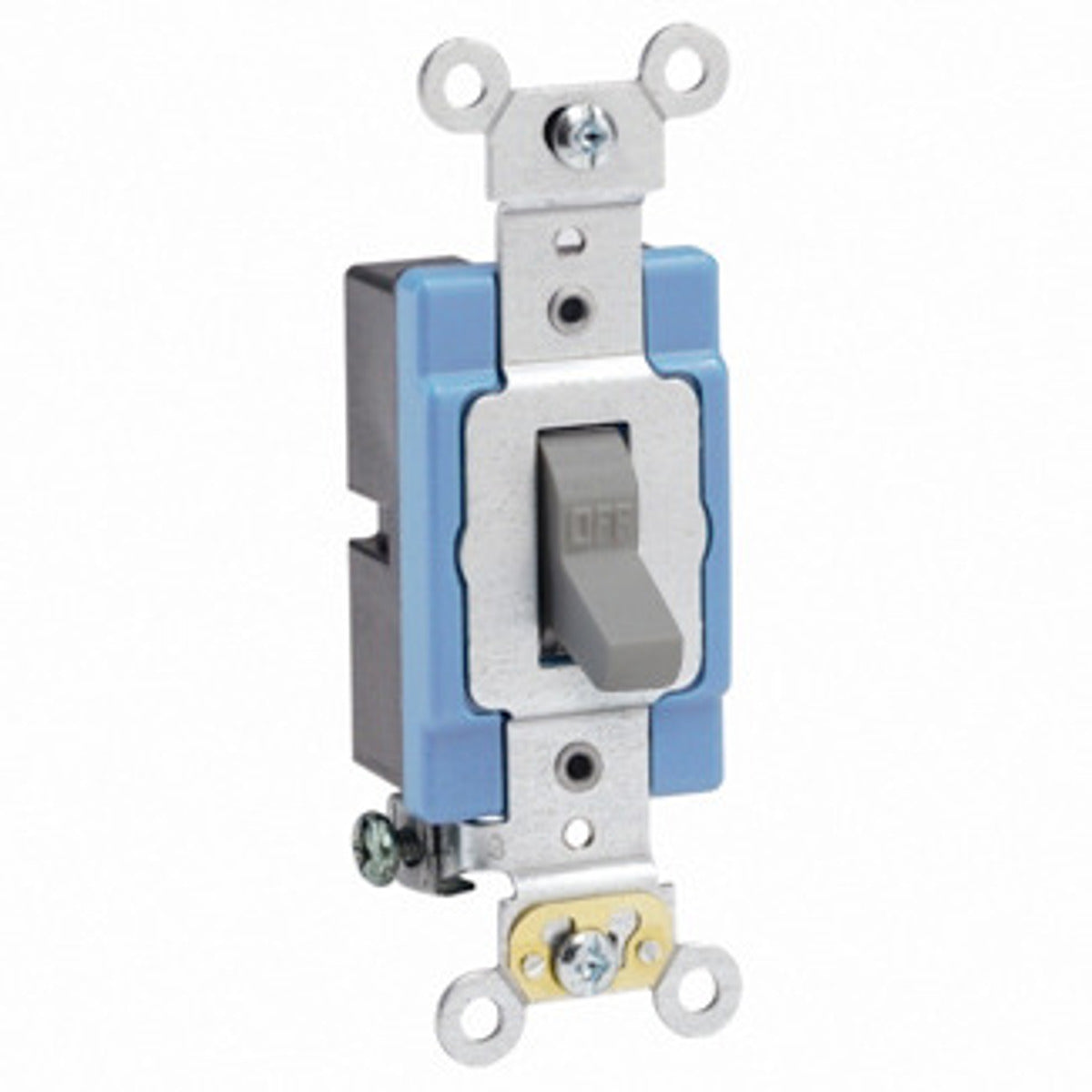

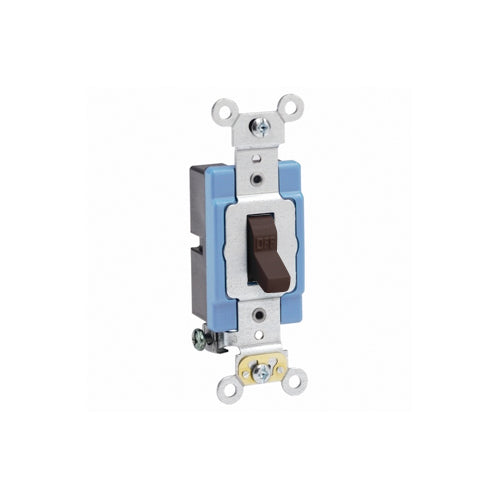

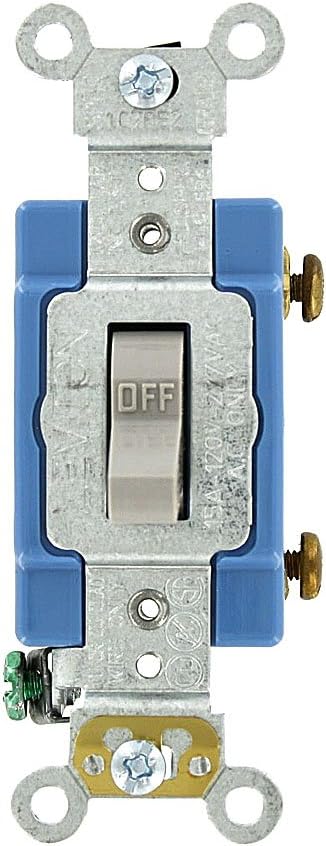

Leviton 1201-2GY 15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Grade, Self Grounding

Product Description

The LEVITON 1201-2GY is a 15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch with Extra Heavy Duty Grade and Self Grounding. This switch is designed for industrial use and represents top-of-the-line quality and peak performance. It is suitable for commercial, residential, and industrial buildings.

• 15 Amp, 120/277 Volt
• Toggle Single-Pole AC Quiet Switch
• Extra Heavy Duty Grade

Product Highlights

This Leviton toggle switch is built for heavy-duty use with industrial-grade durability and easy installation. It allows users to operate one device from a single location.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1201-2GY
• Country of Origin: United States

Technical Specifications

• Color: Gray
• Voltage: 120/277 VAC
• Material: Thermoplastic
• Switch Type: Single Pole
• Switch Style: Toggle
• Mounting: Surface
• Connector Type: Screw
• Current Rating: 15 A
• Operation Mode: ON-OFF
• Contact Material: Silver Alloy
• Actuator: Toggle
• Enclosure: NEMA WD-1/WD-6
• Power Rating: 1/2, 2 hp
• Terminal Type: Back/Side Wire
• Contact Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Number of Poles: 1
• Operating Cycles: 50000 Cycles
• Contact Configuration: SP
• Environmental Conditions: -40 to 65 deg C Operating Temperature
• Brand: LEVITON
• MPN: 1201-2GY
• Action: Single pole
• UNSPSC: 39122211
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant
• Connection: Back Wired;Side Wired
• Application: Commercial Applications
• Product Name: AC Quiet Switch
• Flammability: Rated V-2 per UL94
• Catalog Description (MFR): 15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Grade, Self Grounding, Gray
• Invoice Description (MFR): GY SW TGL SP 15A120/277VAC.
• Manufacturer Name: Leviton
• UPC: 078477240663
• GTIN: 00078477240663
• Alternative Part Number: 9095218|12132778
• Dielectric Voltage: Withstands 1500V for 1 minute
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degress C rise
• Endurance: 50,000 cycles minimum
• Strap Material: Steel
• Base Material: Thermoplastic
• Toggle: Polycarbonate
• Cover Material: Thermoplastic
• Terminal Screws: Brass 8-32
• Grounding Screw: Brass 8-32
• Ground Clips: Brass
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Product ID: Ratings are permanently marked on device
• Torque Range: 12-14 inch pounds
• Screw Terminal Torque: 14-18 in-lbs
• Termination: Back or Side Wire
• Device Type: Toggle Switch
• Function: Single-Pole
• Grade: Extra Heavy-Duty Industrial Specification Grade
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• RoHS: Compliant
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Rated Voltage: 120/277V AC
• Color Family: Gray
• No. of Poles: 1
• Grounding: Self-Grounding
• HP Rating: 1/2HP-120V 2HP-240V-277V
• Operating Temperature: -40 to +65 DEG C
