Leviton 114-GFNT2-00E 20A Self-test Gfci Outlet Nema 5-20R

Product Description

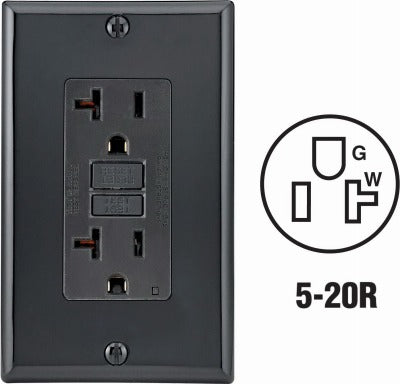

The LEVITON MFG CO 114-GFNT2-00E is a residential-grade, self-test GFCI (ground fault circuit interrupter) outlet rated at 20 amps. The self-test function automatically verifies protection status at regular intervals, eliminating the need for manual button testing to confirm the device is working. It features a 2-pole, 3-wire configuration and a NEMA 5-20R receptacle face, making it suitable for 20-amp branch circuits. Monochromatic buttons, a self-grounding clip, and brass double-wipe contacts and clamps round out the design. A nylon wall plate is included. Licensed electricians install this device on residential circuits where GFCI protection is required by code.

This outlet is intended for residential installations on 20-amp, 120-volt branch circuits. Typical applications include kitchens, bathrooms, garages, unfinished basements, crawl spaces, outdoor receptacle locations, and any other area where the NEC mandates ground fault protection. The 20-amp feed-through capability allows downstream receptacles on the same circuit to receive GFCI protection when wired through this device. Both back-wire and side-wire termination options are supported, giving installers flexibility in box-fill and wiring configurations. Each package contains 10 units.

Key Features

• Automatic self-test function continuously monitors GFCI protection status without manual intervention
• 20-amp feed-through allows GFCI protection of downstream devices on the same circuit
• NEMA 5-20R receptacle face accepts both 15-amp and 20-amp plugs
• Brass double-wipe contacts and clamps provide reliable, low-resistance termination
• Self-grounding clip simplifies grounding to metal outlet boxes
• Back-wire and side-wire capability supports flexible installation configurations
• Nylon wall plate included in each unit

Compatibility

Designed as a residential-grade GFCI outlet replacement or new-installation device for standard single-gang outlet boxes on 20-amp, 120-volt branch circuits wired to NEMA 5-20R configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before wiring. When using feed-through protection, connect upstream line conductors to the LINE terminals only — connecting load conductors to LINE terminals will defeat downstream protection. Confirm the self-test indicator status after restoring power to verify proper operation.
