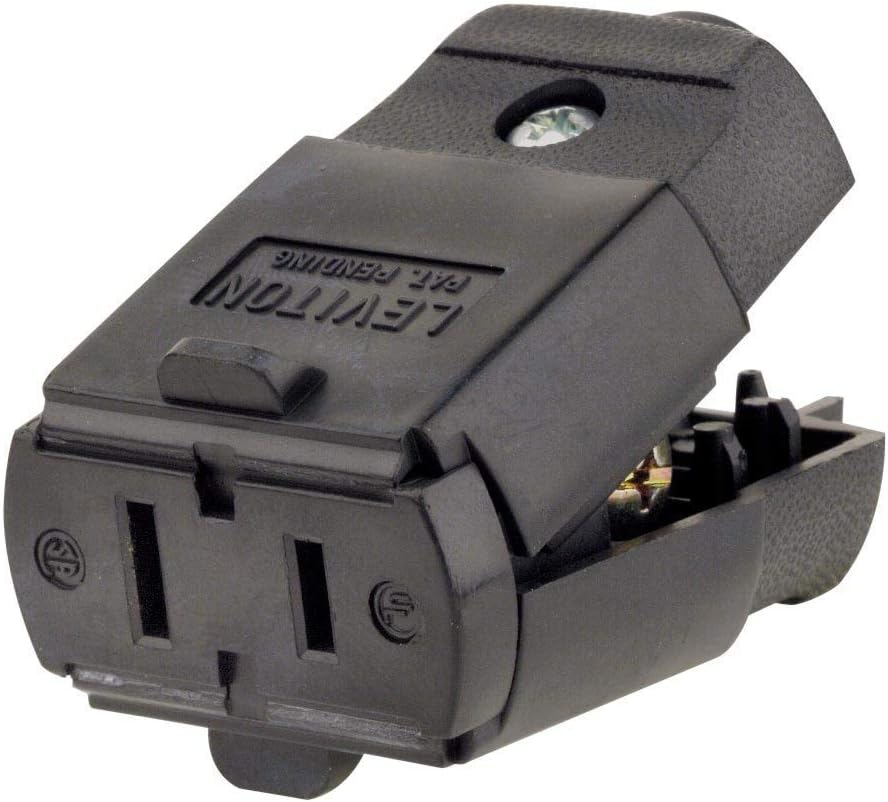

Product Description
The Leviton 102-EP is a 15 Amp, 125 Volt straight blade, residential grade connector. This cable mount, light duty, non-grounding polarized connector features deep-slotted, backed out terminal screws that draw backwire clamps securely for maximum conductivity. It is designed for NEMA 1-15R/1-15P configurations.
- Built-in cord grip adjusts automatically for use with no 18-3 through no 12-3 cords (0.245 to 0.655 in)
- Triple drive head screws standard, Philips and Robertson
- NEMA configuration number and rating molded on face of device for easy identification
Product Highlights
This Leviton connector offers easy alignment during wiring and is dirt and moisture resistant. It is suitable for residential applications.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 102-EP
-
Country of Origin: MX
Technical Specifications
-
Voltage: 125 Volts
-
Amperage: 15 Amps
-
Material: Brass
-
Plug Format: Type A
-
Number of Wires: 2
-
Connector Type: Plug in
-
Number of Poles: 2
-
Specification Met: NEMA
-
Batteries Included?: No
-
Batteries Required?: No
-
Color: Black
-
Certification: NEMA
-
Amperage Rating: 15 A
-
Cord Diameter: 0.25 in
-
Grade: Residential
-
NEMA Rating: NEMA 1-15R/1-15P
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Screw
-
Type: Cable Mount Light Duty Non-Grounding Polarized
-
Voltage Rating: 125 VAC
