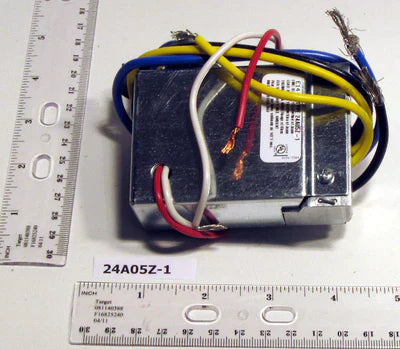

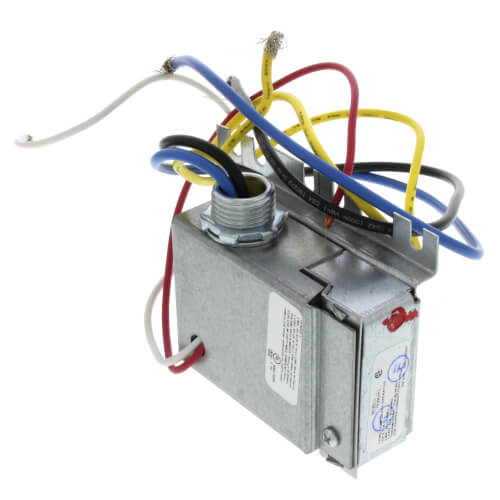

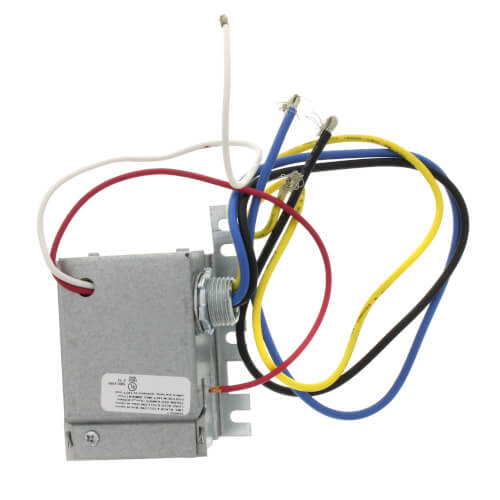

White-Rodgers 24A05Z-1 Electric Heat Relay 60 Hz Input 45 Second Delay 277 VAC SPST Normally Open

Product Description

The White-Rodgers 24A05Z-1 Electric Heat Relay is a reliable component designed for low voltage control of electric heating systems. It is used in various commercial and industrial applications to ensure precise temperature regulation and efficient operation.

• Silent operation for minimal noise
• Stable and precise temperature control
• 45-second delay to prevent nuisance cycling

Product Highlights

The White-Rodgers 24A05Z-1 Electric Heat Relay features an input voltage of 277 VAC and operates at 60 Hz. It provides single-pole, single-throw normally open contacts and incorporates a 45-second delay mechanism. This relay is ideal for electric heating systems in commercial buildings and industrial facilities, ensuring optimal performance and longevity.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 24A05Z-1

Technical Specifications

• Voltage: 277 VAC
• Frequency: 60 Hz
• Contact Type: SPST Normally Open
• Time Delay: 45 Seconds
• Mounting: Conduit hub or screw mounting
• Ambient Conditions: -20°F to 120°F
• Thermostat Current: 0.2A
• Wiring: 18 Leadwires
• A.C. Resistive: 6000W, 22A, 277V
• Depth: 2-7/16 inches
• Width: 4-1/2 inches
