Leuze 50130282 Kd S-M12-Ca-P1-050 Connection Cable

Product Description

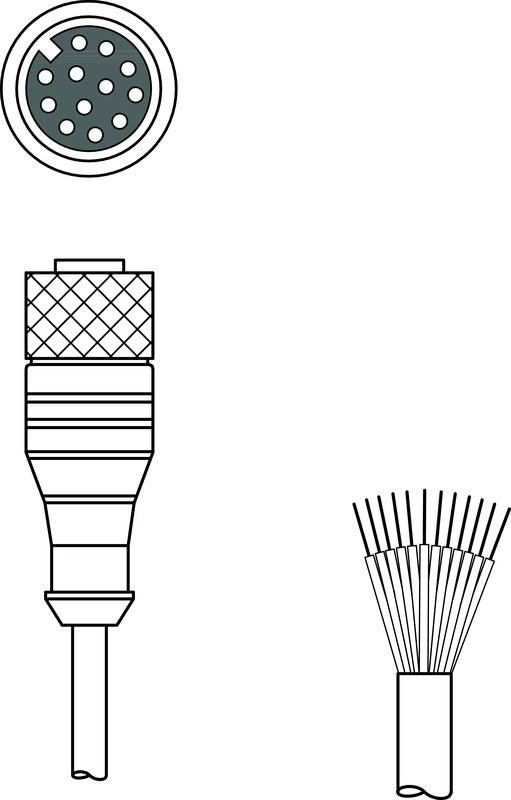

The Leuze 50130282 Kd S-M12-Ca-P1-050 connection cable is oil and lubricant resistant. This shielded cable features an open end type connection and a female M12 thread size. Constructed with a PUR sheathing material and PP wire insulation, it is suitable for drag chains. Operates at a max 30 V AC/DC.

• Oil and lubricant resistant
• Shielded and silicone-free
• Suitable for drag chains

Product Highlights

The Leuze 50130282 connection cable is ideal for applications requiring resistance to oil, lubricants, and chemicals, with a design that supports flexible and stationary use.

Product Information

Standard Information

• Brand: Leuze
• Manufacturer Part Number: 50130282
• Country of Origin: China

Technical Specifications

• Application: Oil and lubricant resistant
• Operating voltage: Max. 30 V AC/DC
• Type of connection: Open end
• Thread size: M12
• Type: Female
• No. of pins: 12 -pin
• Encoding: A-coded
• Version: Axial
• Connector, LED: No
• Lock: Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking
• Number of conductors: 12 Piece(s)
• Sheathing color: Black
• Shielded: Yes
• Silicone-free: Yes
• Cable length: 5,000 mm
• Sheathing material: PUR
• Wire insulation: PP
• Suitability for drag chains: Yes
• Traverse rate: Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s
• Properties of the outer sheathing: Free of CFC, cadmium, silicone, halogen and lead, matt, low-adhesion, abrasion-resistant, easily machine-processable
• Resistance of the outer sheathing: Hydrolysis and microbe resistant, good oil, gasoline and chemical resistance in accordance with VDE 0472 part 803 test B, flame retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
• Torsion suitability: ±30° / m (max. 2 mio. cycles with 35 cycles / min)
• Width across flats: 13 mm
• Bending cycles: 5,000,000 Piece(s)
• Bending radius, flexible laying, min.: Min. 10 x cable diameter
• Bending radius, stationary laying, min.: Min. 5 x cable diameter
• Ambient temperature, operation, flexible use: -25 ... 80 °C
• Ambient temperature, operation, stationary use: -40 ... 80 °C
• Degree of protection: IP 65, IP 67
