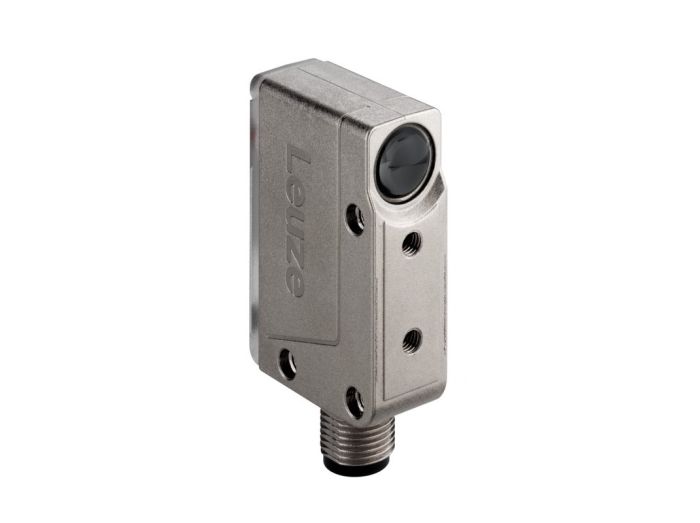

Leuze 50117361 PRK18B.T2/PX-M12 Polarized Retro-Reflective Photoelectric Sensor

Product Description

The Leuze 50117361 PRK18B.T2/PX-M12 is a polarized retro-reflective photoelectric sensor designed for detecting highly transparent objects like bottles, films, and glass panes. It features autocollimation and an operating range of 0 to 4 meters. The sensor uses a red LED light source with a 620 nm wavelength and has polarity reversal and short circuit protection. It operates on 10 to 30 V DC.

• Polarized retro-reflective photoelectric sensor
• Designed for detection of highly transparent objects
• Operating range up to 4 m (guaranteed)
• Metal housing made of diecast zinc

Product Highlights

This sensor is ideal for industrial applications requiring reliable detection of transparent materials.

Product Information

Standard Information

• Brand: Leuze
• Manufacturer Part Number: 50117361
• Country of Origin: Germany

Technical Specifications

• Series: PRK Series
• Operating principle: Reflection principle
• Application: Detection of highly transparent bottles, Detection of highly transparent films and glass panes
• Special version: Autocollimation
• Operating range: 0 ... 4 m
• Operating range limit: 0 ... 4.8 m
• Light source: LED
• Wavelength: 620 nm
• Transmitted-signal shape: Pulsed
• LED group: 1
• Protective circuit: Polarity reversal protection, Short circuit protected
• Supply voltage: 10 ... 30 VDC
• Current consumption, max.: 100 mA
• Residual ripple: 0 ... 15 %, From U B
• Open-circuit current: 0 ... 18 mA
• Number of digital switching outputs: 1 Piece(s)
• Switching element: Transistor, PNP
• Switching principle: Dark switching
• Switching frequency: 1,500 Hz
• Response time: 0.333 ms
• Readiness delay: 300 ms
• Number of connections: 1 Piece(s)
• Function: Signal OUT, Voltage supply
• Type of connection: Connector
• Thread size: M12
• Material: Metal
• No. of pins: 4 -pin
• Encoding: A-coded
• Housing material: Metal, Metal housing, Diecast zinc
• Lens cover material: Glass
• Housing color: Silver
• Type of fastening: Front mounting with thread, Through-hole mounting, Via optional mounting device
• Compatibility of materials: ECOLAB
• Type of display: LED
• Number of LEDs: 2 Piece(s)
• Operational controls: Multiturn potentiometer
• Ambient temperature, operation: -40 ... 60 °C
• Ambient temperature, storage: -40 ... 70 °C
• Degree of protection: IP 67, IP 69K
• Protection class: III
• Approvals: c UL US
• Standards applied: IEC 60947-5-2
• Customs tariff number: 85365019
• ECLASS 5.1.4: 27270902
• ECLASS 8.0: 27270902
• ECLASS 9.0: 27270902
• ECLASS 10.0: 27270902
• ECLASS 11.0: 27270902
• ECLASS 12.0: 27270902
• ECLASS 13.0: 27270902
• ECLASS 14.0: 27270902
• ECLASS 15.0: 27270902
• ECLASS 16.0: 27270902
• ETIM 5.0: EC002717
• ETIM 6.0: EC002717
• ETIM 7.0: EC002717
• ETIM 8.0: EC002717
• ETIM 9.0: EC002717
• ETIM 10.0: EC002717
• Connection: M12, Straight
• NPN or PNP: PNP (Source)
• Light On/Dark On: See Spec or N/A
• Sensing Method: Retroreflective
• Type of Photoelectric: General Purpose Photoelectric
• All - Specific Ratings: IP67, IP69K
• Size: 45mm
• Frequency: 1,500 Hz
• Power Type: DC
• Beam Type: Visible Red
• Max Range: 15.74 '
• Voltage: 10-30 VDC
• Nominal Voltage: 12 VDC, 24 VDC
• Connection Type: 4 Pin M12 Connector
• Operating Mode: Dark On
• Output Type: PNP
• Max Load Current: 0.1 A
• Composition: Metallic
• Protection Rating: IP67, IP69K
• Sense Transparent Media: Yes
