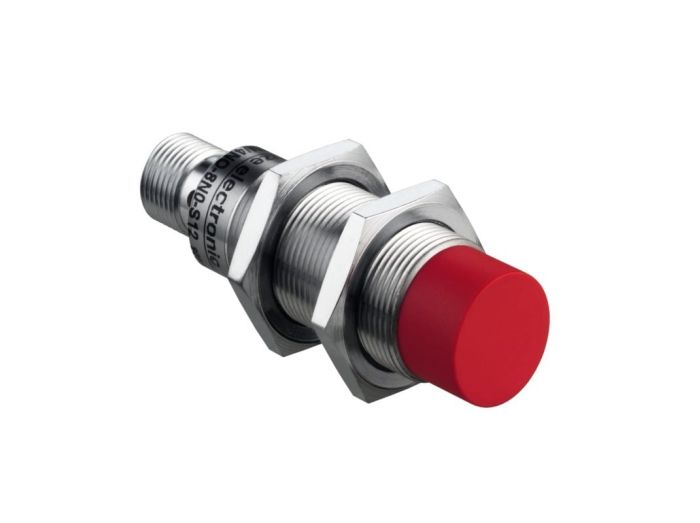

Leuze 50109710 ISS 218MM/4NO-20N-S12 Inductive Switch

Product Description

The Leuze 50109710 ISS 218MM/4NO-20N-S12 is an inductive switch from the 218 series with a cylindrical, 18 mm design. It features a typical operating range limit of 20 mm and operates on DC voltage. The sensor is easily integrated and can be mounted at a greater distance from moving parts. It is housed in a sturdy all-metal housing for permanent operation.

• Compact design in an M18 housing
• Wide spectrum of available scanning ranges
• High sensitivity for close-range detection of small parts
• Sturdy all-metal housing for permanent operation

Product Highlights

This Leuze inductive switch offers reliable performance in a compact and durable design, suitable for various industrial applications.

Product Information

Standard Information

• Brand: Leuze
• Manufacturer Part Number: 50109710
• Country of Origin: United States

Technical Specifications

• Series: 218
• Typ. operating range limit Sn: 20 mm
• Operating range Sa: 0 ... 16.2 mm
• MTTF: 480 years
• Protective circuit: Inductive protection, Polarity reversal protection, Short circuit protected
• Supply voltage UB: 10 ... 30 V, DC
• Residual ripple: 0 ... 20 %, From UB
• Open-circuit current: 0 ... 10 mA
• Temperature drift, max. (in % of Sr): 10 %, Over the entire operating temperature range
• Repeatability, max. (in % of Sr): 5 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C
• Switching hysteresis: 10 %
• Number of digital switching outputs: 1 Piece(s)
• Voltage type: DC
• Switching current, max.: 200 mA
• Residual current, max.: 0.1 mA
• Voltage drop: ≤ 2 V
• Switching element: Transistor, PNP
• Switching principle: NO (normally open)
• Switching frequency: 500 Hz
• Readiness delay: 50 ms
• Number of connections: 1 Piece(s)
• Function: Signal OUT, Voltage supply
• Type of connection: Connector
• Thread size: M18 x 1 mm
• Type: Male
• Material: Metal
• No. of pins: 4 -pin
• Encoding: A-coded
• Design: Cylindrical
• Dimension (Ø x L): 18 mm x 48.5 mm
• Type of installation: Non-embedded/non-flush
• Housing material: Metal
• Metal housing: Chromed brass
• Sensing face material: Plastic, Polybutylene (PBT)
• Net weight: 31.8 g
• Type of fastening: Mounting thread, Via optional mounting device
• Standard measuring plate: 60 x 60 mm², Fe360
• Type of display: LED
• Number of LEDs: 1 Piece(s)
• Ambient temperature, operation: -25 ... 70 °C
• Ambient temperature, storage: -25 ... 70 °C
• Degree of protection: IP 67
• Protection class: II
• Approvals: c UL US
• Test procedure for EMC in accordance with standard: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4
• Standards applied: IEC 60947-5-2
• Product Series: IS 218
• Family Series: Leuze Inductive Proximity, IS 218 Series
• Description: ISS 218MM/4NO-20N-S12, Inductive switch
• Power Type: DC
• Range: 16.2 mm
• Connection Type: 4 Pin M12 Connector
• Output Type: NO PNP
• Composition: Metallic
• Voltage: 10-30 VDC
• Nominal Voltage: 12 VDC, 24 VDC
• Sensing Type: End
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes
• Max Load Current: 0.2 A
