Leuze 50109640 Is 208Mm/4No-1E5-S8.3 Inductive Switch

Product Description

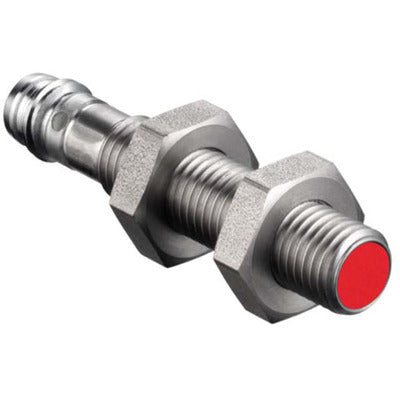

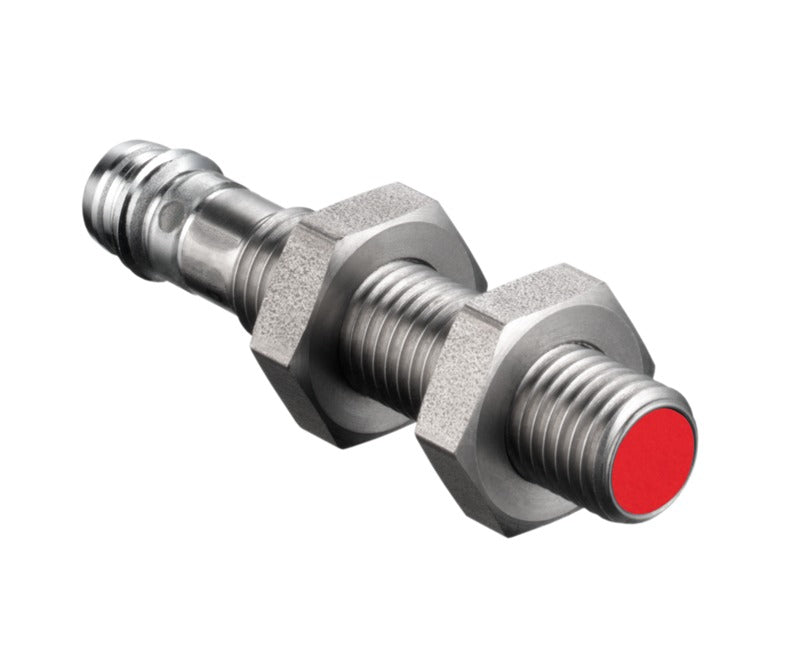

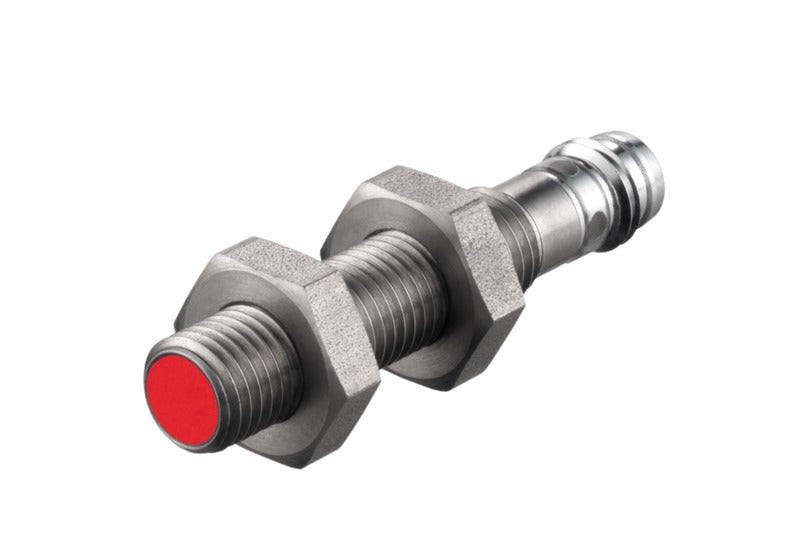

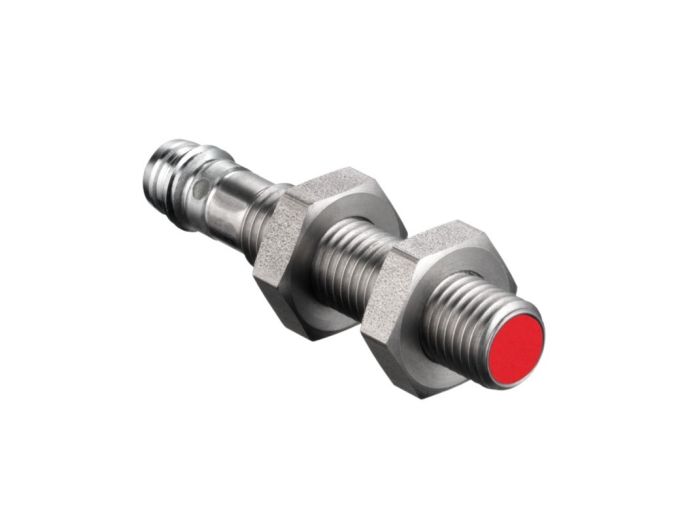

The Leuze 50109640 IS 208Mm/4No-1E5-S8.3 is an inductive switch with a cylindrical design. This standard sensor can be custom-integrated in applications. It operates on 10-30V DC and has a switching frequency of 5000 Hz. The sensor is made with a stainless steel housing and is IP 67 rated.

• Small standard sensor can be custom-integrated in applications.
• Large scanning ranges allow you to choose a smaller construction and thus save space and costs for the mechanical machine parts
• Sensor can be mounted at a greater distance from moving parts to avoid damage and ensures the machine availability

Product Highlights

The Leuze inductive switch is an inexpensive solution for special applications, such as close-range detection of small parts.

Product Information

Standard Information

• Brand: Leuze
• Manufacturer Part Number: 50109640

Technical Specifications

• Series: 208
• Type. operating range limit S\nn: 1.5 mm
• Operating range S\na: 0 ... 1.2 mm
• MTTF: 900 years
• Protective circuit: Inductive protection
• Polarity reversal protection: Yes
• Short circuit protection: Yes
• Supply voltage U\nB: 10 ... 30 V, DC
• Residual ripple: 0 ... 20 %, From U\nB
• Open-circuit current: 0 ... 10 mA
• Temperature drift, max. (in % of S\nr): 10 %, Over the entire operating temperature range
• Repeatability, max. (in % of S\nr): 5 %, For UB = 20 30 V DC, ambient temperature Ta = 23
