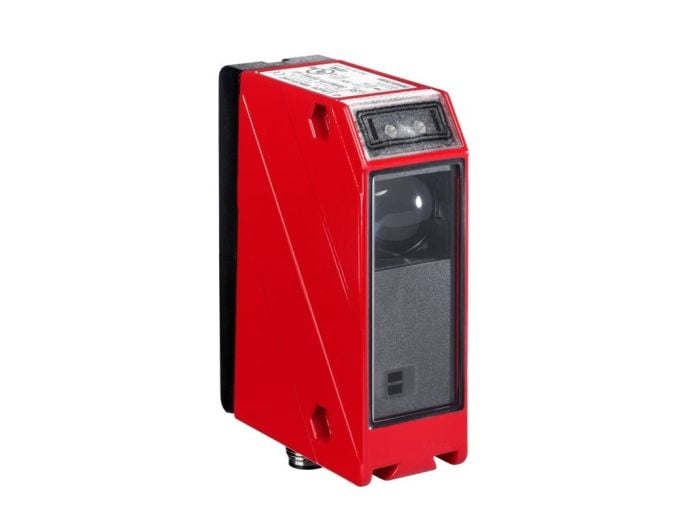

Leuze 50103290 LSS 96M-1090-43 Throughbeam Photoelectric Sensor Transmitter

Product Description

The Leuze 50103290 LSS 96M-1090-43 is a throughbeam photoelectric sensor transmitter designed for use in industrial automation. This device features an activation input and heating capabilities. It operates on a supply voltage of 10 to 30V DC and utilizes LED infrared light source. The sensor has an operating range of 0 to 120 meters.

• Operating principle: Throughbeam principle
• Light source: LED, Infrared
• Special version: Activation input, Heating

Product Highlights

Ideal for applications requiring reliable object detection over long distances, even in challenging environmental conditions.

Product Information

Standard Information

• Brand: Leuze
• Manufacturer Part Number: 50103290
• Country of Origin: US

Technical Specifications

• Series: 96
• Operating principle: Throughbeam principle
• Device type: Transmitter
• Special version: Activation input, Heating
• Operating range: 0 ... 120 m (guaranteed operating range)
• Operating range limit: 0 ... 150 m (typical operating range)
• Light source: LED, Infrared
• Supply voltage: 10 ... 30 V, DC
• Residual ripple: 0 ... 15 %, From UB
• Open-circuit current: 0 ... 50 mA
• Number of activation inputs: 1 Piece(s)
• Type: Activation input
• Number of connections: 1 Piece(s)
• Type of connection: Connector
• Thread size: M12
• Material: Metal
• No. of pins: 4 -pin
• Encoding: A-coded
• Housing material: Metal
• Metal housing: Zinc
• Lens cover material: Glass
• Type of display: LED
• Ambient temperature, operation: -35 ... 55 °C
• Degree of protection: IP 67
• Protection class: II
• Approvals: c UL US
• Standards applied: IEC 60947-5-2
• Power Type: DC
• Beam Type: Infrared
• Max Range: 492.12 '
• Optimum Range: 393.7 '
• Voltage: 10-30 VDC
• Nominal Voltage: 12 VDC, 24 VDC
• Connection Type: 4 Pin M12 Connector
• Max Load Current: 0.1 A
• Package Style: Cubic
• Composition: Metallic
• Protection Rating: IP67, IP69K
• Frequency: 500 Hz
• Brand: LEUZE
• Condition: New
