Leuze 50081325 Photoelectric Sensors Series PRK 96K/N-1380-46

Product Description

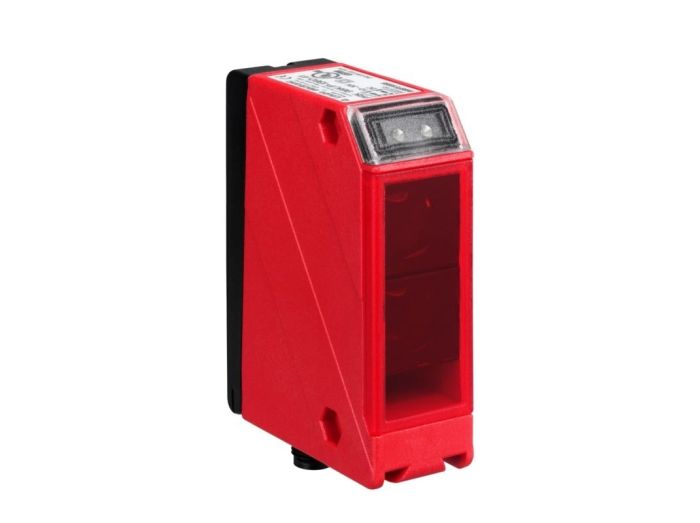

The Leuze 50081325 photoelectric sensor, series PRK 96K/N-1380-46, is a polarized retro-reflective sensor with a visible red beam. It operates on DC power with a voltage of 10-30 VDC. The sensor features a 4 Pin M12 connector and offers both dark on and light on operating modes. The non-metallic composition provides IP67 protection.

• Polarized retro-reflective photoelectric sensor
• Operating modes: Dark On, Light On
• Protection Rating IP67

Product Highlights

The Leuze 50081325 photoelectric sensor is ideal for object detection in automated systems, providing reliable performance with its polarized optics and durable construction.

Product Information

Standard Information

• Brand: Leuze
• Manufacturer Part Number: 50081325

Technical Specifications

• Manufacturer Part Number: 50081325
• Manufacturer: Leuze
• Family Series: Leuze Photoelectric Sensors
• Description: PRK 96K/N-1380-46, Polarized retro-reflective photoelectric sensor
• Power Type: DC
• Beam Type: Visible Red
• Max Range: 32.8 '
• Voltage: 10-30 VDC
• Nominal Voltage: 12 VDC, 24 VDC
• Connection Type: 4 Pin M12 Connector
• Operating Mode: Dark On, Light On
• Output Type: NPN
• Max Load Current: 0.1 A
• Composition: Non-Metallic
• Protection Rating: IP67
• Frequency: 1,000 Hz
• Polarization Filter: Yes
• Approvals: CE, cULus
• Protection Class: IP 67/ IP 69K
• Housing Material: Robust metal housing with glass cover or plastic housing
• Light Source: Visible red light or infrared light
