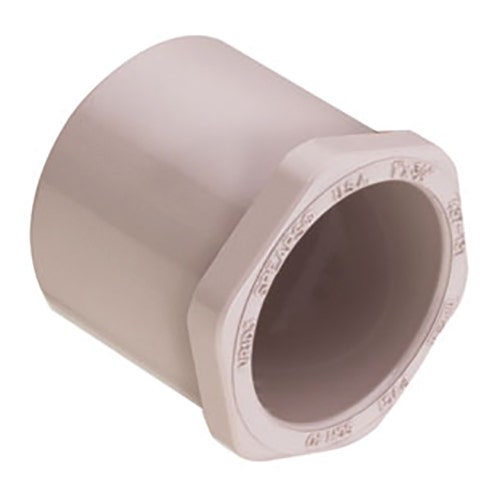

Lesso UV437-210 Sch 40 Pvc Bushing 1-1/2 X 3/4 in Sxs

Product Description

The LESSO UV437-210 is a Schedule 40 PVC spigot-by-socket (SxS) reducing bushing rated for UV resistance, designed to reduce a 1-1/2-inch socket fitting down to a 3/4-inch spigot connection. This bushing is manufactured from UV-resistant PVC compound, making it suitable for exposed outdoor installations where standard PVC would degrade from sunlight exposure. It follows Schedule 40 pressure ratings and is a standard component used by plumbers and irrigation technicians when transitioning between pipe sizes within a PVC piping system. At 0.11 pounds, it is a lightweight fitting that installs quickly with standard PVC solvent cement.

This bushing is intended for residential and light commercial plumbing, pool and spa piping, and irrigation systems where a 1-1/2-inch to 3/4-inch size reduction is required. The SxS configuration means the 1-1/2-inch end accepts a spigot while the 3/4-inch end accepts a socket, allowing it to seat directly into a fitting hub. The UV-resistant formulation makes it a practical choice for above-ground runs, exposed pool equipment pads, and outdoor irrigation manifolds where sunlight exposure is unavoidable.

Key Features

• UV-resistant PVC compound rated for outdoor and exposed-installation use
• Schedule 40 wall thickness for standard pressure-rated plumbing applications
• SxS end configuration — 1-1/2-inch spigot end fits into a 1-1/2-inch socket fitting hub
• Reduces from 1-1/2 inches to 3/4 inches for common pipe size transitions
• Lightweight at 0.11 pounds for easy handling in tight installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 40 PVC piping systems requiring a 1-1/2-inch to 3/4-inch SxS reducing bushing in UV-exposed environments.

Installation Notes

Installation should be performed by a licensed plumber or qualified irrigation technician in accordance with applicable local plumbing codes. Shut off system pressure and drain the line before cutting into any existing piping. Clean and dry both the spigot and socket mating surfaces, then apply a compatible PVC primer followed by Schedule 40 PVC solvent cement per the cement manufacturer's instructions. Allow full cure time before restoring system pressure.

Technical Specifications

• Material: UV-resistant PVC
• Schedule: Schedule 40
• Connection Type: Spigot x Socket (SxS)
• Inlet Size: 1-1/2 inches
• Outlet Size: 3/4 inches
• Weight: 0.11 pounds
• UPC: 848154058177

Standard Information

• Brand: LESSO
• Manufacturer Part Number: UV437-210
