Lesso UV437-131 Sch 40 Pvc Bushing 1x3/4 in Sxs

Product Description

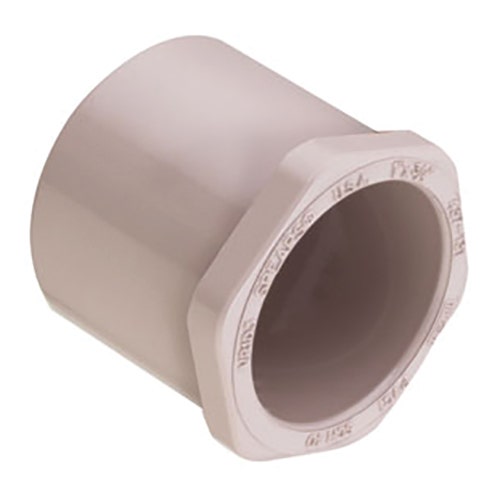

The LESSO UV437-131 is a Schedule 40 PVC reducing bushing rated for UV exposure, designed to transition a 1-inch spigot connection down to a 3/4-inch socket connection. It is manufactured from UV-resistant PVC compound, making it suitable for above-ground and outdoor plumbing installations where direct sunlight exposure is a factor. Plumbers and pipefitters install this bushing when reducing pipe size within a solvent-welded PVC system. The spigot-by-socket (SxS) end configuration allows the bushing to slip into a 1-inch fitting hub while accepting a 3/4-inch pipe or fitting on the outlet end.

This bushing is used in residential and light commercial plumbing, irrigation, and pool and spa piping systems where a size reduction from 1 inch to 3/4 inch is required. The UV-resistant formulation makes it well suited for exposed outdoor runs, including above-grade irrigation manifolds, poolside plumbing, and exterior utility lines. It is installed as part of a solvent-welded Schedule 40 PVC system and is appropriate wherever code permits Schedule 40 PVC for the application.

Key Features

• UV-resistant PVC construction for outdoor and above-ground service
• Schedule 40 wall thickness for standard-duty pressure applications
• Spigot x Socket (SxS) end configuration enables inline size reduction
• Reduces from 1-inch to 3/4-inch within a solvent-weld system
• Order increment of 1 allows single-unit purchasing

Compatibility

Designed as an OEM-style drop-in for Schedule 40 PVC solvent-weld piping systems requiring a 1-inch to 3/4-inch reducing bushing in UV-exposed service environments.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter using standard PVC primer and solvent cement per the fitting and cement manufacturer instructions, as well as applicable plumbing code requirements such as the IPC or local equivalents. Ensure mating pipe and fitting surfaces are clean, dry, and deburred before applying primer and cement. Do not apply flame or heat to solvent-weld PVC fittings. Allow full cure time before pressurizing the system.

Technical Specifications

• Schedule: Schedule 40
• Material: UV-Resistant PVC
• Inlet Size: 1 inch (Spigot)
• Outlet Size: 0.75 inch (Socket)
• End Configuration: Spigot x Socket (SxS)
• Weight: 0.03 pounds
• UPC: 848154058146

Standard Information

• Brand: LESSO
• Manufacturer Part Number: UV437-131
