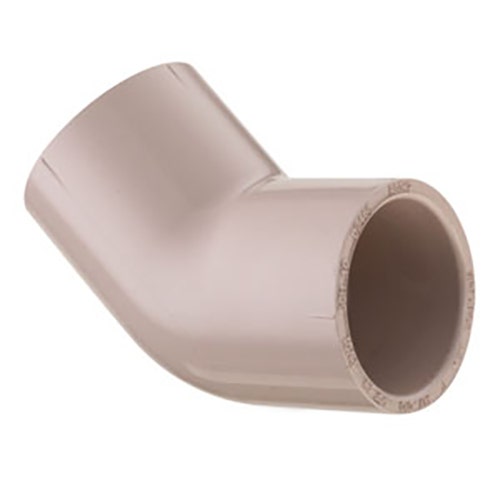

Lesso UV417-012 Sch 40 Pvc 45 Elbow 1-1/4 in Sxs

Product Description

The LESSO UV417-012 is a 1-1/4 inch Schedule 40 PVC 45-degree elbow with socket-by-socket (SxS) ends, rated for UV-resistant service. This fitting redirects flow at a 45-degree angle in pressure piping systems and is manufactured from UV-stabilized PVC compound designed to resist degradation from prolonged sun exposure. Plumbers and pipe fitters install this elbow in residential and light commercial piping runs where a gradual change in direction is required. At 0.17 pounds, it is lightweight for handling and transit in the field. The Schedule 40 wall thickness meets standard pressure ratings for cold-water supply, irrigation, and general fluid conveyance applications.

This elbow is used in above-ground and exposed piping installations where UV exposure is a concern, including outdoor irrigation systems, pool and spa plumbing, and other surface-mounted cold-water runs. The UV-resistant formulation makes it a better choice than standard PVC fittings in applications where sunlight contact is unavoidable or frequent. It accepts standard 1-1/4 inch Schedule 40 PVC pipe in both sockets and is solvent-welded in place following ASTM D2564 procedures.

Key Features

• UV-resistant PVC construction for above-ground and sun-exposed installations
• 45-degree sweep angle for gradual flow direction change with lower pressure drop than a 90-degree elbow
• Socket-by-socket (SxS) ends accept standard 1-1/4 inch Schedule 40 PVC pipe
• Schedule 40 wall thickness for standard-pressure cold-water and irrigation service
• Lightweight at 0.17 pounds for easy handling on the job

Compatibility

Designed as an OEM-style replacement or new-install fitting compatible with 1-1/4 inch Schedule 40 PVC piping systems using solvent-weld socket connections.

Installation Notes

Installation is performed by licensed plumbers or qualified pipe fitters following applicable IPC and local plumbing codes. Shut off and depressurize the supply line before cutting into any existing piping. Clean and dry both the pipe end and fitting socket, apply PVC primer, then solvent cement per ASTM D2564 before assembling and holding the joint for the manufacturer-recommended set time. Do not use this fitting on hot-water lines or with solvents, compressed air, or gases.

Technical Specifications

• Pipe Size: 1-1/4 inches
• End Configuration: Socket x Socket (SxS)
• Elbow Angle: 45 degrees
• Schedule: Schedule 40
• Material: UV-resistant PVC
• Weight: 0.17 pounds
• UPC: 848154057828

Standard Information

• Brand: LESSO
• Manufacturer Part Number: UV417-012
