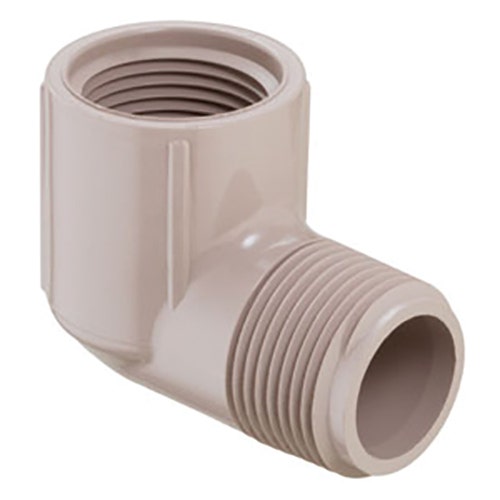

Lesso UV412-005 Pvc Street 90 Elbow 0.5 Inch Sch 40

Product Description

The LESSO UV412-005 is a 1/2 inch Schedule 40 PVC street 90-degree elbow with a TxT (socket x spigot) end configuration. It is rated for UV-resistant service, making it suitable for exposed outdoor plumbing runs where standard PVC would degrade under prolonged sunlight. The street design — one socket end and one spigot end — allows direct connection to another fitting without a short nipple, reducing overall assembly length. Licensed plumbers and irrigation contractors select this fitting for its clean fit and compatibility with standard Schedule 40 solvent-weld systems.

This fitting is used in residential and light commercial plumbing, irrigation, and pool or spa piping where a 90-degree directional change is needed in a 1/2 inch line. The UV-resistant compound makes it a practical choice for above-grade outdoor installations, including exposed supply lines, surface-run irrigation laterals, and poolside equipment plumbing. It follows standard Schedule 40 dimensional tolerances for solvent-weld assembly.

Key Features

• UV-resistant PVC compound rated for outdoor, exposed-sun installations
• Street configuration (one socket, one spigot) eliminates the need for an additional coupling or nipple
• 90-degree turn in a compact body reduces installed length
• Schedule 40 wall thickness meets standard pressure ratings for cold-water plumbing and irrigation service
• TxT end connection is compatible with standard Schedule 40 solvent-weld fittings and pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2 inch Schedule 40 PVC solvent-weld piping systems.

Installation Notes

Installation is performed by licensed plumbers or qualified irrigation technicians using standard PVC primer and solvent cement per the fitting manufacturer's instructions and applicable IPC or local plumbing code requirements. Shut off and depressurize the line before cutting into any existing piping. Allow full cure time for solvent-weld joints before pressurizing the system. Do not use this fitting with threaded connections or compression fittings without an appropriate adapter.

Technical Specifications

• Pipe Size: 0.5 inches
• End Connection: TxT (Socket x Spigot)
• Fitting Angle: 90 degrees
• Schedule: Schedule 40
• Material: UV-Resistant PVC
• Weight: 0.05 pounds
• UPC: 848154057774
• Order Increment: 1

Standard Information

• Brand: LESSO
• Manufacturer Part Number: UV412-005
