Lesso UV406-015 Sch 40 Pvc 90 Elbow 1.5in Sxs Uv Resistant

Product Description

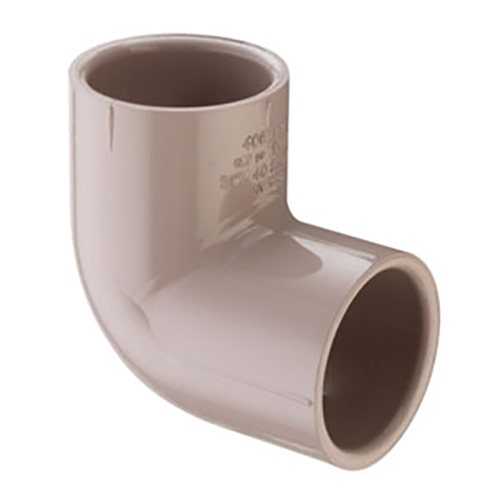

The LESSO UV406-015 is a 1-1/2 inch Schedule 40 PVC 90-degree elbow with socket-by-socket (SxS) end connections and UV-resistant construction. It is designed to change flow direction in pressurized PVC piping systems while withstanding prolonged sun exposure without degrading. Typical installers include licensed plumbers and irrigation technicians working on above-ground or exposed-run systems. At 1-1/2 inches nominal pipe size, it fits standard Sch 40 PVC pipe and solvent-welded fittings of the same diameter and pressure class.

This elbow is suited for residential and light commercial plumbing, irrigation, pool and spa equipment hookups, and other above-ground applications where ultraviolet exposure is a concern. The UV-resistant formulation makes it a practical choice when routing pipe along exterior walls, roof equipment pads, or other locations where standard gray or white PVC would chalk and weaken over time. It is not rated for applications requiring CPVC or high-temperature service.

Key Features

• UV-resistant PVC compound resists sun-related degradation in exposed outdoor installations
• Schedule 40 wall thickness provides standard pressure rating for residential and commercial service
• Socket-by-socket (SxS) ends accept solvent-weld connections to 1-1/2 inch Sch 40 PVC pipe
• 90-degree turn geometry for right-angle direction changes in tight equipment rooms or exterior runs
• Lightweight at 0.25 pounds, reducing load on hangers and supports in overhead runs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch Schedule 40 PVC piping systems using solvent-weld socket connections.

Installation Notes

Installation is performed by a licensed plumber or qualified irrigation technician following applicable IPC or local plumbing code requirements. Shut off and depressurize the line completely before cutting into an existing system. Use a compatible PVC primer and solvent cement rated for Sch 40 PVC; allow full cure time before pressurizing per the cement manufacturer instructions. Do not use this fitting with CPVC pipe or cement, and do not apply heat to reform or adjust the socket ends.

Technical Specifications

• Pipe Size: 1.5 inches
• Connection Type: Socket x Socket (SxS) solvent weld
• Elbow Angle: 90 degrees
• Schedule: Schedule 40
• Material: UV-resistant PVC
• Weight: 0.25 pounds
• UPC: 848154057613

Standard Information

• Brand: LESSO
• Manufacturer Part Number: UV406-015
